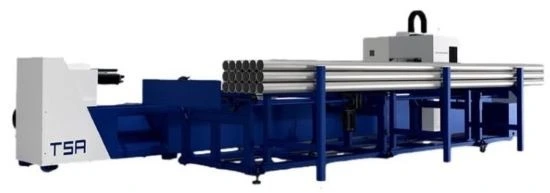

NEW HANS LASER MPS-T5A

HANS LASER (NEW) MODEL MPS-T5A
FIBER TUBE LASER CUTTING SYSTEM

- MPS-T5A TUBE CUTTER
- 3000W/6000W
- 0.59" - 8.66" MAX MACHINING RANGE
- 100R/MIN MAX SPEED OF CHUCK
- 330 LBS(=25KG/M)
- =0.020"
UNLOAD TUBE LENGTH
- 240" SEMI-AUTOMATIC
- 256" MANUAL
- =3.15" TAILING LENGTH
- 110M/MIN POSITIONING SPEED

FEATURES
PUSH TYPE PIPE CUTTING MODE
IMPROVE PROCESSING EFFICIENCY
INDEPENDENT RESEARCH AND DEVELOPMENT
OF HIGH-QUALITY PNEUMATIC CHUCK
THE MAIN BED IS BEND AND WELDED
W/HIGH-QUALITY PLATES, WITH STABLE STRUCTURE
PROFESSIONAL APPLICATION FOR CUTTING
0.60" - 8.27" METAL THIN-WALLED PIPE
IMPORTED SERVO MOTOR DRIVES TO ENSURE
HIGH PRECISION AND RELIABLE OPERATION
OF THE EQUIPMENT

FRONT CHUCK
- CHUCK SLIDING BLOCK IS PARTIALLY OPTIMZED
AND THE MAINTENANCE INTERVAL IS LONG
- PRECISION SLIDING BLOCK MOVEMENT MATCHING
HARDENING TREATMENT OF MOVING PARTS, WEAR
RESISTANCE, AND ACCURACY CONTROL ARE GUARANTEED
- SUPPORTING SPAN OF THE CLAW IS REASONABLE
THE RIGIDITY OF THE CLAW IS STRONG, AND THE
CLAMPING CENTER IS STABLE WHEN ROTATING
TO ENSURE THE PROCESSING ACCURACY PUSHING CHUCK
- THE STROKE OF THE REAR JAW IS 1.57" THEY KEYWAY
IS POSITIONED AND THE JAW IS EASY TO REPLACE
- STANDARD AIR BLOWING AND OPTIONAL DUST
EXTRACTION CHANNEL CAN EFFECTIVELY REDUCE DUST
ACCUMULATION AND JAMMING, AND THE MAINTENANCE IS SIMPLE
HAN'S CUTTING HEAD
- INTERNAL STRUCTURE OF THE LASER
HEAD IS COMPLETELY SEALED, WHICH CAN
THE OPTICAL PART FROM BEING POLLUTED BY DUST
- LASER HEAD ADOPTS TWO-POINTS CENTERING
ADJUSTMENT AND THE FOCUSING IS DRICEN BY AN IMPORTED
MOTOR, WHICH SIGNIFICANTLY IMRPOVES
THE EFFICIENCY IN PERFORMATION
- PROTECTION LENS IS INSTALLED IN A DRAWER
IN A DRAWER WHICH IS EASY TO REPLACE
- MODULAR DESIGN, HIGH PRECISION AND SIMPLE MAINTENANCE
- VARIOUS LASERS WITH QBH CONNECTOR CAN BE EQUIPPED
HAN'S FIBER LASER SOURCE
- GOOD BEAM QUALITY AND ELECTRO-OPTIC
CONVERSION EFFCIENCY ARE FAR HIGHER
THAN THOSE OF DOMESTIC PEERS
- LD IS A HIGH BRIGHTNESS AND QUALITY AND
AND ADOPTS CHIPS FROM WORLD-CLASS COMPANIES
- HIGH BRIGHTNESS, RESERVED WORK MARGIN
AND STABLE MARKET FEEDBACK
- POWER OUTPUTS IS STABLE ± 1% AND
PHOSPHORUS DOPED NON ATTENUATION GAIN FIBER IS USED
- POWER ATTENUATION CAUSED BY THE NON PHOTON
DARKENING EFFECT IS LESS THAN ±1% OF THE FULL POWER FLUCTUATION
- MAXIMUM MODULATION FREQUENCEY IS 50kHz
AND THE MODULATION FREQUENCY RANGE IS WIDE
- HIGH FREQUENCY PERFORATION OF STAINLESS STEEL
AND ALUMINUM ALLOY WITH A DIAMETER OF MORE THAN
0.39" IS FASTER AND FINE SHEET PROCESSING AND OTHER FIELDS
- STRONG ANTI HIGH REACTION ABILITY
HIGH PRESSURE NITROGEN CUTTING RED COPPER
- NO FEAR OF HIGH ANTI REFLECTIVE MATERIALS SUCH AS
COPPER AND ALUMINUM AND STABLE CUTTING FOR LONG TIME
REDUCE SUPPORT
- REDUCER SUPPORT STRUCTURE IS ISED FOR THE
FEEDING OF RAW MATERIALS AND THE SUPPORT OF LONG
WORK PIECES IN THE PROCESS OF LASER PIPE
CUTTING MACHINE PROFILE INSTEAD OF MANUAL FEEDING CONSOLE
- THE CONSOLE CAN ROTATE AT MULTIPLE
ANGLES, MAKING THE CONTROL MORE FLEXIBLE
- THE OPERATOR'S VISION IS BETTER AND THERE IS
NO NEED TO BE ON DUTY AT FIXED POINTS FSCUT3000S CONTROL SYSTEM
- SUPPORT THE REAL-TIME DEVIATION COMPENSATION OF
PIPE CORE, REDUCE THE CLAMPING REQUIREMENTS FOR PIPE
AND GREATLY IMPROVE THE PIERCING ACCURACY
- SUPPORT ANGLE STEEL AND CHANNEL STEEL CUTTING
- SUPPORT THE SETTING OF SEPARATE CORNER
PROCESS TO IMPROVE THE QUALITY OF PIPE CORNER CUTTING
- SUPPORT AUTOMATIC LOADING AND UNLOADING
AND CYCLE PROCESSING AND SUPPORT STANDARD AUTOMATIC
FEEDING ACTION
- OPEN LOOP CONTROL SYSTEM ADOPTS
THE FIFTH GENERATION MOTION CONTROL ALGORITHM OF FRIENDNESS
- SUPPORT ENCODER REAL-TIME FEEDBACK,
AND ADD ERROR MEASUREMENTS TOOLS TO FACILITATE THE
ACQUISITION OF MACHINE TOOL MOTION PARAMETERS

SPECIFICATION OF PROCESSING MATERIALS
- .59" - 8.66" ROUND
- .59"*.59" - 5.90"*5.90" SQUARE
- .59"* .59" - 5.90*-2.95" RECTANGULAR
- .59"= EXCIRCLE DIAMETER =8.66" ELLIPTICAL TUBE
(CUSTOMERIZED JAW ARE REQUIRED FOR SPECIAL SPECIFICATIONS)
- .59" = EXCIRCLE DIAMTER =8.66" PROFILED TUBE
(CUSTOMERIZED JAW ARE REQUIRED FOR SPECIAL SPECIFICATIONS)
- .59" - 3.93" MAXIMUM 10 U-BAR
(CUSTOMERIZED JAW ARE REQUIRED FOR SPECIAL SPECIFICATIONS)
- .59 - 3.93" MAXIMUM 10 I-BEAM/H-BEAM
(CUSTOMERIZED JAW ARE REQUIRED FOR SPECIAL SPECIFICATIONS)
- .59" - 3.93" MAXIMUM 10 EQUAILATERAL ANGLE SHEAR
(CUSTOMERIZED JAW ARE REQUIRED FOR SPECIAL SPECIFICATIONS)
- .59" - 3.93" MAXIMUM 10 UNEQUAL ANGLE STEEL
(CUSTOMERIZED JAW ARE REQUIRED FOR SPECIAL SPECIFICATIONS)

OPTIONS AVAILABLE - PRICE ON REQUEST
- SEMI-AUTOMATIC FEEDING
- AUXILIARY BLANKING DEVICE
- ANTI-SLAY DEVICE
Power: 380 (3-Phase)
