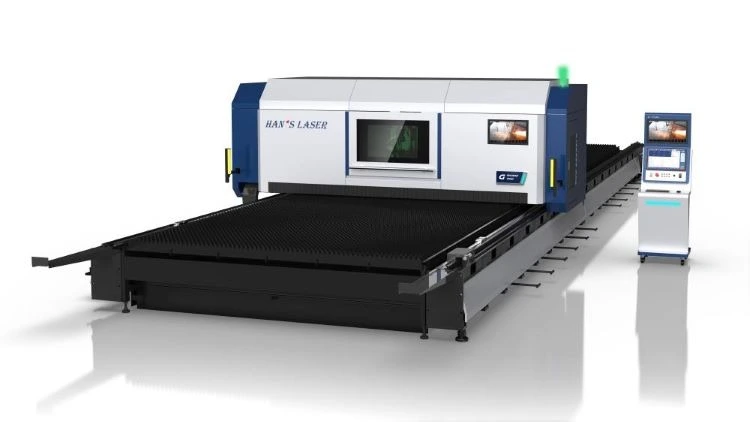

NEW HANS LASER G32035S PRO-G

HANS LASER (NEW) MODEL G32035S-PRO-G
FIBER LASER 30KW HANS RESONATOR

105' 3" X 11' 9" SHEET
30 KW HANS FIBER RESONATOR WITH WATER CHILLER
1263" X AXIS (32,100 MM)
141" Y AXIS (3600 MM)
13" Z AXIS (350 MM)
+/- 0.0019" X AND Y AXIS POSITION ACCURACY (.05 MM)
+/- 0.0019" X AND Y AXIS REPEATABILITY (0.05 MM)
+/- 0.1 DEGREE A AND B AXIS POSITIONING ACCURACY
3149" X/Y AXIS MAXIMUM POSITIONING SPEED
25,353 LB MAXIUMUM LOAD OF WORKBENCH
(11500KG/PC) (2.36" WHOLE PLATE (60 MM))

FEATURES
- HIGH SPEED FIBER LASER
CUTTING MACHINE - LASERSOURCE
- BEVEL CUTTING HEAD
- WATER CHILLER
- REGULATED POWER SUPPLY
- NESTING SOFTWARE
- WIRELESS HANDHELD BOX
- CNC SYSTEM
- PNEUMATIC SYSTEM
- TRANSMISSION SYSTEM
- CAPACITIVE VERTICAL TRACKING SYSTEM

OPTIONS INCLUDED
- DONALDSON DUST COLLECTOR (X2)
- HIGH PRESSURE AIR
- TRANSFORMER
