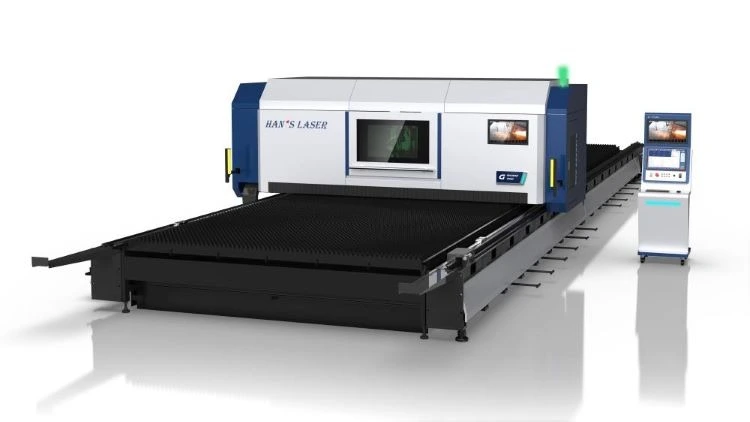

NEW HANS LASER G8030S-PRO-A

HANS LASER (NEW) MODEL G8030S-PRO-A
FIBER LASER 12KW HANS RESONATOR

26' 6" X 10' 2" SHEET
12 KW HANS FIBER RESONATOR WITH WATER CHILLER
318" X AXIS (8100 MM)
122" Y AXIS (3100 MM)
13" Z AXIS (350 MM)
+/- 0.0019" X AND Y AXIS POSITION ACCURACY (.05 MM)
+/- 0.0019" X AND Y AXIS REPEATABILITY (0.05 MM)
+/- 0.1 DEGREE A AND B AXIS POSITIONING ACCURACY
3149" X/Y AXIS MAXIMUM POSITIONING SPEED
25,353 LB MAXIUMUM LOAD OF WORKBENCH
(11500KG/PC) (2.36" WHOLE PLATE (60 MM))

FEATURES
- HIGH SPEED FIBER LASER
CUTTING MACHINE - LASERSOURCE
- 90 DEGREE CUTTING HEAD
- WATER CHILLER
- REGULATED POWER SUPPLY
- NESTING SOFTWARE
- WIRELESS HANDHELD BOX
- CNC SYSTEM
- PNEUMATIC SYSTEM
- TRANSMISSION SYSTEM
- CAPACITIVE VERTICAL TRACKING SYSTEM
- 2 YEAR PARTS LABOR WARRANTY

OPTIONS INCLUDED
- HIGH PRESSURE AIR CUTTING COMPRESSOR
- DONALDSON DUST COLLECTOR
- POWER STABILIZER
- POWER TRANSFORMER (SPECIFY VOLTAGE)
