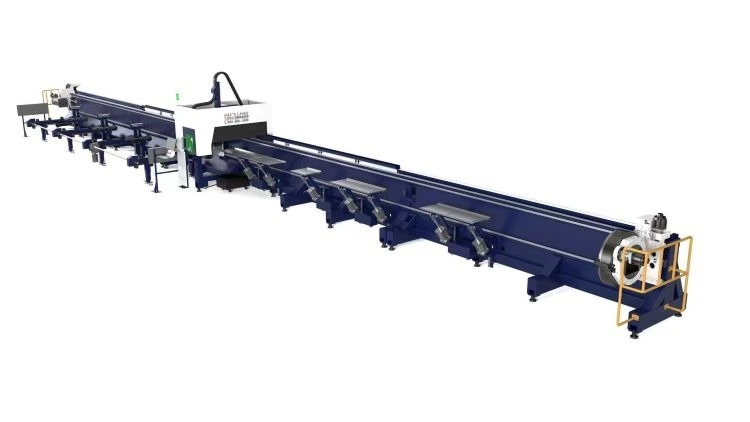

NEW HANS LASER TX12036T

HANS LASER (NEW) MODEL TX12036T
CNC LASER TUBE CUTTING MACHINE 12KW HANS

COMPONENTS
- TX12036T TUBE CUTTER
- 12,000 WATT HANS FIBER LASER
- LANTEK PIPE CUTTING SOFTWARE
- WATER CHILLER
- DUST COLLECTOR
- AIR COMPRESSOR
- TRANSFORMER
- VOLTAGE STABILIZER

SPECIFICATIONS
- 374" X - AXIS TRAVEL
- =16" Y - AXIS TRAVEL
- =14" Z - AXIS TRAVEL
MAX MACHINE RANGE
- 472" X 1.6" -14"
- 472" X 1.6" -14" 60 RPM
- 60 RPM MAX A/B/C AXIS POSITIONING ACCURACY
- ±0.020" X, Y, AXIS REPEATED POSITIONING ACCURACY
- 2,646 LBS MAX WEIGHT OF SINGLE TUBE FEEDING LENGTH
- 465" - 476" LOAD LENGTH
- 0 - 354" UNLOAD TUBE LENGTH
- 197'/MIN POSITIONING SPEED
- 380 VOLTS, 3 PHASE

OPTIONS AVAILABLE - PRICE ON REQUEST
- DONALDSON DUST COLLECTOR
- HIGH PRESSURE AIR CUTTING COMPRESSOR
- BEVEL CUTTING HEAD
- CUSTOM OUTFEED LENGTHS
Power: 380 (3-Phase)
