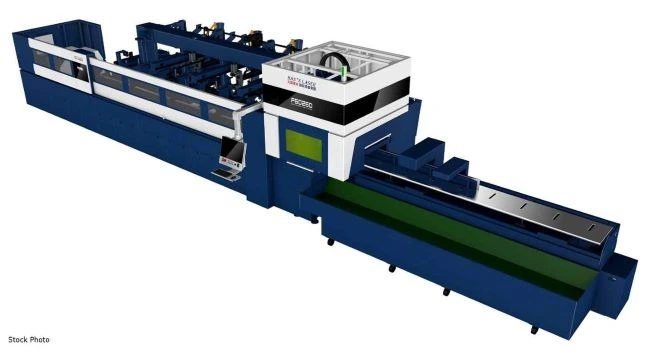

NEW HANS LASER P8026D - 12000W

HANS LASER (NEW) MODEL P8026D FIBER TUBE LASER 12KW HANS

265" TUBE
12KW HANS FIBER RESONATOR WITH WATER CHILLER
0.787" - 10.2" TUBE OD OR SQUARE
265.74" X AXIS
11" Y AXIS
9.45" Z AXIS
+/- 0.0012 X-Y AXIS POSITION ACCURACY
+/- 0.0012 X-Y AXIS REPEATABILITY
157" UNLOADING LENGTH
440 LB WORKTABLE LOAD
3937 IPM X AXIS SPEED / RAPID TRAVERSE
1.0 G FORCE ACCELERATION
AUTOMATIC BUNDLE LOADER - 26" X 18" MAX BUNDLE
IP54
HANS 701P CONTROLLER
17" TOUCHSCREEN
LANTEK ROTARY PROGRAM SOFTWARE - 1 SEAT
SIEMENS DRIVE AND SERVO SYSTEM
HANS LASER AUTO-FOCUS CUTTING HEAD
AUTO LUBRICATION SYSTEM
STRESS-RELIEVED FRAMES MACHINED AS 1 UNIT
VOLTAGE STABILIZER AND TRANSFORMER AS REQUIRED
DONALDSON DUST COLLECTOR - 6 FILTERS

CLASS 1 FDA CERTIFIED
2 YEARS PARTS AND LABOR WARRANTY

OPTIONS AVAILABLE - PRICE ON REQUEST
- 6KW HANS FIBER RESONATOR
- AIR COMPRESSOR SYSTEM UPGRADE
- 5-AXIS BEVEL HEAD
- SMALL TUBE OPTION
- SEMI-AUTOMATIC LOAD SYSTEM
- ADDITIONAL LANTEK SOFTWARE SEAT
- LANTEK SOFTWARE TRAINING
- UL LISTING CERTIFICATE FOR AUTOMATION
- UL LISTING CERTIFICATE FOR LASER
