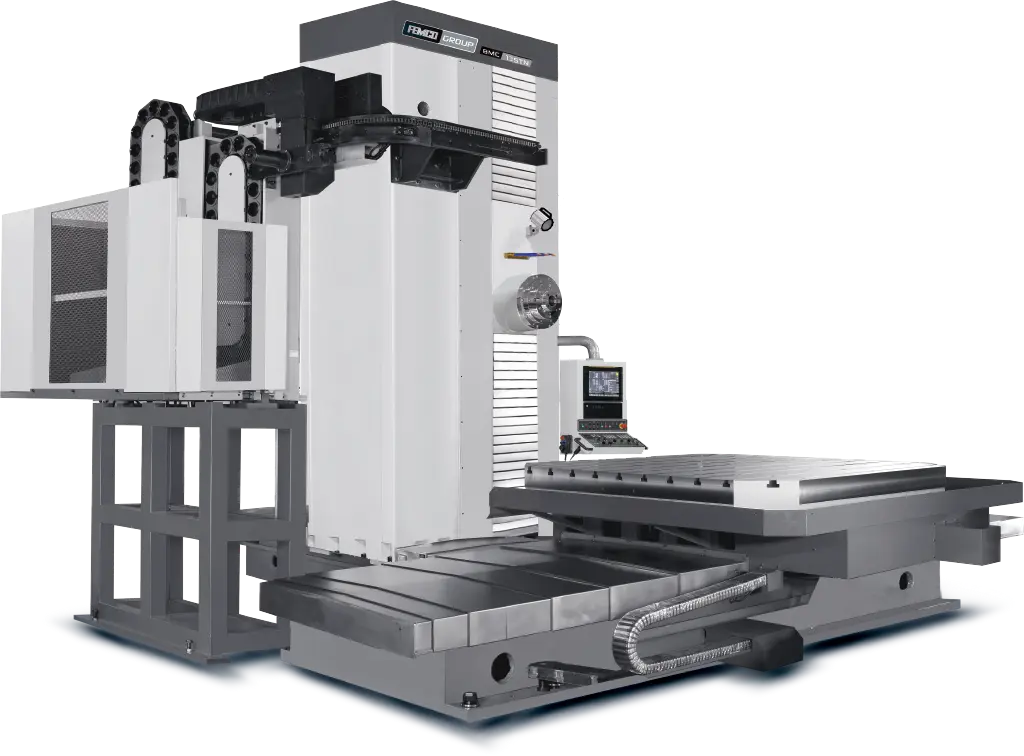

Heavy duty, large capacity T-Type Traveling Column CNC Horizontal Boring & Milling Machine comes standard with a 50 Taper, 50 HP Geared Head Spindle, Full B Axis Rotary Table, linear scales on X, Y & Z, chip conveyor and a Fanuc CNC control. The BMC-135TN has extended travels of 157.4” in the X-Axis and 98.42” in the Y-Axis as well as the long W-Axis Bar stroke of 29.1” with the very robust diameter of 5.31”.
Spindle Speed 3000 RPM (CT-50 Taper – 40/49 HP)
Through Spindle Coolant
60 Tool ATC
Full B-Axis Rotary Table (33,000 Lbs. Load Capacity)
Travels X, Y & Z-Axes: 157.4” x 98.42” x 78.74”
Travel W-Axis: 29.1”
| Spindle Size | 5.31" | 134.87 mm |
| X-Horiz Tvl of Table | 157.4" | 3,998 mm |
| Y-Vert Tvl of Head | 98.42" | 2,499.9 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Table-W | 86.61" | 2,199.9 mm |
| Table-L | 86.61" | 2,199.9 mm |
| Spindle Tvl. | 29.1" | 739.14 mm |
| Feed Range | 0 - 158 | 0 - 158 |
| Control | CNC (FANUC OI) | CNC (FANUC OI) |
| Dimensions | 355" x 394" x 224" | 355" x 394" x 224" |
| Weight | 74,753 Lbs | 74,753 Lbs |
This is a built to order machine. Please contact us for an initial specification review and detailed price proposal.
