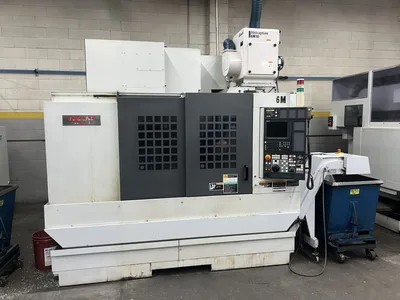

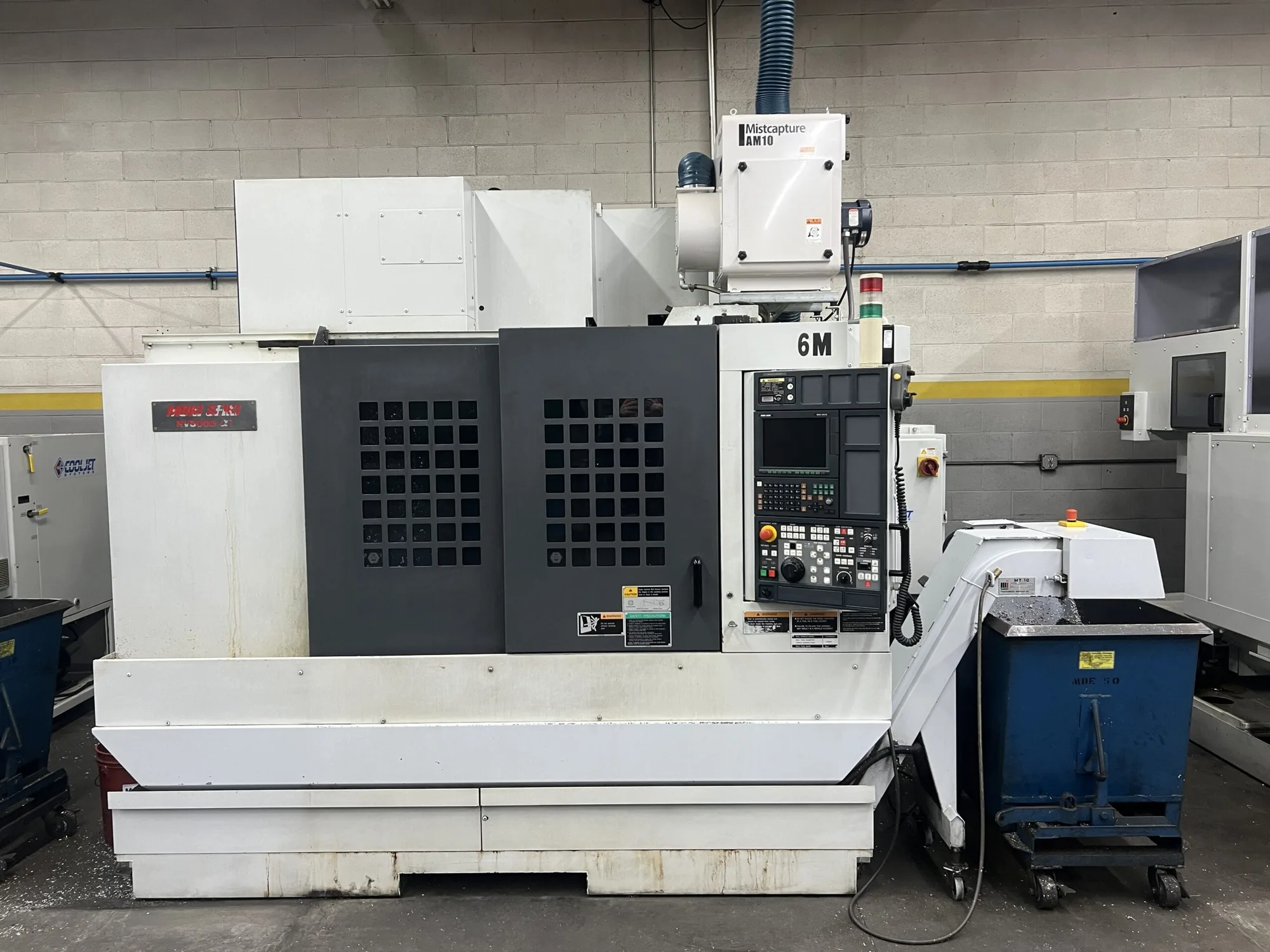

MORI SEIKI NV5000A Vertical Machining Center

MORI SEIKI NV5000A Vertical Machining Center
Manufacturer: MORI SEIKI
Manufacturer:
Model: NV5000A
Model:
Machine Type: CNC Vertical Machining Center
Machine Type:

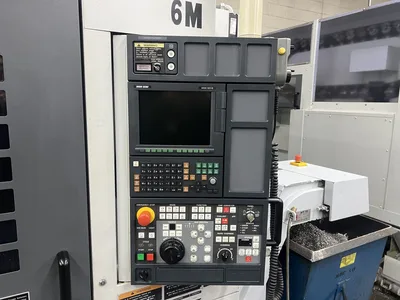

Control: Typically FANUC MSC-501 or equivalent CNC control
Control:
Key Specifications
X-Axis Travel: ~31.5″ (~800 mm)
X-Axis Travel:
Y-Axis Travel: ~20.1″ (~510 mm)
Y-Axis Travel:
Z-Axis Travel: ~20.1″ (~510 mm)
Z-Axis Travel:
Table Working Surface: ~43.3″ × 23.6″
Table Working Surface:
Max Table Load: ~2,640 lbs (~1,200 kg)
Max Table Load:
Spindle Taper: BT-40/CAT-40
Spindle Taper:
Max Spindle Speed: up to ~12,000 RPM
Max Spindle Speed:
Spindle Power: ~30 HP (~22 kW)
Spindle Power:
Automatic Tool Changer: ~30-position ATC
Automatic Tool Changer:
Rapid Traverse Rate: ~1,650 IPM (~42 m/min)
Rapid Traverse Rate:
Coolant System: Standard with chip conveyor
Coolant System:
Machine Weight: ~13,800–15,300 lbs depending on options
Machine Weight:
General Description
The MORI SEIKI NV5000A is a rugged industrial 3-axis CNC vertical machining center engineered for general milling and precision work. Typical features include a high-speed BT-40/CAT-40 spindle, automatic tool changer, coolant system, and chip conveyor — well suited for a range of production applications.
3-axis CNC vertical machining center
Notes to Buyers
Specifications above represent typical values for the NV5000A series; actual machine configuration, control model, and options (such as rotary tables, pallet changers, or probing) should be verified against unit photos and inspection prior to bidding.
typical values for the NV5000A series
