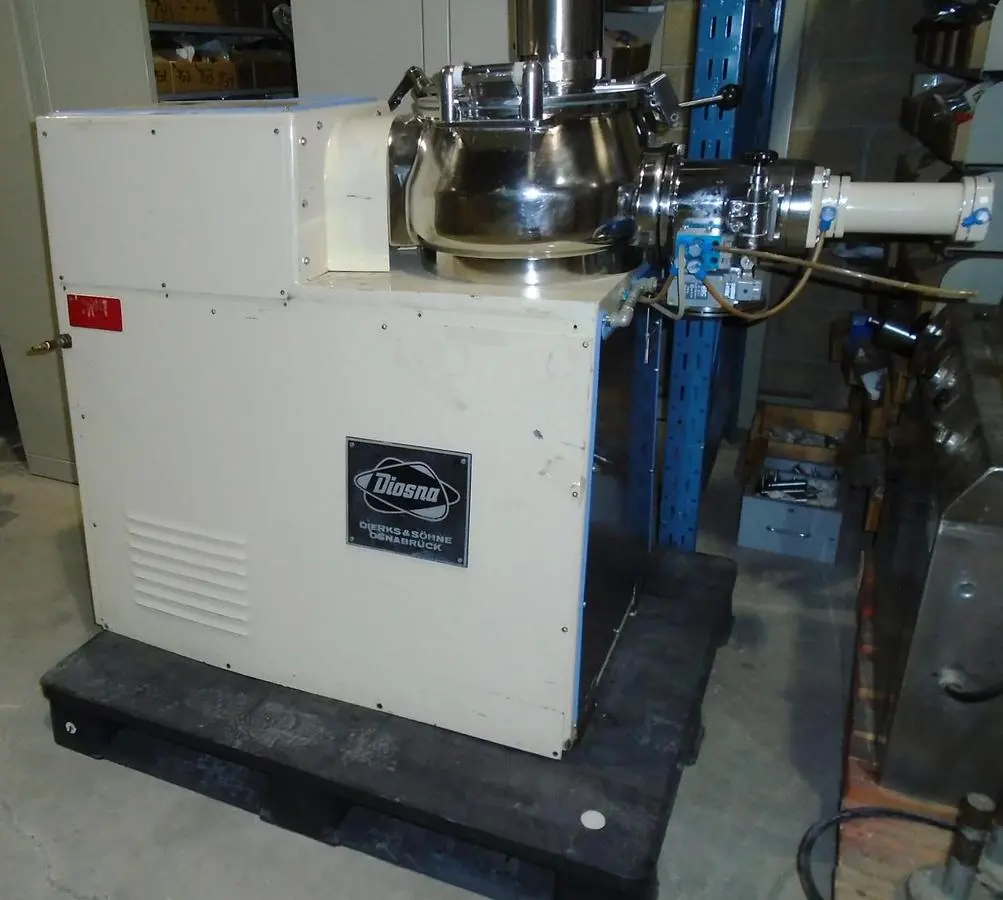

Used Diosna P25 High Shear Mixer Granulator

Used Diosna P25 High Shear Mixer Granulator.
Designed for intensive mixing and dispersing of material such as powder or granules; freeflowing materials including liquids can also be processed.
Specifically designed for use in development departments or small production.
• Batch capacity: Min. 8.0 kg - Max. 12.0 kg
• Total capacity: 25.0 L. (approx. 15-20+ Litre working capacity) (depending on the product/wet granulation)
• Equipped with:
1) Three blade impeller that rotates close to the base of the bowl, which being of a conical design, achieves an optimum mixing effect.
Driven by a two speed motor 1.5/2.2 kW at 62 RPM / 325 RPM
2 ) High-speed chopper mounted through the side of the chamber which ensures the formation of even granules.
Chopper avoids agglomeration & if product is wetted, assists in forming of even sized granules and fine distribution.
• The bowl is fitted with a hinged lid which is opened for charging the bowl with products.
Smaller quantities can be introduced through an opening in the lid during the mixing process.
• The mixing time can be pre-set.
• Finished product is discharged through a manually operated outlet the mixer continues to run during discharge.
• All contact parts are manufactured from Stainless Steel.
• Mixing bowl and the outlet are constructed from stainless steel; the machine frame is painted.
• The mixing assembly is mounted on a base which houses the main motor drive.

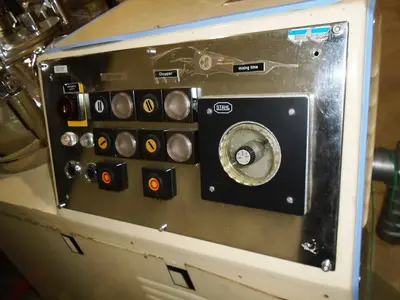

• Controls for the mixing bowl and incorporate control switches for mixing speed I/II and chopper as well as a timer.
• Electrical Installation: 3 Phase / 60 Hertz / 220 Volts, 20 Amps.
• Dimensions: 1550 x 700 x 1450mm
• Delivery Time: Immediate.
