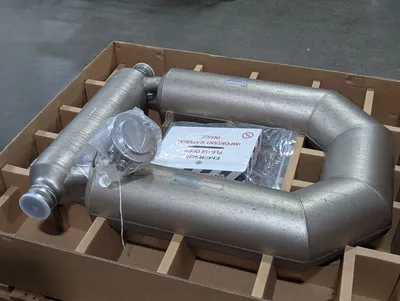

USED EMERSON CMF300M361N7BAEZZZ

Emerson Micro Motion Mass Flow Sensor

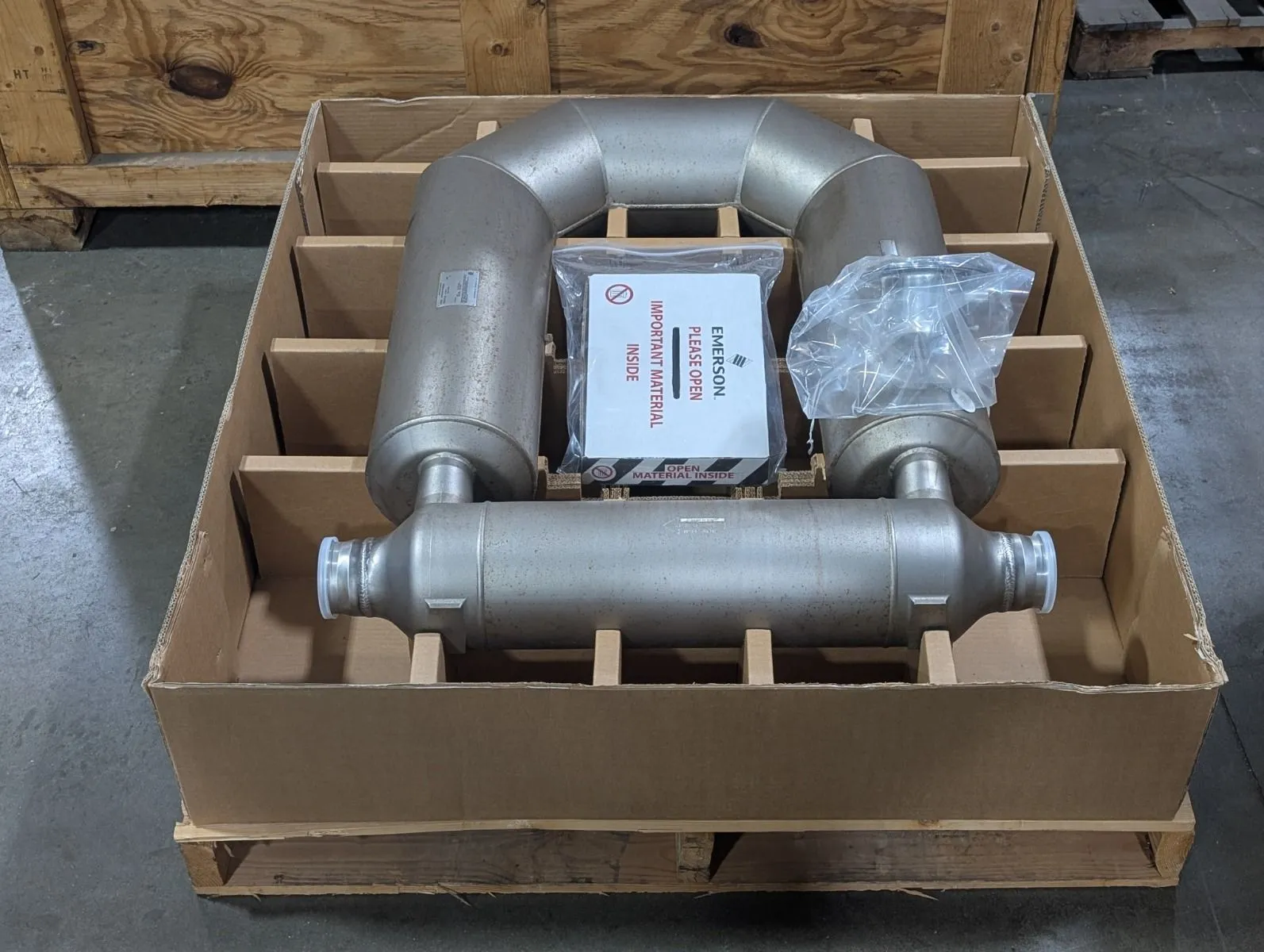

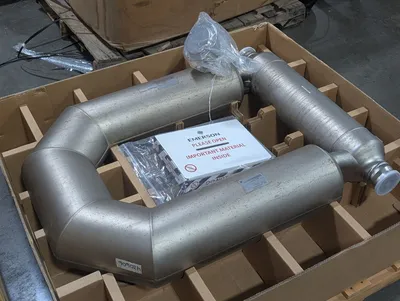

Micro Motion CMF300M Coriolis Mass Flow Meter
Brand: Emerson / Micro Motion
Quantity: 1

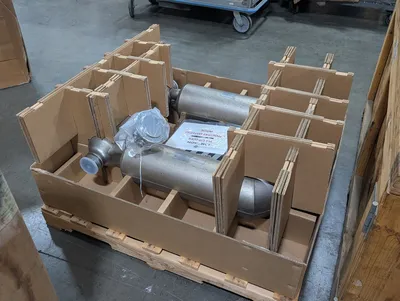

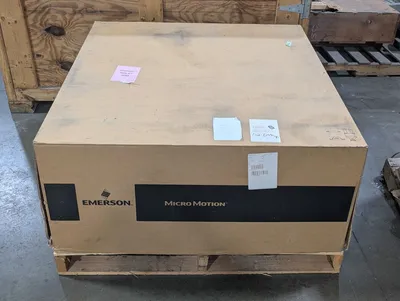

Condition: New in box, surface level corrosion to the outside shell

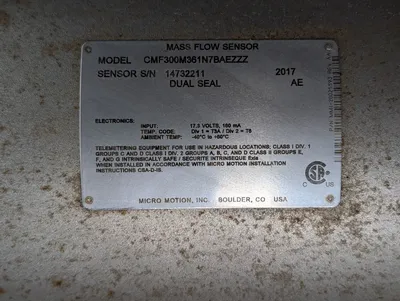

Model: CMF300M361N7BAEZZZ

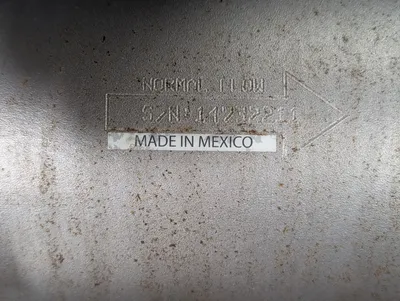

Sensor Serial Number: 14732211
Transmitter Serial Number: 26212715
Product Type: Coriolis Mass Flow Sensor
Port Size: 3"
Calibration Status: Factory calibrated – Certificate included (PASS)

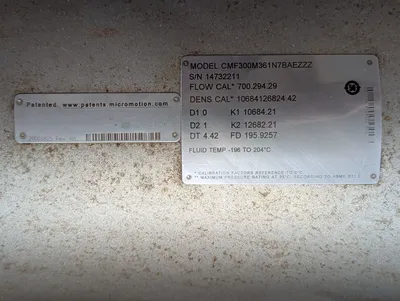

Flow Calibration Factor (FlowCal): 700.29429
Density Calibration Factor (DensCal): 10684126824.42
K-Factors: K1 = 10684.21, K2 = 12682.21
Drive Gain / Frequency (FD): 195.9257
Fluid Temperature Range: –196 °C to 204 °C
Electronics Input: 17.3 VDC, 160 mA
Temperature Code: Div 1 = T3A / Div 2 = T6
Ambient Temperature Range: –40 °C to +60 °C
Hazardous Location Ratings:
Class I, Div. 1, Groups C & D
Class I, Div. 2, Groups A, B, C, D
Class II, Groups E, F, G
Intrinsically safe when installed per Micro Motion instructions
Output / Assignments:
Event 1 & 2: Density
Frequency Output: Flow
mA Output: Mass Flow Rate
Frequency Pulses/Unit: 26.45502
Calibration Certificate Details:
100% Rate: 2268 kg/min (H₂O)
Error across flow range: ±0.009% to ±0.017% (within ±0.100% specification)
Documentation Included:
Micro Motion Calibration Certificate

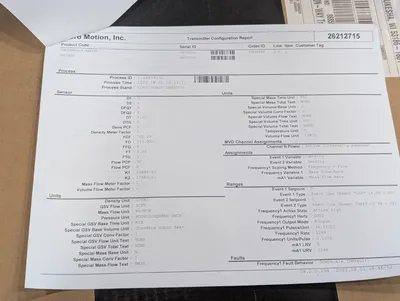

Transmitter Configuration Report

Location: Belgium WI, 53004
