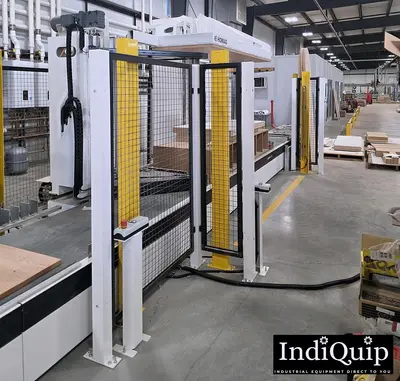

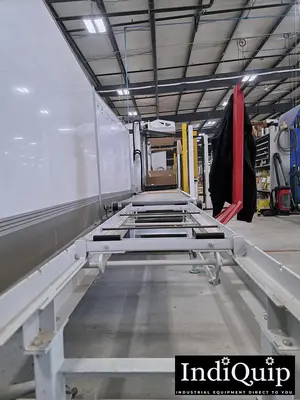

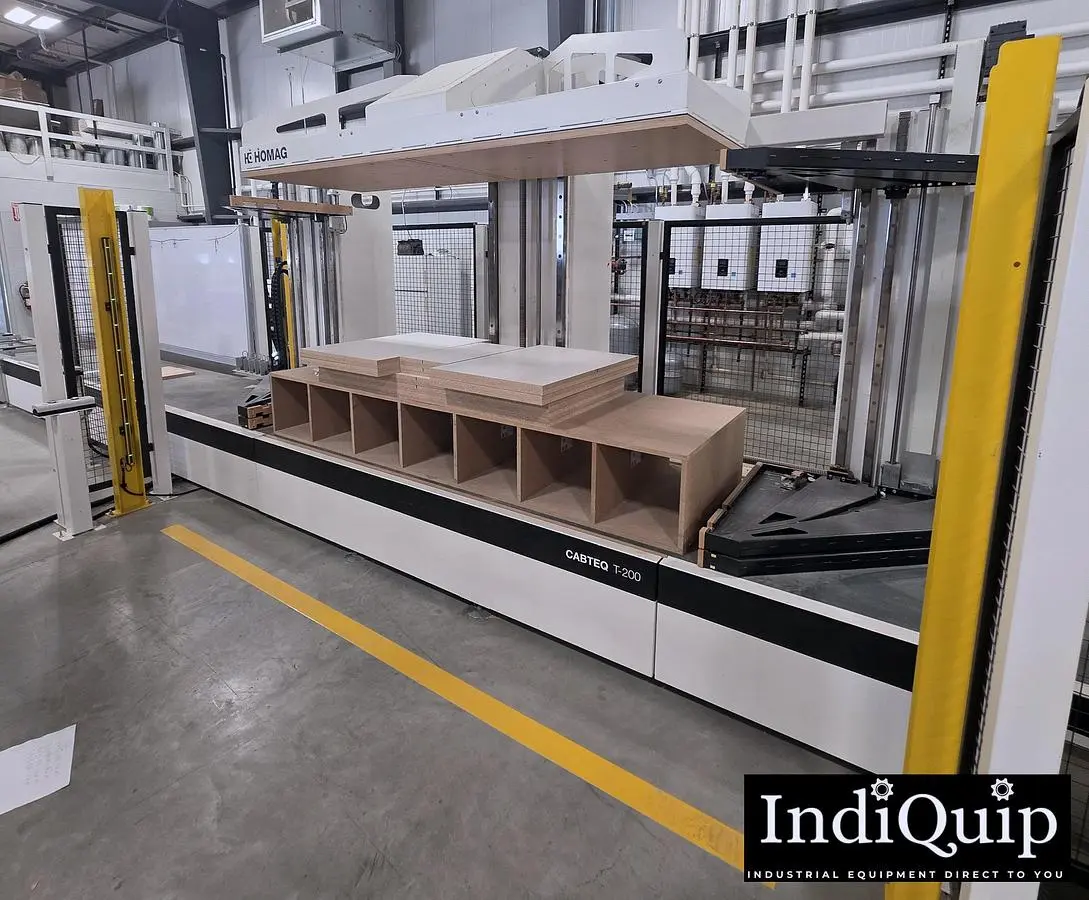

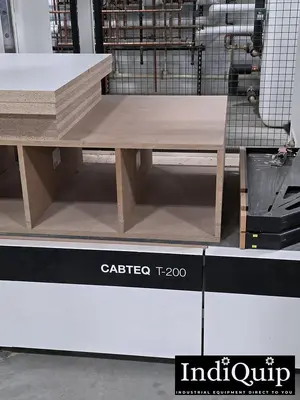

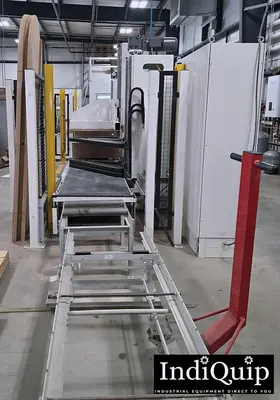

USED 2018 HOMAG CABTEQ T-200

The HOMAG CABTEQ T-200 (Type MDE120/25/08) is a premium electric throughfeed case clamp engineered for precision cabinet assembly. With a cabinet processing range of 250 – 2,500 mm in length, 120 – 800 mm in depth, and 220 – 1,320 mm in height, the machine handles a broad spectrum of carcass sizes. It delivers up to 30 kN vertical and 15 kN horizontal pressing force, and features a feed speed of 12–40 m/min.

Equipped with Homag’s powerTouch interface, the system reads the cabinet’s dimensions during feeding and dynamically positions the top and lateral pressing components. Its electrical drive for lateral clamping plates, servo-based motion adjustments, and automatic positioning enable quick changeovers, clean pressing, and precise control for delicate panels. Designed for integrated lines or standalone operation, the T-200 ensures high throughput and consistent, square cabinetry.

Cabinet Size Length: 9.8″ – 98.4″
Cabinet Size Depth: 4.7″ – 31.5″
Cabinet Size Height: 8.7″ – 52″
Vertical Pressing Force: up to 6,740 lb
Horizontal Pressing Force: up to 3,370 lb
Working Height: 19.7″
Operating Pressure: 87 psi
Control System: HOMAG powerTouch interface
Feed / Line Integration: Inline transport interface
