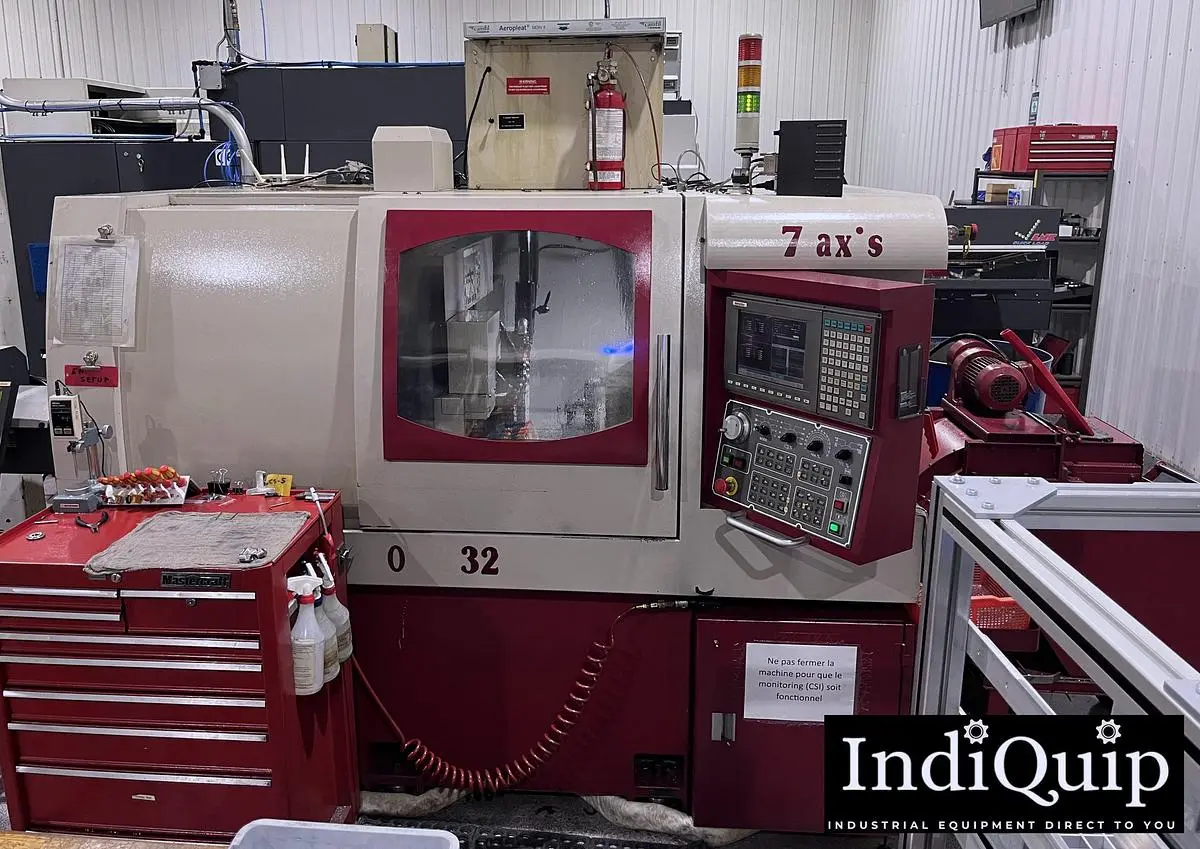

USED 2006 GANESH CYCLONE CS-32

The 2006 Ganesh Cyclone-32CS 7-Axis CNC Turn/Mill Center is a compact powerhouse purpose-built for complex multitasking operations involving small-diameter components. Featuring both main and sub spindles capable of 6000 RPM, a true Y-axis with 19.29 inch travel, and 13 live tool positions driven via robust gear-driven ER20 holders, the Cyclone-32CS delivers simultaneous milling and turning in a highly efficient layout. Dual synchronized spindles allow seamless front-back machining, while its rapid traverse rate of 1181 IPM ensures time-saving performance. With an intelligent 7-axis configuration and sub-spindle travel of 11.61 inches, it supports complete part processing in a single setup.

Compared to lower capacity Swiss-style machines or entry-level compact lathes, the Cyclone-32CS dramatically expands machining capability with its true Y-axis milling, higher live tooling horsepower, and dual spindles for lights-out manufacturing. Its high-speed live tools, gear-driven for rigidity, outperform belt-driven alternatives, making it an ideal solution for industries requiring precision, such as medical, aerospace, and electronics.

Additional Machine Specs:
Minimum Input Unit: 40 Millionths
OD Turning Tool Positions: 6 OD Tools
ID Turning Tool Positions: 5 ID Tools
OD Turning Tool size ½”
ID Turning Tool Bore Size 25 mm
Spindle Center Height 40” Live Tooling: All live tools are gear driven
Cross slide live tools: 4-ER-20 cross slide live tools, 4,000 rpm, 2.0 HP (1.5kw)
Front slide live tools: 3-ER-20 front slide live tools, 4,000 rpm, 1.0 HP (0.75kw)
Subspindle axial live tools: 4-ER-20 axial live tools, 4,000 rpm, 1.0 HP (0.75kw)

X-Travel: 7.28"
Y-Axis Travel: 19.29”
Z-Travel: 6.50"
Distance Between Centers: 12"
Rapid Traverse: 1181 IPM
Bar Capacity: 1.25"
Chuck Description: A32 Collet Chuck
Spindle Bore: 1.46"
Spindle Speed: 6,000 RPM
Spindle Motor: 10 HP
Sub-Spindle: Equipped
Second Bar Capacity: 1.25"
Second Chuck Description: A32 Collet Chuck
Second Spindle Speed: 3000 RPM
Second Spindle Motor: 5 HP
Tool Positions: 18
Turret Max RPM: 4000 RPM
Turret Options: ER-20 Collet

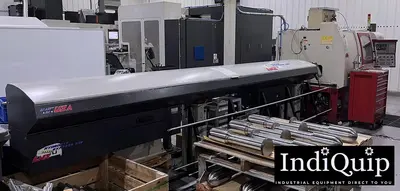

Barfeeder: LNS Hydrobar Express 332 Barfeeder
