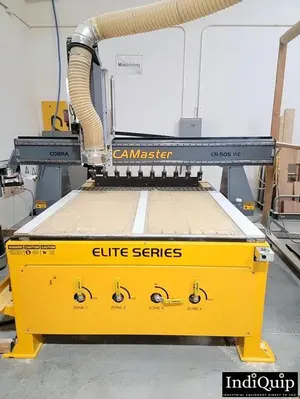

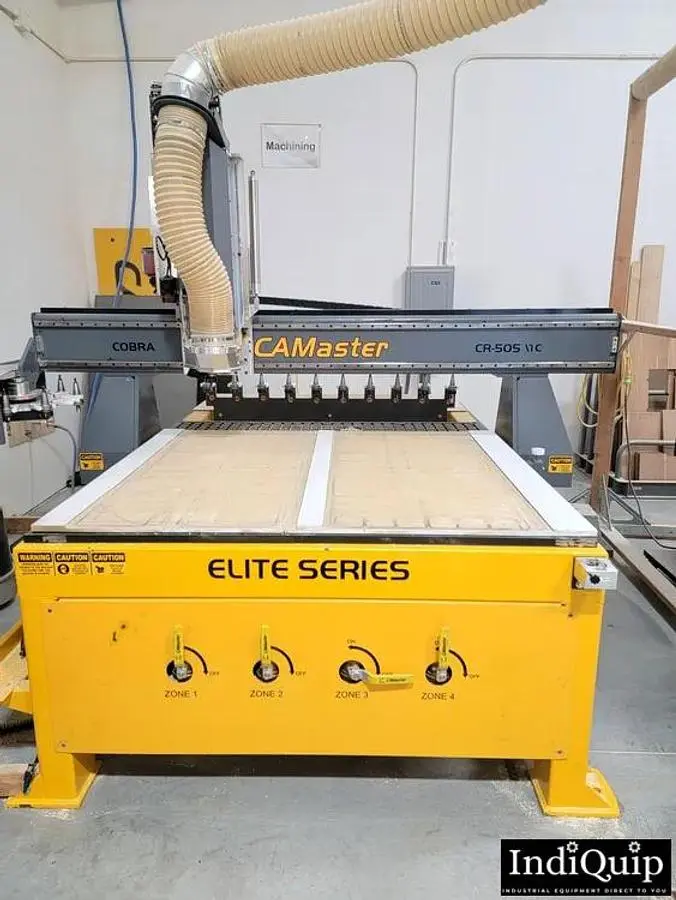

USED 2020 CAMASTER COBRA ELITE CR-505

Boost your production power with this Camaster Cobra Elite CR-505, a premium industrial CNC router engineered for heavy-duty performance and precision. Featuring a 12 HP HSD automatic toolchanging spindle with a total of 20-tool capacity, this machine combines both a rotary carousel and rear-mounted tool rack, each fully equipped with tool cones, forks, and collets to maximize flexibility and uptime.

A 7W laser engraver adds vector and raster engraving capabilities, expanding your application versatility. The machine’s 61" x 61" cutting area and 10" Z-axis clearance are driven by brushless AC servo motors, dual Y-axis drive, Z-axis brake, and 25mm precision rails for consistent high-accuracy machining. The robust build includes a steel-welded frame, all-steel gantry, and gusseted side supports, enhanced with helical rack and pinion and planetary gearboxes for smooth, powerful motion.

Enjoy lightning-fast operation with 2500 IPM rapid travel speeds, precise automated setups via the automatic tool measure switch, and a WinCNC high-speed visual control system housed in a custom-built monitor stand with dedicated operation buttons and USB connectivity. The Windows 10 Pro-based control system includes a touchscreen, keyboard, mouse, and VCarve Pro software for seamless design-to-cut workflows.

Vacuum hold-down is handled by an upgraded 15 HP FPZ regenerative vacuum system, complete with safety and inline filters, vacuum gauge, grid table plumbing with valves, and a G-code activated auto relief valve—all built on a phenolic tabletop for added durability.

Whether cutting, routing, or engraving, this Camaster Cobra Elite CR-505 is built to deliver speed, precision, and flexibility to your industrial CNC operations.
- Upgraded to a 12 HP HSD Automatic Toolchanging Spindle.
- Total of 20 tools
- 10 Tool Holders, 10 Tool Cones and 10 Collets. Upgraded to a Rotary
Carousel
- Additional 10 tool rack in the back. Includes (10) tool cones, (10) tool
forks and (10) tool collets.
- 7W Laser Engraver. Capable of both Vector and Raster engraving.
61" x 61" Cutting Area w/ 10" Z Clearance
- 12 HP HSD Collet Spindle
- Brushless AC Servo Drive System
- Dual Drive on Y Axis
- Z Axis Brake
- 25 MM Heavy Duty Precision Rails & Bearings on all Axis
- Industrial Steel Welded Frame
- All Steel Gantry
- All-Steel Gusseted Side Supports
- High Precision Planetary Gearboxes
- Helical Rack & Pinion
- Automatic Tool Measure Switch
- 2500 Inches Per Minute (IPM) Rapid Travel Speed
- Custom Built Monitor Stand with On/Off, Cycle Start, Cycle Stop and
E-Stop
Buttons and USB Port
- High Speed Visual CNC Control System (WinCNC)
- Windows 10 PRO Control Computer
- Touch Screen Monitor, Keyboard, & Mouse
- V Carve Pro Design Software
- Upgraded to Phenolic Table Top
15 HP FPZ Regen Vacuum Hold-Down System. Includes:
- 15 HP Regen Vacuum Pump. Pump runs off of 208-230/460 V 3
Phase Power.
- Safety Valve
- Inline Vacuum Filter
- Inlet Vacuum Filter
- Vacuum Gauge
- Vacuum Grided TableTop and Plumbing w/Valves for easy connection
to Vacuum Pump
- Auto Relief Valve to Engage and Disengage Vacuum On Table
Controlled Via G-Code

Type: CNC Routers
Status: For Sale
Table-W: 5'
Table-L: 5'
Power: 12 hp, 8.9 kW
Taper: 12 HP HSD ATC Spindle, 12 HP HSD ATC Spindle
# Axis: 3, 3
X: 61"
Y: 61"
Z: 10"
Dimensions: 87”W x 101”L x 94”H
