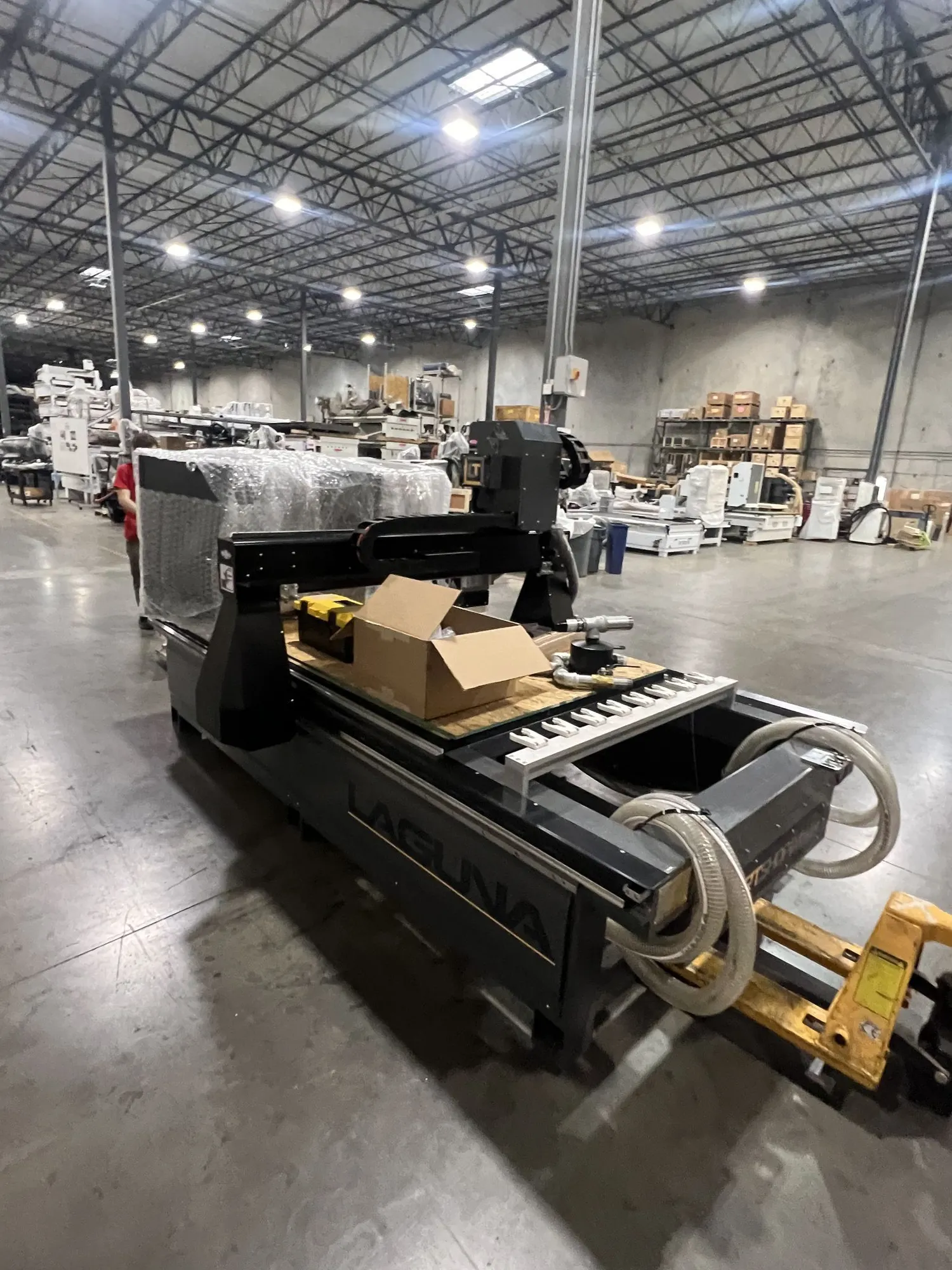

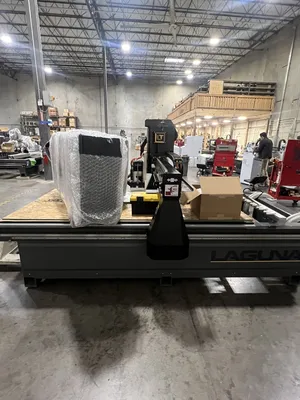

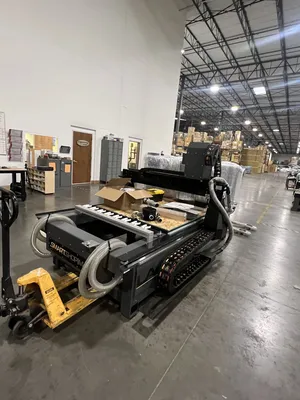

Laguna SmartShop M2 CNC Router: 4x8 table, 5.5HP spindle, 10HP vacuum, and 600 IPM travel — built for high-speed, industrial precision in wood, plastic, and composite cutting.
| Table-W | 4' | 1,219.2 mm |
| Table-L | 8' | 2,438.4 mm |
| Power | 5.5 hp | 4.1 kW |
| RPM | 24,000 RPM | 24,000 RPM |
| Taper | ISO130 | ISO130 |
| # Axis | 3 | 3 |
| X | 49" | 1,244.6 mm |
| Y | 97" | 2,463.8 mm |
| Dimensions | 78 x 127 x 77 | 78 x 127 x 77 |
| Weight | 2000 | 2000 |
Gantry Clearance: 10.5"
Rapid Travel Speed: 600 IPM
Maximum Cutting Speed: 350 IPM
Drive System (X/Y): Precision Helical Rack & Pinion
Linear Bearings: 25mm heavy duty, all axes
Dust Port Diameter: 4"
Table Top: PVC, Pod-Ready with 4 Vacuum Zones
Vacuum Pump: 10 HP regenerative (3-phase) or 5.4 HP Becker (3-phase)
Vacuum Table: Yes
Controller: Laguna Handheld ATC Controller
Power Requirements: 3-phase: 220V, 40A
Frame: Heavy-duty welded tubular steel
Home Switches: Solid state
Lubrication: Centralized system for all axes
