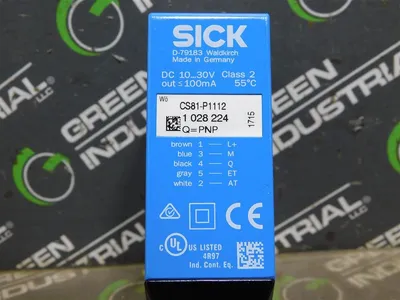

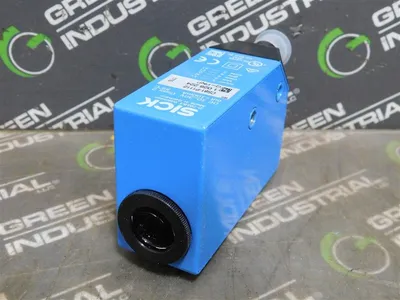

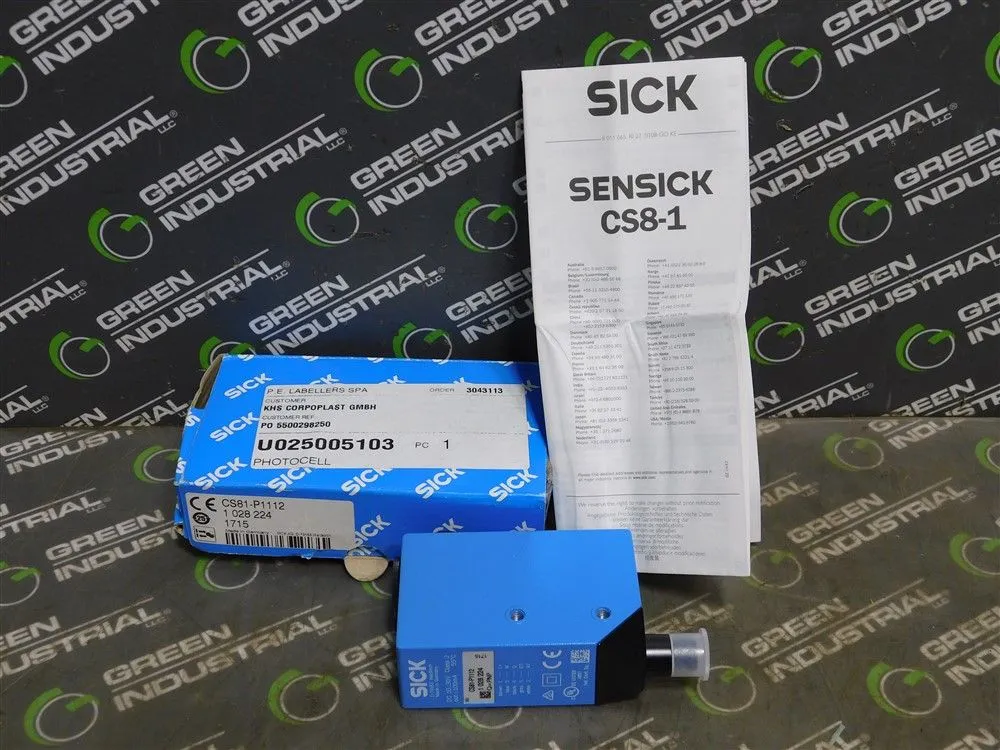

SICK CS81-P1112 Color Sensor 1028224 Light Spot Size 2mm x 4mm New

SICK Color Sensor

SICK Color Sensor
Type: CS81-P1112
Part No.: 1028224
Dimensions: (W x H x D) 30.4 mm x 80 mm x 53 mm
Sensing distance: ≤ 12.5 mm From leading edge of lens
Sensing distance tolerance: ± 3 mm
Housing design: Rectangular
Light source: LED, RGB
Wave length: 640 nm, 525 nm, 470 nm
Light spot size: 2 mm x 4 mm
Light spot direction: Vertical

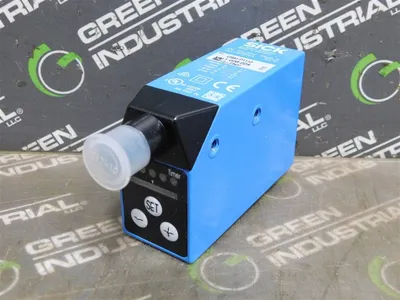

Adjustment Teach-in: button
Teach-in mode: Static 1-point teach-in
Supply voltage: 10 V DC ... 30 V DC Limit values when operated in short-circuit protected network: max. 8 A.
Ripple: < 5 Vpp May not exceed or fall below Uv tolerances
Current consumption: < 120 mA Without load
Switching frequency: 1 kHz, 3 kHz, 6 kHz adjustable With light/dark ratio 1:1
Response time: 500 μs, 160 μs, 85 μs Signal transit time with resistive load.
Switching output: PNP
Switching output (voltage): PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V
Output (channel): 1 color
Output current Imax.: 100 mA at 24V
Input, teach-in (ET): PNP, Teach: U = 10 V ... < UV, Run: U < 2 V
Input, blanking input (AT): PNP, Blanked: U > 10 V ... < Uv, Free-running: U < 2 V at >200 μs
Retention time (ET): 25 ms, non-volatile memory
Time delay Deactivation delay: 20 ms, shiftable
Connection type: Male connector M12, 5-pin
Protection class: II Reference voltage DC 32 V.
Circuit protection UV connections, reverse polarity protected, Output Q short-circuit protected, Interference pulse suppression
Enclosure rating: IP67
Weight: 400 g
Housing material: Metal, zinc diecast
