USED FLOWSERVE 520MD-02-W1DEE-0000-GM2
  • USED FLOWSERVE 520MD-02-W1DEE-0000-GM2
  • USED FLOWSERVE 520MD-02-W1DEE-0000-GM2
  • USED FLOWSERVE 520MD-02-W1DEE-0000-GM2
  • USED FLOWSERVE 520MD-02-W1DEE-0000-GM2
  • USED FLOWSERVE 520MD-02-W1DEE-0000-GM2
  • USED FLOWSERVE 520MD-02-W1DEE-0000-GM2
  • USED FLOWSERVE 520MD-02-W1DEE-0000-GM2
  • USED FLOWSERVE 520MD-02-W1DEE-0000-GM2

USED FLOWSERVE 520MD-02-W1DEE-0000-GM2

USD $750.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Electric Motor Driven Actuators
Manufacturer:
FLOWSERVE
Model:
520MD-02-W1DEE-0000-GM2
Stock #:
11285
Description

Flowserve Actuated Control Valve

Specifications

This is a used Flowserve Actuated Control Valve. Save thousands and buy used from Green Industrial today!

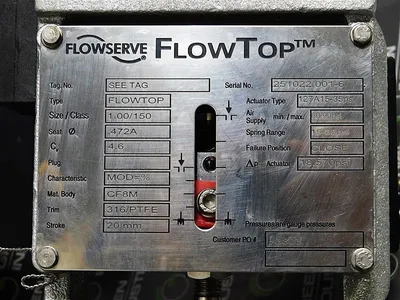

Model: 520MD-02-W1DEE-0000-GM2

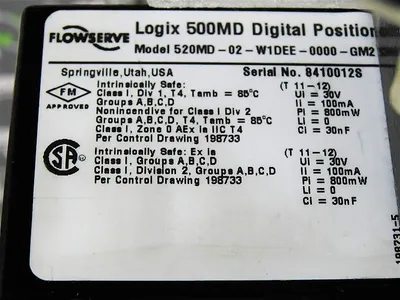

Logix 500MD Series: Basic
Type: Flowtop
Size: 1"
Class: 150
Seat Ø: .472A
Cv: 4.6
Characteristic: MOD=%
Mat. Body: CF8M
Trim: 316/PTFE
Stroke: 20 mm
Actuator Type: 127A 15-35 psi
Air Supply: 60 psi min., 90 psi min.
Spring Range: 15-35 psi, 90 psi max allowable.
Failure Condition: close
Δp Actuator: 18.570 psi

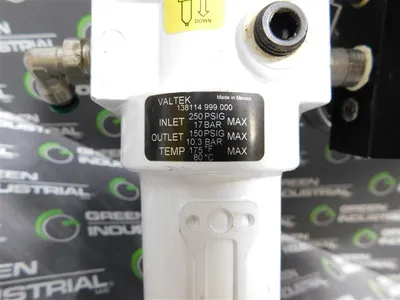

Pneumatic Regulator Information
Part#: 138114.999.000
Inlet: 250 PSIG, 17 Bar Max.
Outlet: 150 PSIG, 10.3 Bar Max.
Temp: 175°F, 80°C Max.
