USED JAMESBURY VPVL400 SR6 B C

Jamesbury Valve Actuator

Jamesbury Valve Actuator

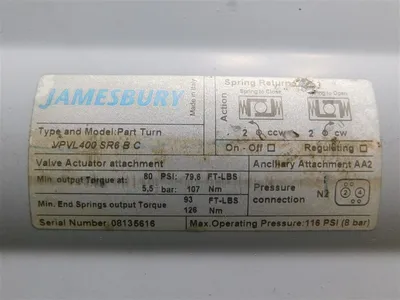

Type: Part Turn
Model: VPVL400 SR6 B C
Ancillary Attachment: AA2
Min Output Torque at: 80 PSI 79.6 FT-LBS, 5.5 bar 107 Nm
Min. End Springs Output Torque: 93 FT-LBS 126 Nm
Pressure Connection: N2
Max. Operating Pressure: 116 PSI 8 bar

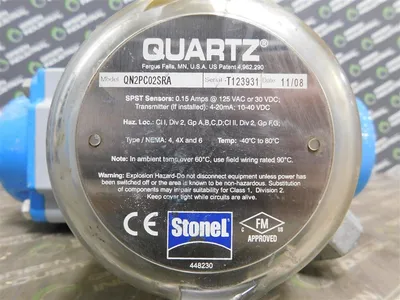

Indicator Manufacturer: Quartz
Model: QN2PC02SRA
SPST Sensors: 0.15 Amps @ 125 VAC or 30 VDC; Transmitter 4-20mA; 10-40 VDC
Haz. Loc.: CI I, Div 2, Gp A,B,C,D;CI II, Div 2, Gp F,G;
Type: Nema 4, 4X, and 6
Temp.: -40°C to 80°C
