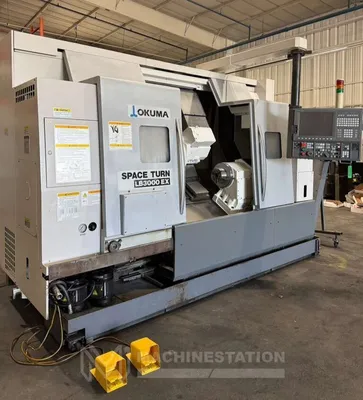

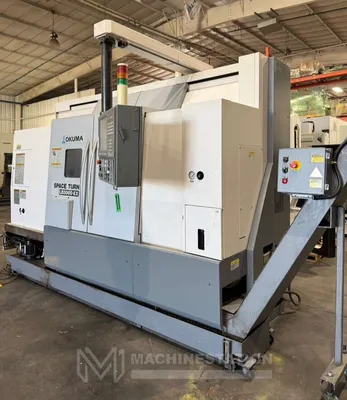

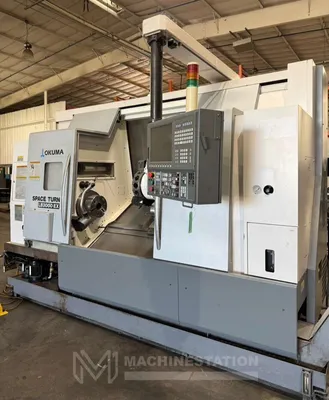

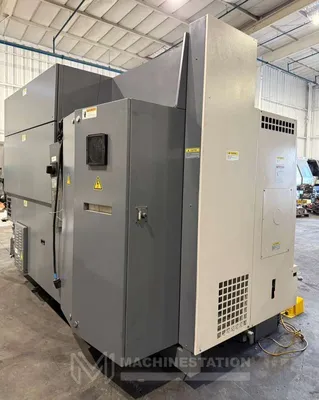

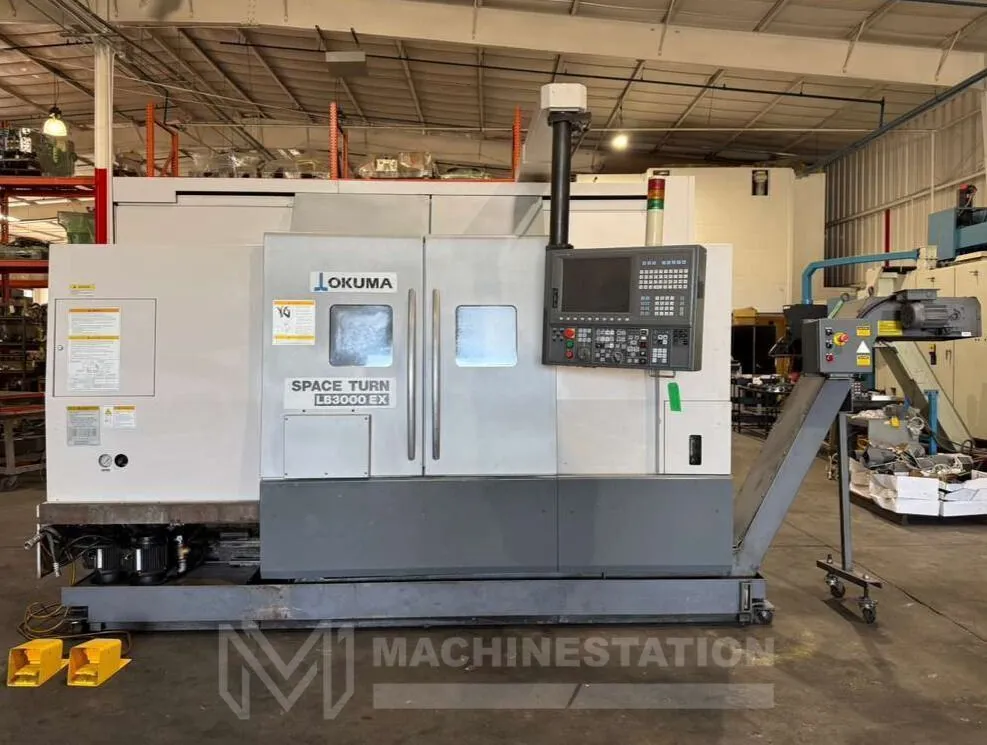

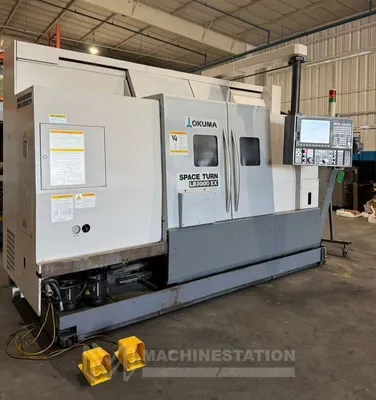

USED 2011 OKUMA SPACETURN LB 3000 EX MYW 800
Overview
Specifications
| # Axis | 6 | 6 |
|---|---|---|
| Swing | 22.83" | 579.88 mm |
| Machining Length | 31.5" | 800.1 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.6" | 66.04 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 4,200 RPM | 4,200 RPM |
| Turning Dia | 13.4" | 340.36 mm |
| Tailstock | No | No |
| Control | CNC (Okuma OSP-P200L CNC Control) | CNC (Okuma OSP-P200L CNC Control) |
| Dimensions | 150″ x 90″ x 86″ High approx. | 150″ x 90″ x 86″ High approx. |
| Weight | 16,800 lbs approx. | 16,800 lbs approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

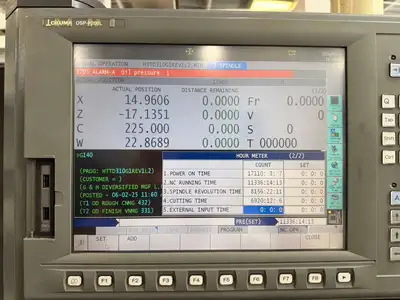

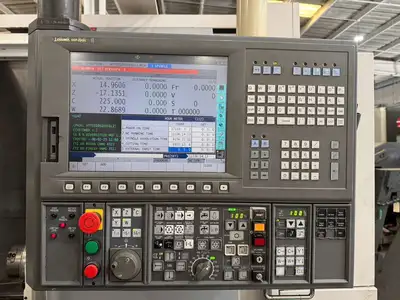

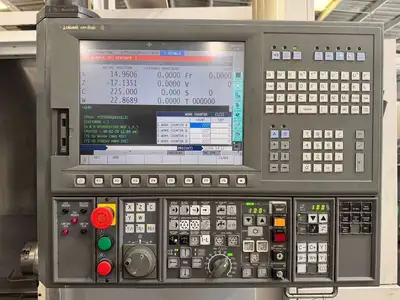

Okuma OSP-P200L CNC Control
6,920 Hours
Rigid Tapping
USB Ports

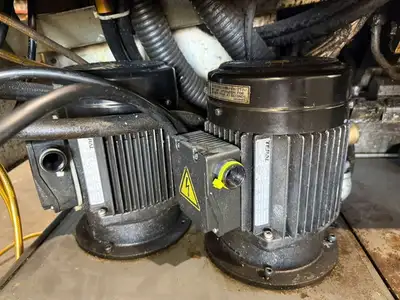

Coolant System
Capacity:
Max Turning Diameter: 13.4″
Max Turning Length: 31.5″
Swing Over Bed: 22.83″
Swing Over Saddle: 18.5″
Max Bar Capacity: 2.6″
Travels:
X Axis Travel: 10.4″
Z Axis Travel: 39.76″
Y Axis Travel: 4.53″ (+2.76 to –1.77)
W Axis Travel: 32.48″
C Axis: 0.001 Degree
Rapid Traverse (X): 984 IPM
Rapid Traverse (Z): 1,181 IPM
Rapid Traverse (Y): 492 IPM
Rapid Traverse (W): 1,181 IPM
Main Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.15″
Spindle Speed: 4,200 RPM
Spindle Motor: 30 HP

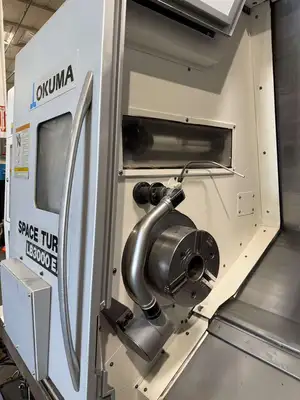

Sub-Spindle:
Spindle Nose: Flat 140
Spindle Bore: 2.44″
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
Turret
Capacity: 12 Station
OD Tool Size: 1.0″
ID Tool Size: 1.57″
Turret Index Time: 0.1 Sec.
Live Tool Speed: 6,000 RPM
Live Tool Motor: 10 HP
General

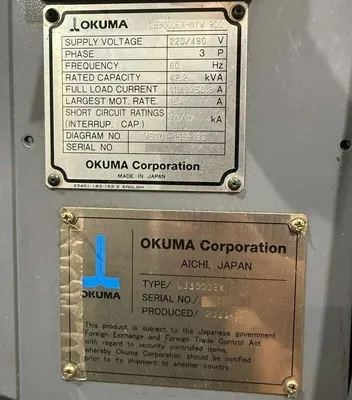

Power Requirement: 42.2 kVA / 220 / 480V / 3-Phase / 60 Hz
Overall Dimensions: 150″ x 90″ x 86″ High approx.
Machine Weight: 16,800 lbs approx.
Equipped With
10" 3-Jaw Kitagawa BB210 Chuck On Main Spindle
6" 3-Jaw B-206 Chuck on Sub-Spindle
Servo Controlled C Axis on Both Spindles
12-Station Live Tool Turret
Y-Axis on Turret
W Axis (Sub Spindle Travel)
Tool Presetter
Mayfran International Chip Conveyor

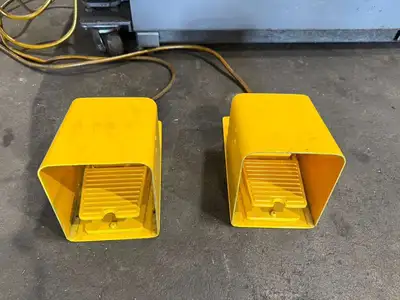

Foot Switch
