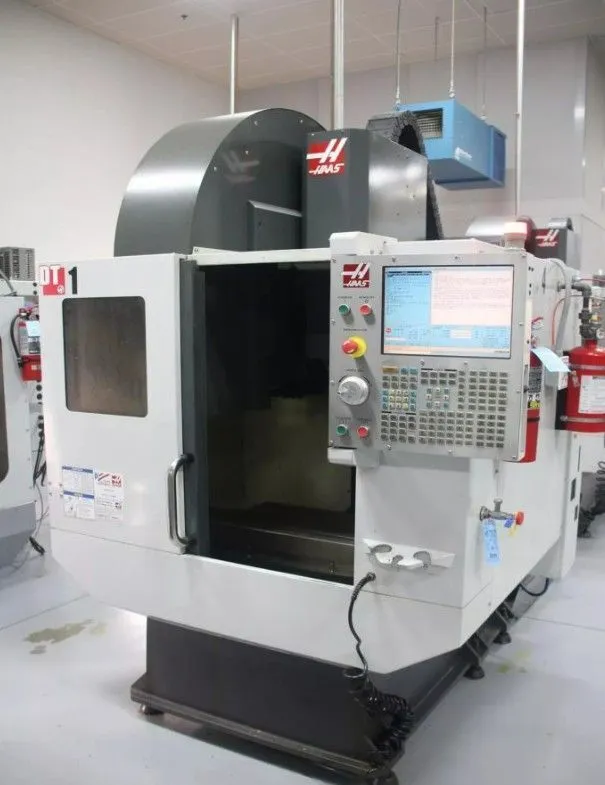

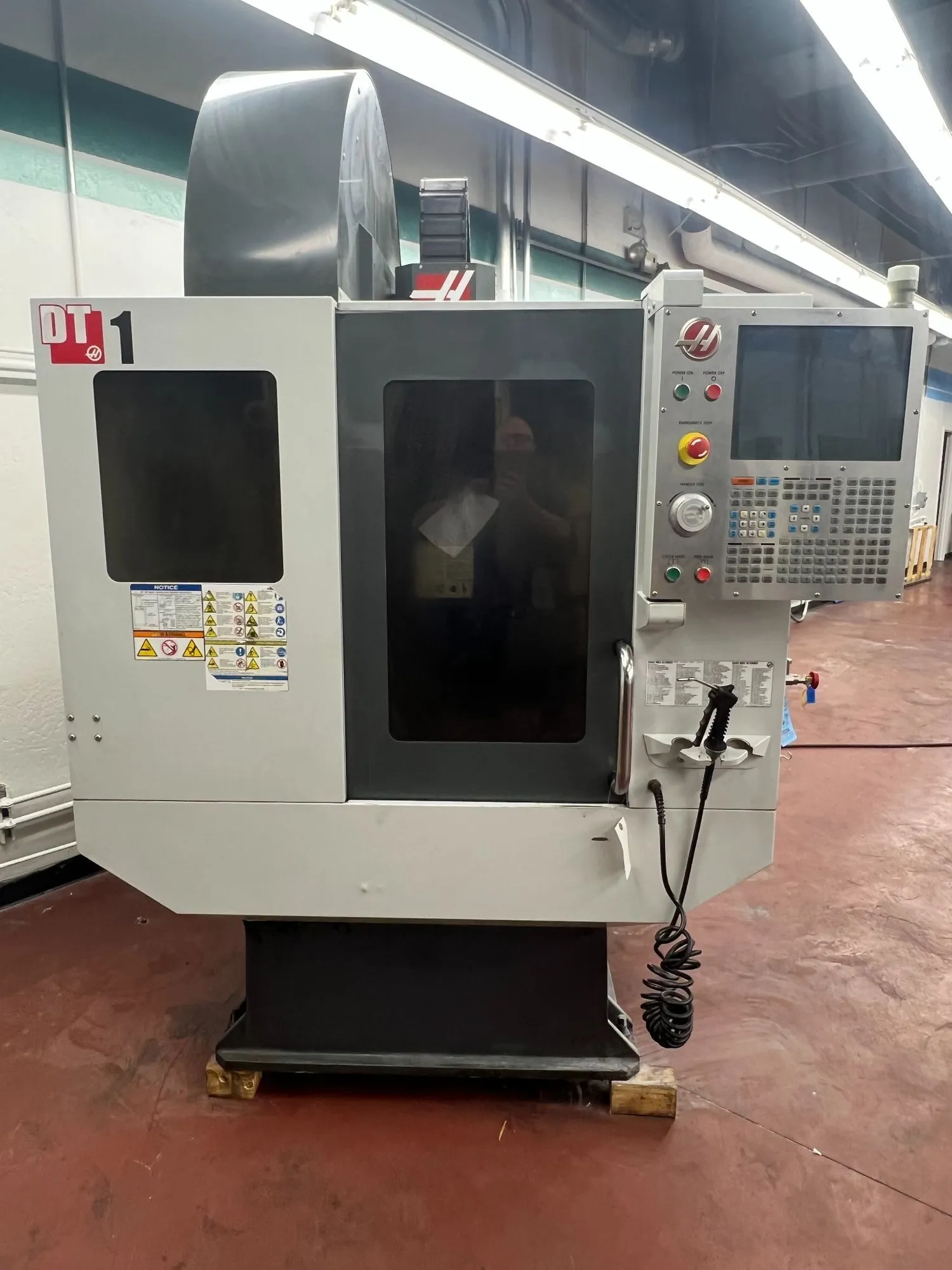

Haas DT-1 Drilling & Tapping Center, New in 2010
| X-Axis | 20" | 508 mm |
| Y-Axis | 16" | 406.4 mm |
| Z-Axis | 15.5" | 393.7 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 20 | 20 |
| Taper | BT30 | BT30 |
| Control | CNC | CNC |
| Dimensions | 68" x 100" x 103" | 68" x 100" x 103" |
| Weight | 4,200 lbs | 4,200 lbs |
General Specifications:
Table Size: 26" x 15"
Max Table Load Capacity: 250 lb
X-Axis Travel: 20"
Y-Axis Travel: 16"
Z-Axis Travel: 15.5"
Clearance Tabletop to Spindle Nose: 6" - 21.5"
Spindle Nose to Trunnion Center: 6" - 21.5"
Rapid Traverse Rate (X, Y, & Z Axis): 2,400 in/min.
Spindle Power: 15 hp
Max Spindle Speed: 10,000 RPM
Max Spindle Speed For Tapping: 5,000 RPM
Spindle Taper: BT30
Torque, Up To: 46 FT-LBS @ 1700 RPM
Coolant Through Spindle: Yes
Automatic Tool Changer Capacity: 20
Automatic Tool Changer Style: Side-Mount
Tool Change Time: 0.8 sec.
Electrics: 195-260/3/60
Machine Dimensions: 68" x 100" x 103"
Machine Weight: 4,200 lbs
Haas CNC Control
High Pressure Coolant
Dual Chip Auger
Fire Suppression System
4th/5th Axis Ready
