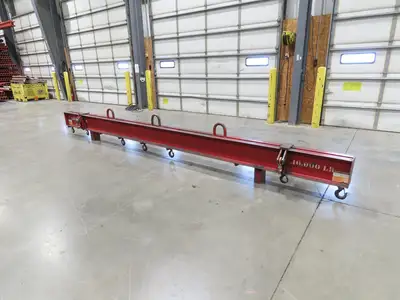

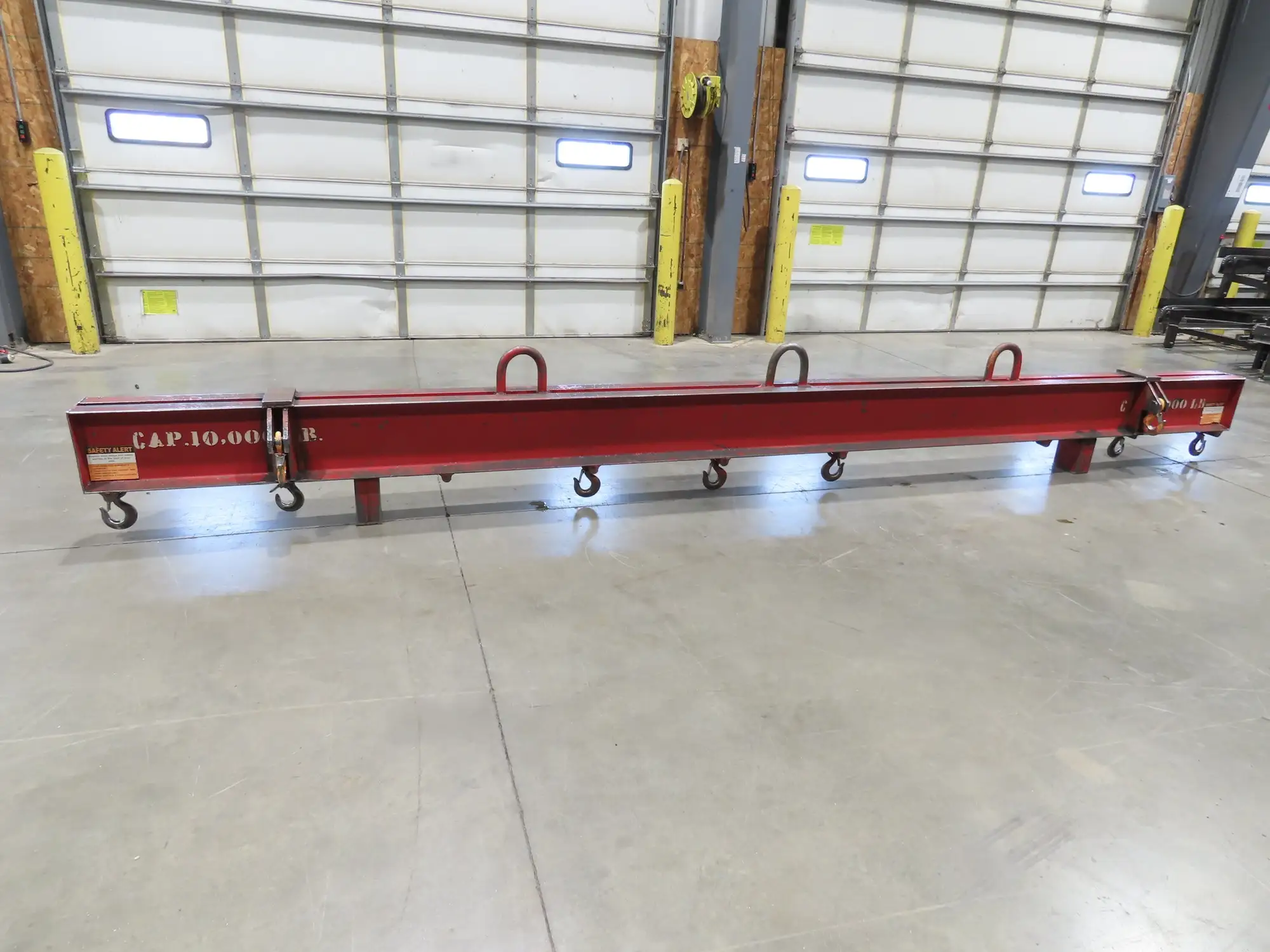

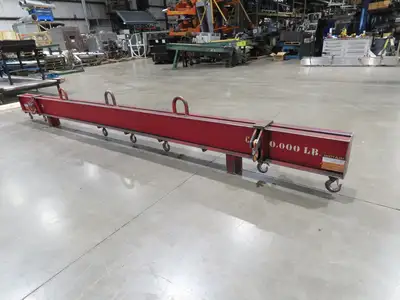

10000 Lb Rigging Lifting Beam Spreader Bar 11-Hook 215" Spread Center Lift

USD $6,174.99
1 available
Overview
Stock #:
304140
Specifications

Lifting beam in good used condition.
Overall max capacity 10,000 Lbs. This has been modified since original. Max lifting weight could be a lot more than 10,000lbs.
215" spread distance between end hooks. 14' / 168" spread distance between heavy duty hooks. This looks to have been added later.

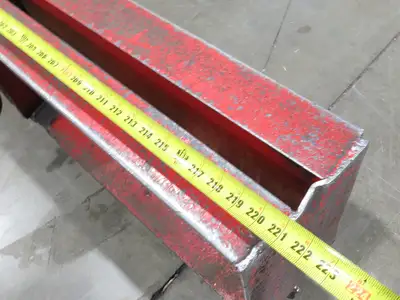

221" overall beam length.
26" Hook to hook height. 28" height center of lifting eyelet with bases. Top eyelet is centered. 48" from center to side eyelets.
Hooks are spaced 24" apart with total spread of 215" Some missing.
Crosby GR-100 1/2-13 hooks.
Beam weights 1310 lbs
Dual beams 12" tall 3" wide.
