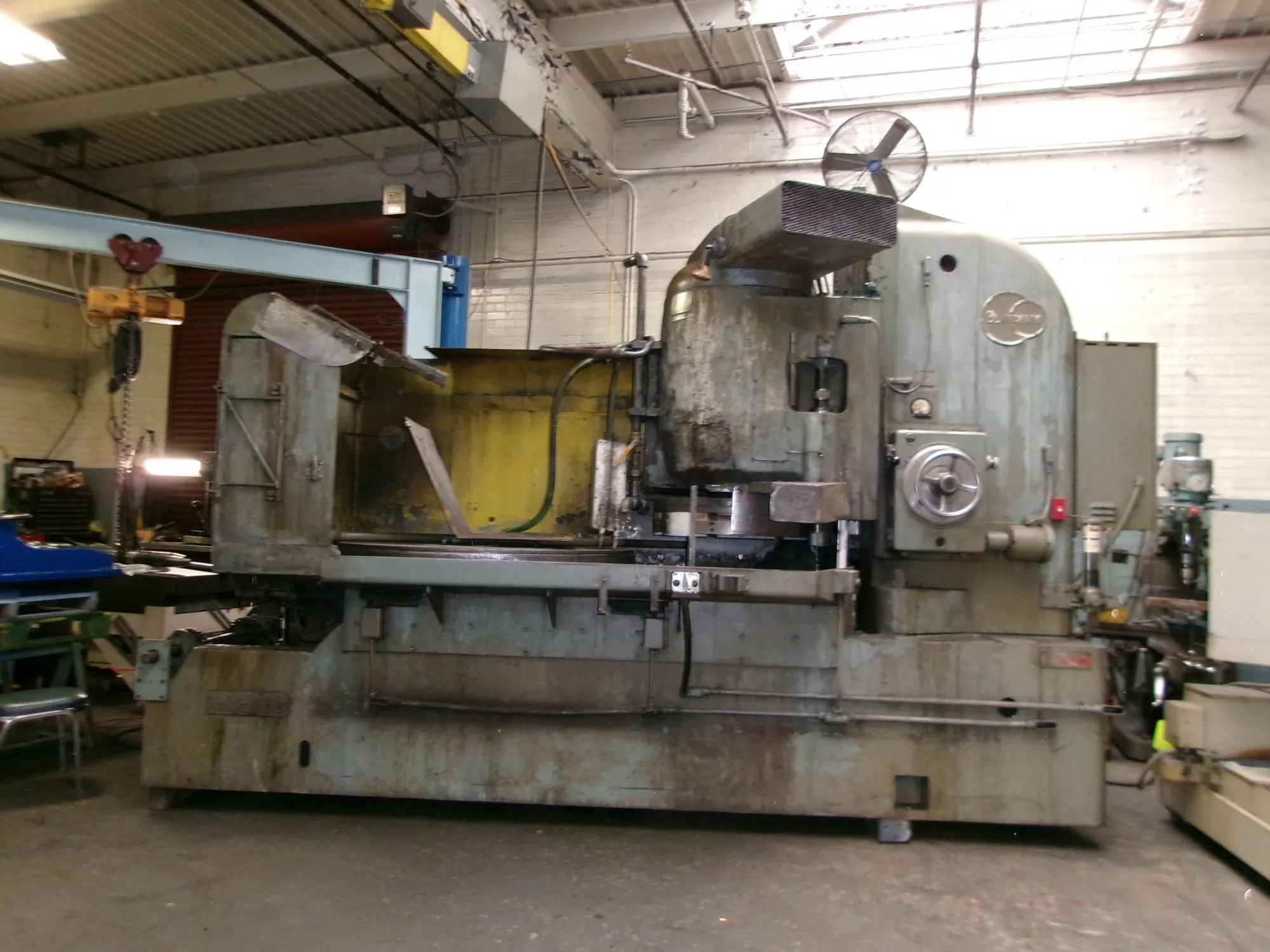

USED 1970 BLANCHARD 32K-60

32K-60 BLANCHARD ROTARY SURFACE GRINDER

S/N 13160 YEAR: 1970

STANDARD SPECIFICATIONS

Range
66" Swing; 30" vertical range over chuck with new wheel segments.

KVA Req’d: 75 HP – 95 KVA.

Work Table: (Blanchard one piece steel magnetic chuck) 60" diameter magnetic chuck, maximum unbalanced work load to 6,000 lbs.

Feed: Vertical down feed by hand or power. Power feed variable from .004" to .080" per minute.

Coolant Supply: External coolant supply required 150 GPM approximate flow rate.

Floor Space: 186" x 84" x 134" maximum height, plus electric panel 63’ wide x 78" high x 21" deep.

Weight: 34,000 lbs. with standard equipment.

Standard Motors: 75 HP grind; 10 HP chuck rotation, 900 HP head traverse, 900RPM torque table traverse; 1/3 HP feed.

EQUIPMENT & FEATURES
From running service.
Dresser.
7-Segmented wheel.
Complete shifter.
75 HP Spindle Motor.
30" Vertical range.
Trabon lube. (Manual pump)
Stand alone electrical panel.
Conveyor in base.
Load Meter.
All Guards.
Coolant in base.
Neutrofier chuck controls.

Specifications are deemed accurate, however, subject to verification or prior sale.
