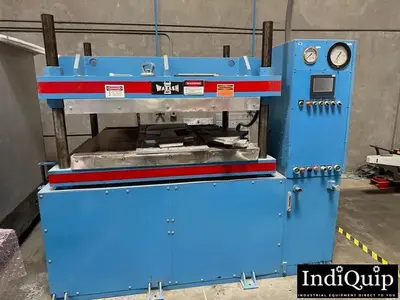

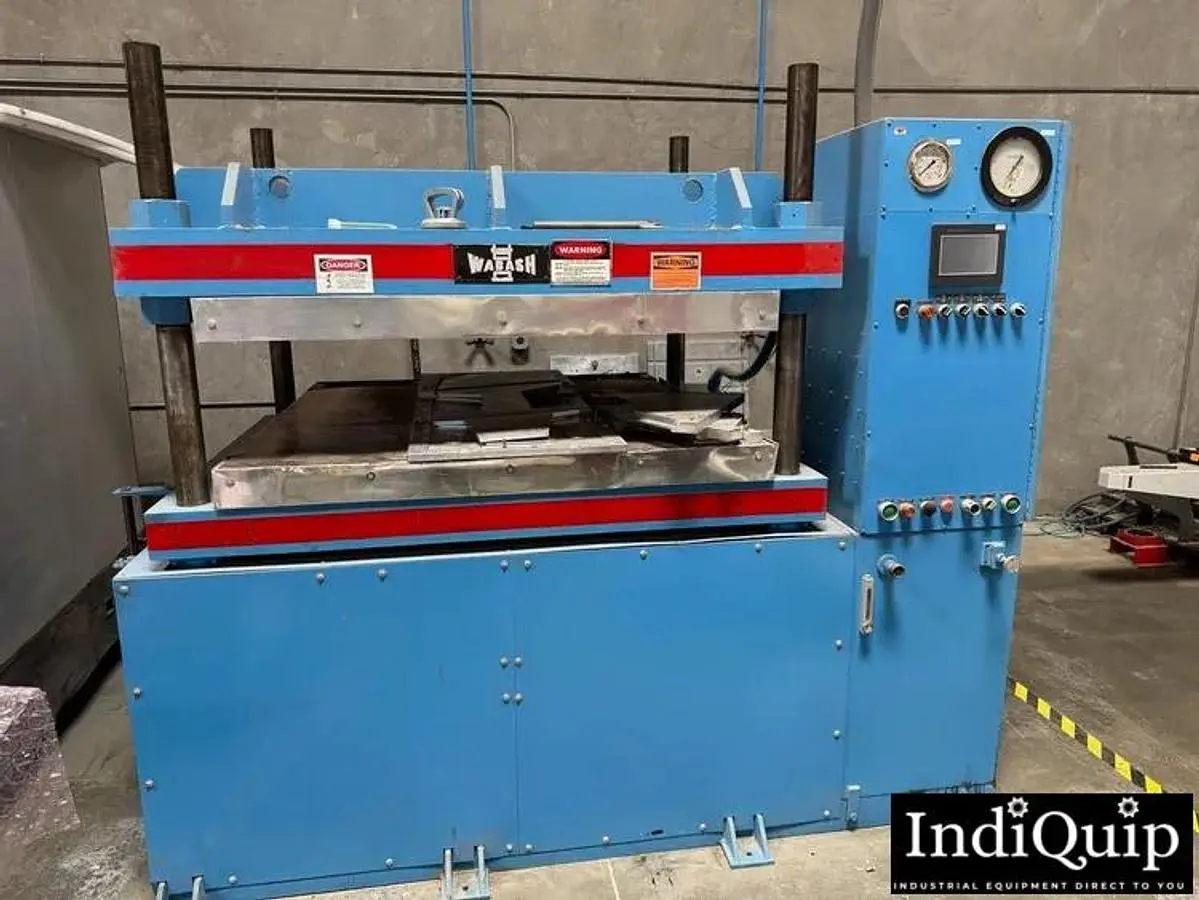

USED WABASH UPS/4PS

75 Ton Wabash, 4 Post, upstroke, 54” x 54” hot plates, 12” str., 20”-33” DL
4 post upstroke type; floor standing
Distance between 3" dia. posts: 58" L-R x 45" F-B
Platen area (nominal): 58" L-R x 54" F-B
Overall dimensions of platen: 68" L-R x 54" F-B
Stroke of fully guided platen: Approx. 0 - 12" maximum
Daylight opening (total): 20 - 33" maximum (adjustable)
Daylight opening between
hot plates (1): 12" - 25" maximum (adjustable)
Hot plates (2): 54" L-R x 54" F-B x 2.75" thick
(electrically heated to 600° F -
drilled for water cooling)
Insulation (2): 54" L-R x 54" F-B x 1.75" thick
Main ram diameter (2): 6"/3" @ 2650 PSI - 75 tons
Floor to top of moving platen: 43"
Power unit (base of press): Hydraulic pump, driven by
10 HP 1175 RPM 230/460/3/60 motor
Speeds approx.: 60"/minute closing
3"/minute pressing to 75 tons
70"/minute return
Controls: Pushbutton operation with stroke &
pressure control
Dual palm buttons
Selector switch for manual or
semi-automatic operation
Cycle timers - low & high pressure
Temperature controllers
Low & high pressure gauges
