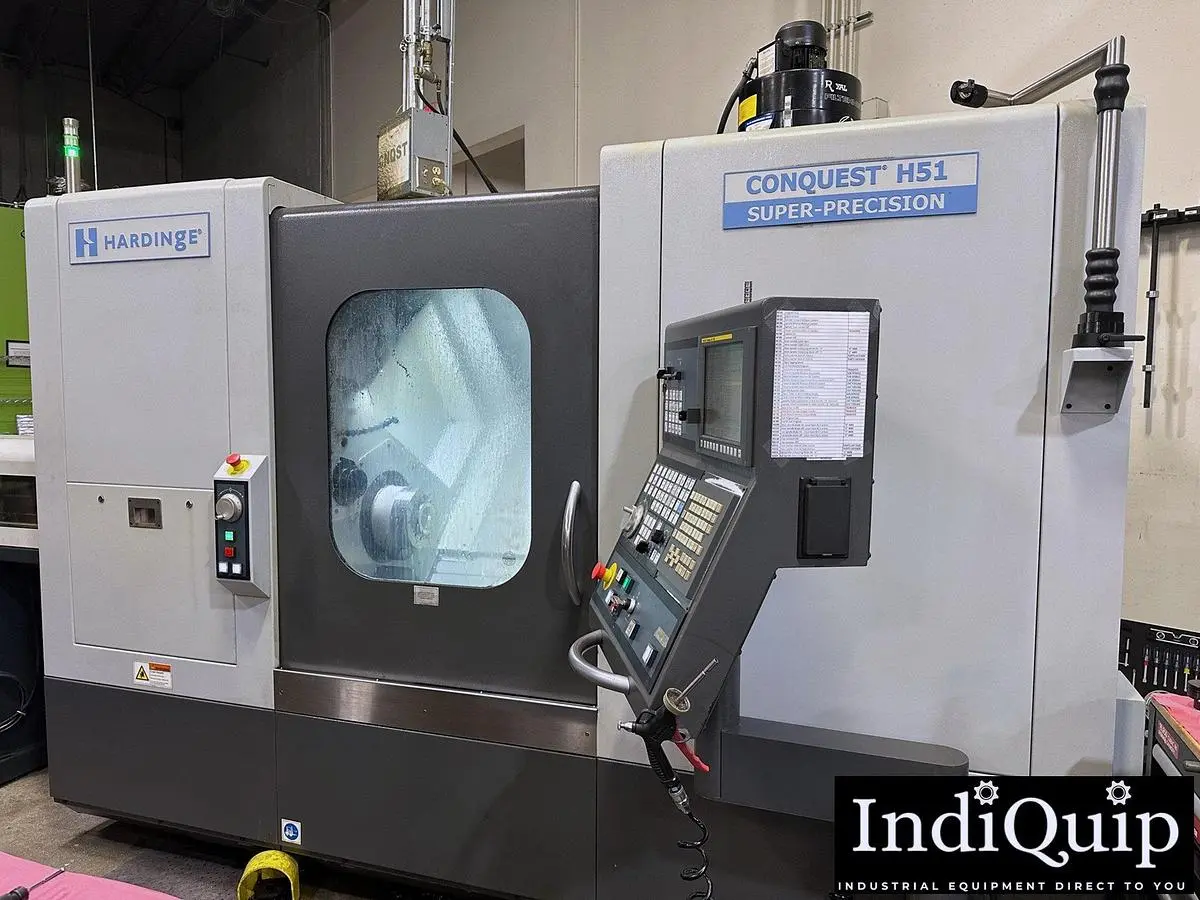

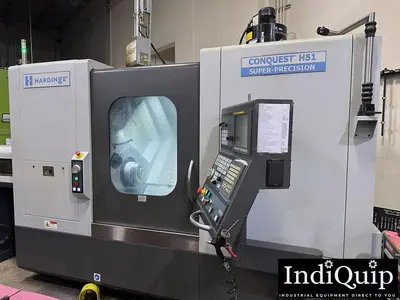

USED 2017 HARDINGE CONQUEST H51

The 2017 Hardinge Conquest H51 Super-Precision CNC lathe is a slant-bed turning center built for high accuracy and done-in-one productivity. This machine combines a powerful A2-6 main spindle (2.0" bar capacity, 5,000 RPM, 20 HP) with a synchronized sub-spindle and full Y-axis capability, making it ideal for complex parts that require milling, drilling, and back-working in a single setup.

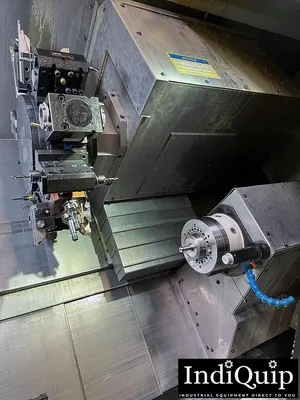

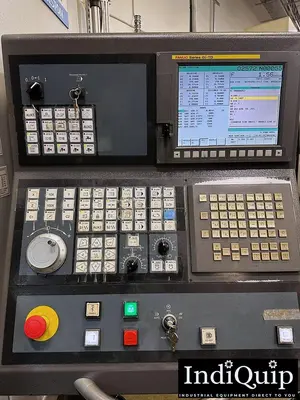

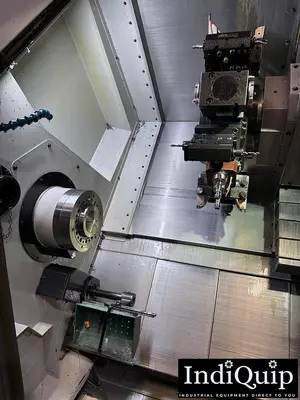

Equipped with live-tooling capability, a 12-station turret, and Y-axis interpolation, this H51 is ready for multi-process machining. While no live toolholders are included, the turret is currently outfitted with approximately 8–10 ID/OD holders, and about 10 spindle liners are provided. Both the X, Y, and Z axes feature glass scales for enhanced precision and repeatability. The Fanuc control ensures reliable performance with rigid tapping cycles, smooth toolpath execution, and broad service support.

Additional productivity features include a chip conveyor, parts catcher, part ejector, tool probe, and foot switch for streamlined operation. The dual-spindle configuration allows for automatic part hand-off, eliminating secondary setups and improving concentricity across features. With rapid X/Z traverse rates of 944 IPM and a maximum turning length of 21.6", this machine is built to handle demanding production while maintaining Hardinge’s renowned ±0.0001" repeatability.
Please note: this machine does not include any chucks, 16C collets for the sub-spindle, or live toolholders.

Key highlights: 2017 build, Fanuc control, slant-bed construction, sub-spindle with part ejector, Y-axis, live-tooling capability, glass scales on all axes, chip conveyor, tool probe, rigid tapping, foot switch, parts catcher, approx. 8–10 toolholders included, and spindle liners.
Exclusions: No chucks; no 16C collets for sub-spindle; no live toolholders

Construction: Slant-bed lathe
Main Spindle Nose: A2-6
Main Spindle Bore: 2.05''
Bar Capacity: 2.0''
Main Spindle Speed: 45 – 5,000 RPM
Sub-Spindle: Equipped
Part Ejector: Equipped
Y-Axis Capability: Equipped
Live Tooling: Equipped
Turret: 12-station
Spindle Motor Power: 20 HP
X-Axis Travel: 8.66''
Y-Axis Travel: ±2.17''
Z-Axis Travel: 21.6''
Rapid Traverse (X/Z): 944 IPM
Swing Over Bed: 18.11''
Swing Over Cross Slide: 9.84''
Chip Handling: Chip conveyor
Machine Weight: 11,000 lbs
Probing: Tool Probe
