USED 1987 MAZAK YMS H40Q

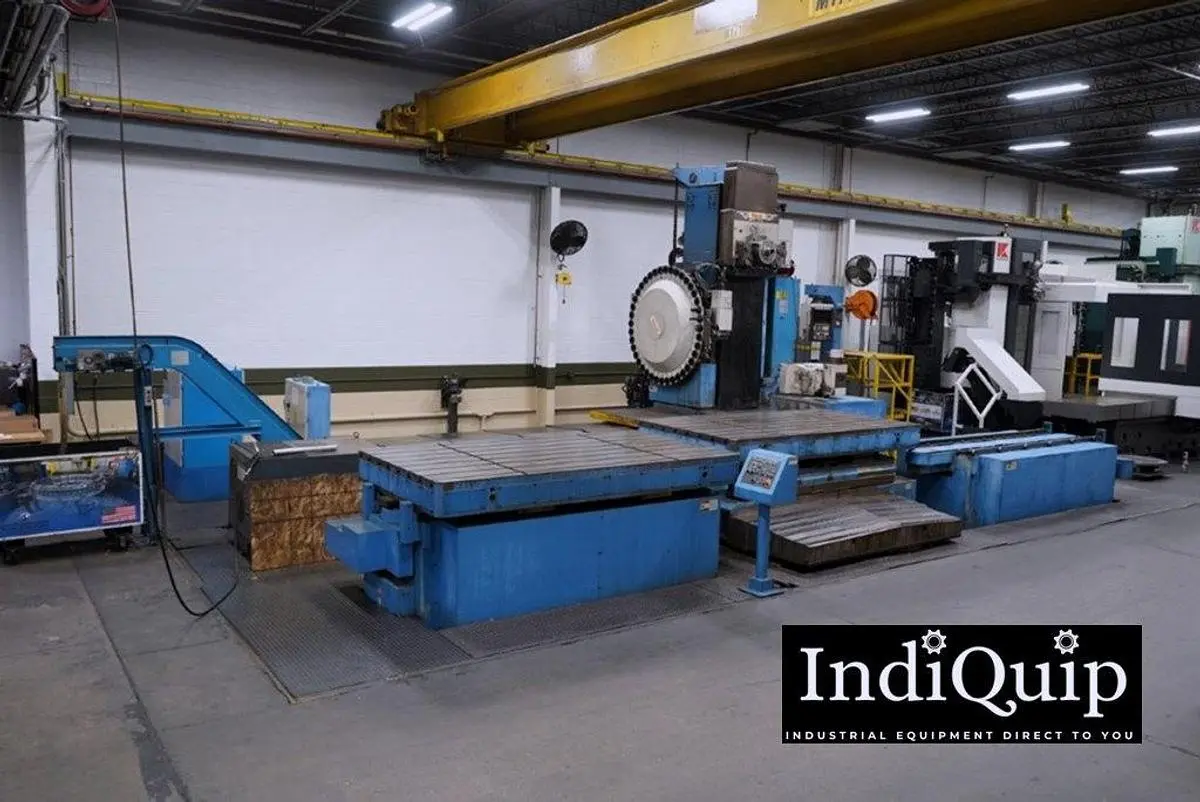

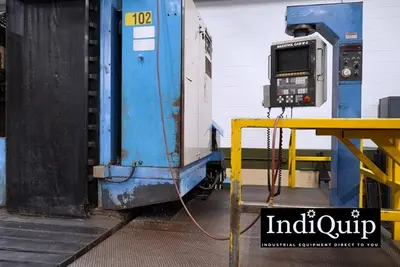

The 1987 Mazak YMS H40Q is a heavy-duty horizontal machining center built for large-scale production and precision part manufacturing. Equipped with a Mazatrol M-2 CNC control, this machine provides dependable performance and intuitive programming for multi-axis operations.

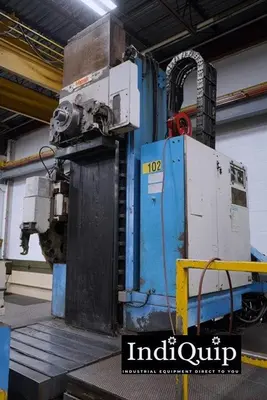

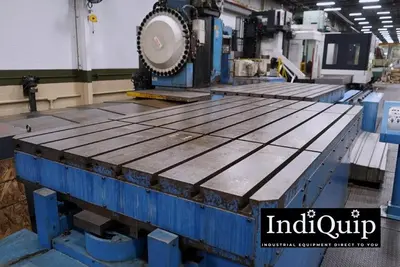

With expansive travels of 160″ X, 79″ Y, 36″ Z, and 15″ W, it’s engineered to handle oversized components with accuracy. The massive 63″ × 118″ rotary T-slotted table supports up to 17,640 lb, offering seven Z-axis position options to accommodate tall or complex parts. Its CAT 50 spindle delivers up to 2,625 RPM and 40 HP of cutting power through a rugged 4-speed drive, supported by a spindle chiller unit for consistent thermal stability.

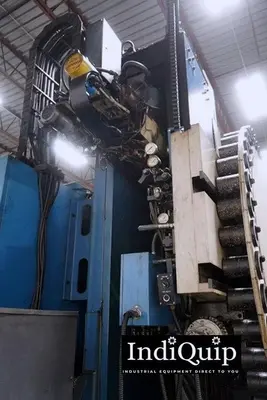

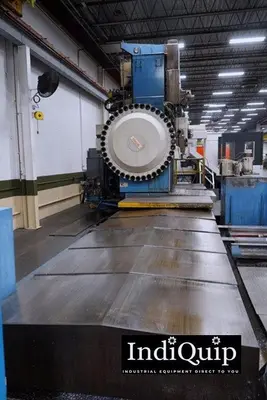

The machine includes an automatic right-angle head, touch sensor probe, and dual pallet system for high productivity. A 40-tool automatic tool changer, chip conveyor, and handheld MPG simplify operation and minimize downtime.

This Mazak YMS H40Q remains a reliable choice for shops machining heavy castings, large molds, and industrial components — combining Mazak’s proven construction with the capability to handle demanding, high-torque applications.

X Axis: 160.1"
Y Axis: 79.7
Z Axis: 36.0 "
W Axis: 15.0"
Spindle Diameter: 5.1"
Table Capacity: 17,640 LB
Spindle: CAT 50
ATC: 40
Max Tool Diameter: 12.0”
Number of Pallets: 2
4th Axis: 0.001° indexing capability
