60" x 0.060" x 20,000# Iowa Precision Slear Line

Specifications:
Manufacturer: Iowa Precision
Max Coil Width: 60”
Gauge Range: 0.012” – 0.060”
Maximum Coil Weight: 20,000 Lbs.
Thickness Range: 0.012” – 0.060”
Coil I.D. Range: 19” – 24”
Coil O.D. Maximum: 60”
Stack Length Range: 12” – 120”
Line Speed: 70 – 100 FPM
Minimum Edge Trim Per Side: 0.250”
Minimum Slit Width: 4”
Maximum Bundle Weight: 5,000 Lbs.
Slit Width Accuracy: ±0.0625”
Length Accuracy: ±0.0625”
Maximum Number Of Cuts: 10
Maximum Number Of Mults: 9
16 Gauge Maximum Mults: 6
18 Gauge Maximum Mults: 7
Line Direction: Left To Right
Equipment Included:

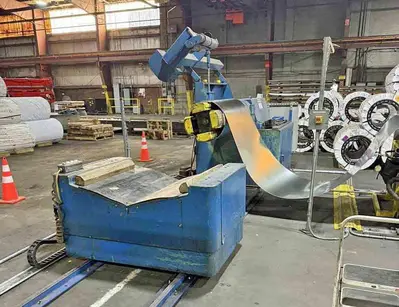

Entry Coil Car: Rowe
Model: BGY-20
Operation: Electric Motor Operated
Controls: Hand Pendant
Maximum Coil O.D.: 60”

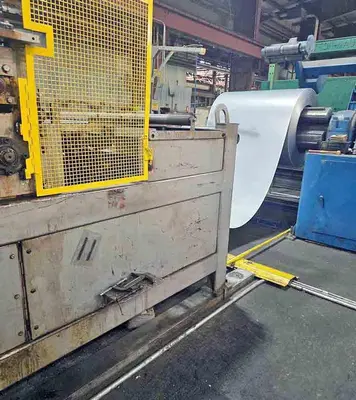

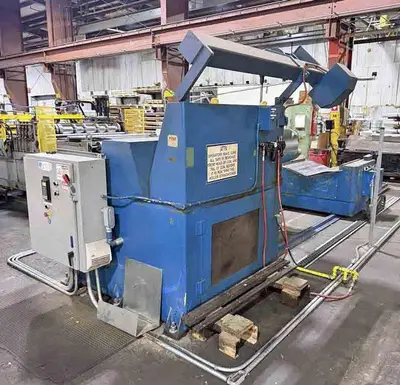

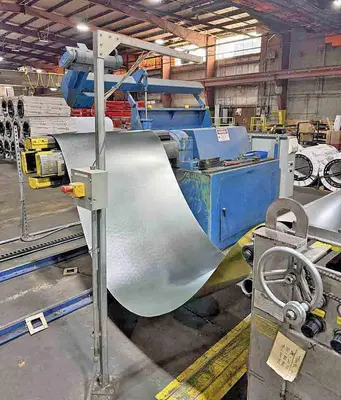

Uncoiler: Rowe
Model: 20060-DSV
Mandrel: 4 Segment
Expansion: Powered
Features: Threading Drive, Holddown Roll
Base: Fixed
Maximum Coil O.D.: 60”
Loop Control: Loop Control Sensor

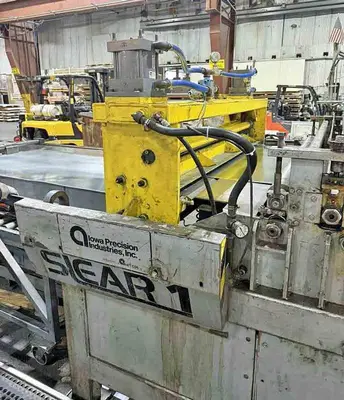

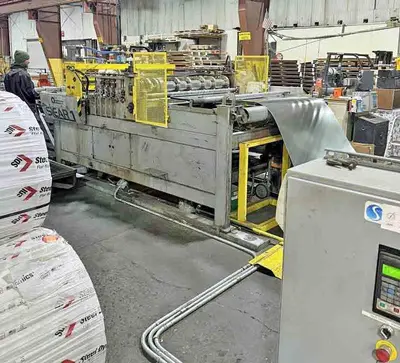

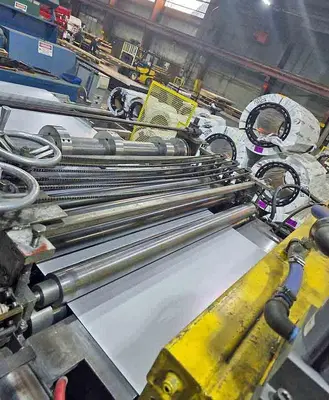

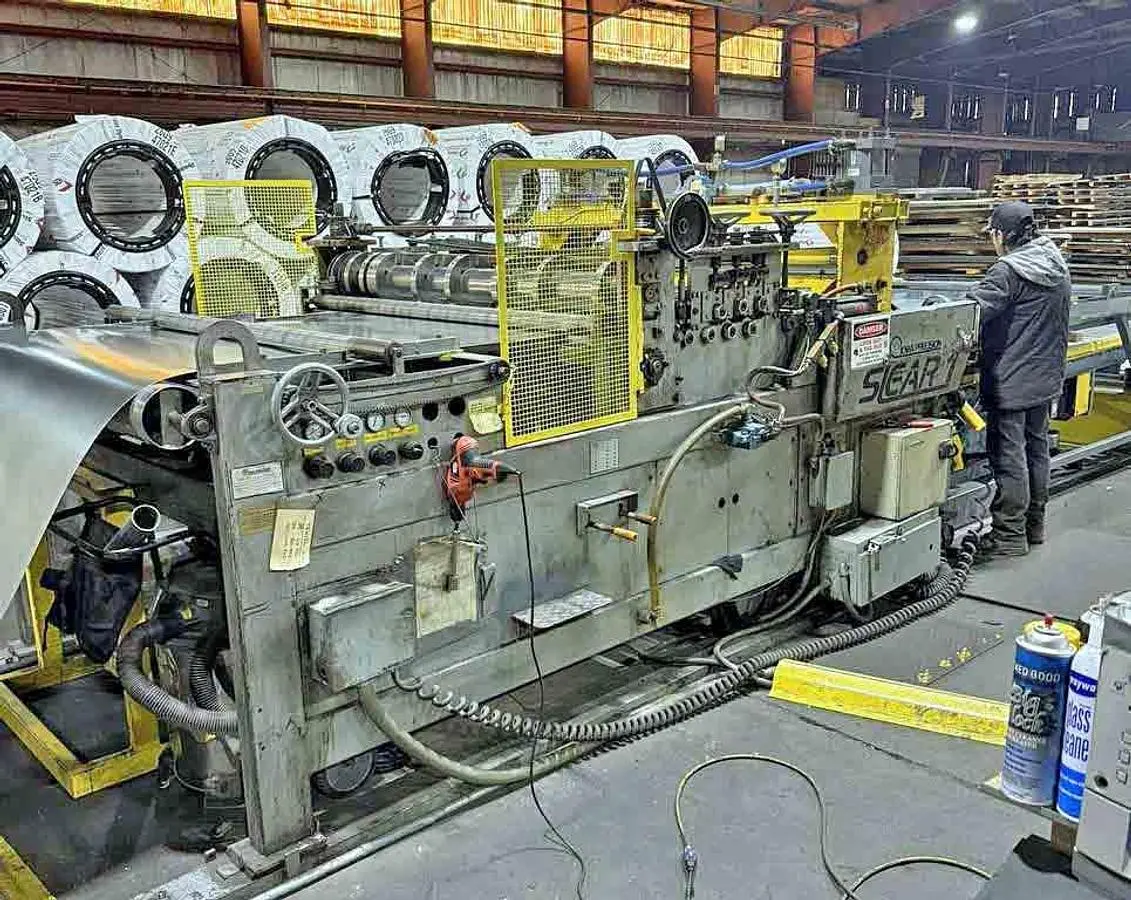

Slitter Unit: Iowa Precision
Model: SLR6016-1

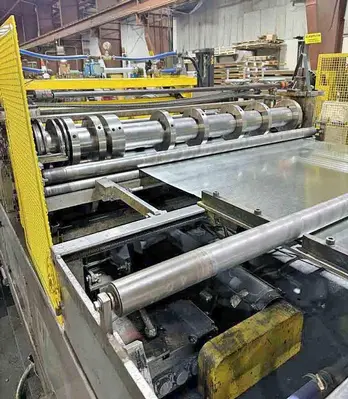

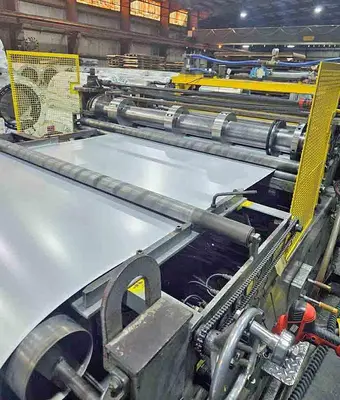

Slitter Head: 5” Diameter Arbors

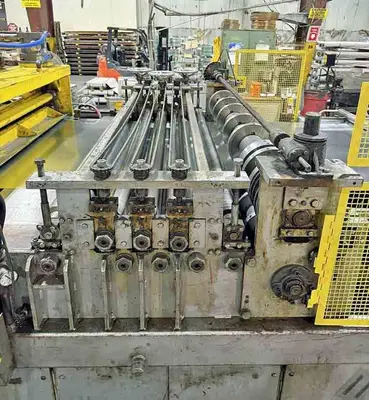

Straightener: 6 Rolls, 3.375” Diameter
Additional Components: Measuring Roll, Flying Shear

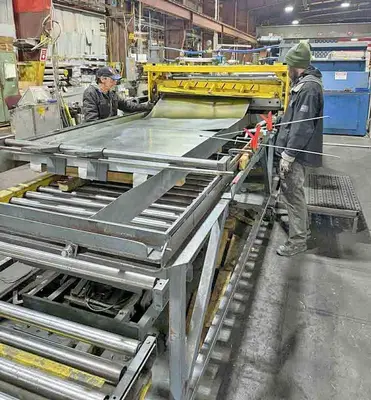

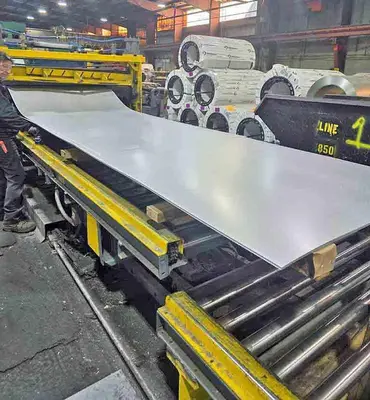

Stacker:
Length: 10 Ft.
Type: Scissors Lift Table

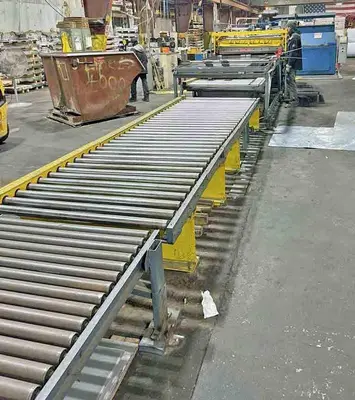

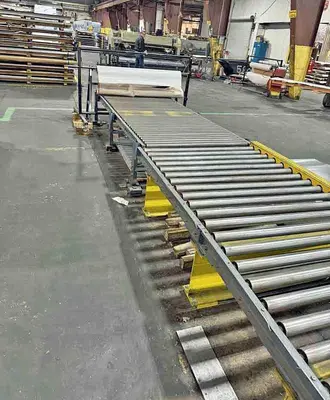

Runout Conveyor: Included
Scrap Winders: (2)
Model: SWA
*Installed And Running
