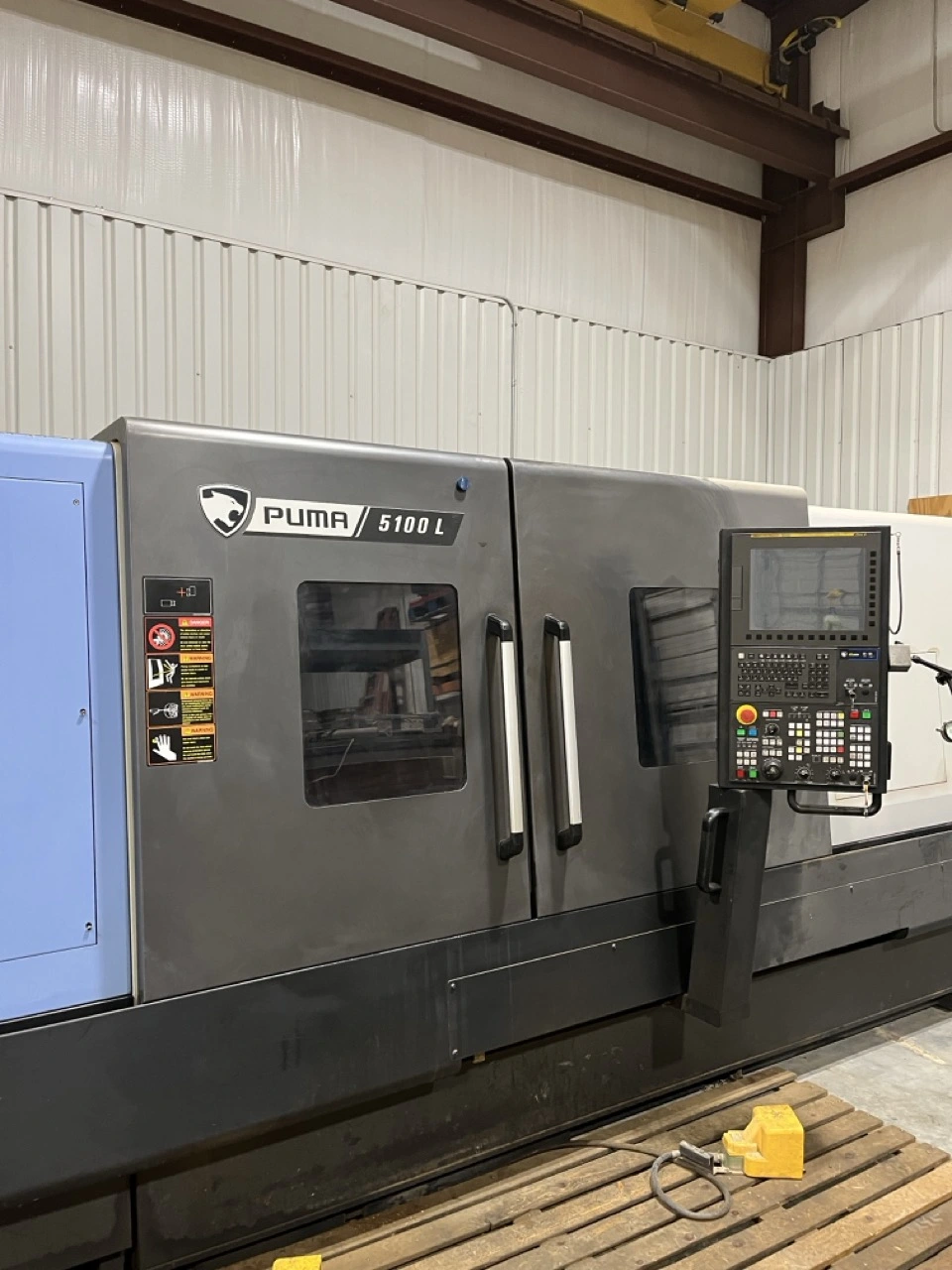

USED 2023 DN SOLUTIONS PUMA 5100LC

Swing over Bed: 35.4″
Swing over Carriage: 27.16″
Max. Turning Diameter: 25.6″
Max. Turning Length: 81.97″
Distance Between Spindle Nose and Tailstock: 90.98″
Spindle Speed: 1,000 RPM
Spindle Nose: ISO 702-4 (#20)
Spindle Bore: 10.82″
Spindle Speed Ranges: 2
X-Axis: 14.3″
Z-Axis: 84.8″

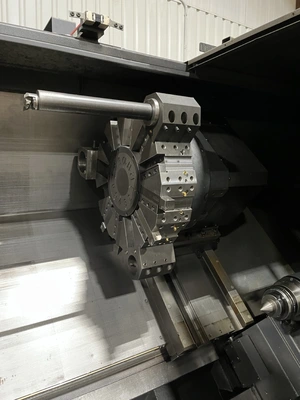

Turret Capacity: 12
Tailstock Quill Diameter: 4.7″
Quill Stroke: 4.7″
Machine Weight: 26,675 lbs.
Dimensions w/Conveyor: 277″x90″x90″
Electrical: 205-235V 3 Phase
Cutting Hours: 876
Equipped With:

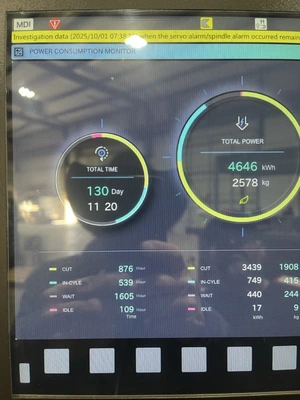

Fanuc 0i-Plus Control w/iHMi Touch Screen
Turbo Side Discharge Chip Conveyor w/Variable Speed
145psi Coolant Pump Upgrade

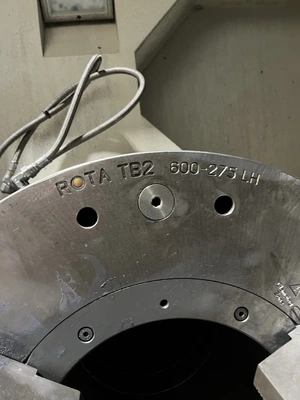

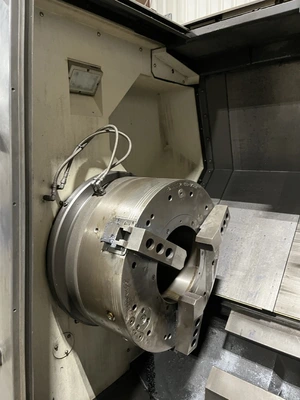

Schunk ROTA TB2 600-265 Pneumatic Air Chuck
