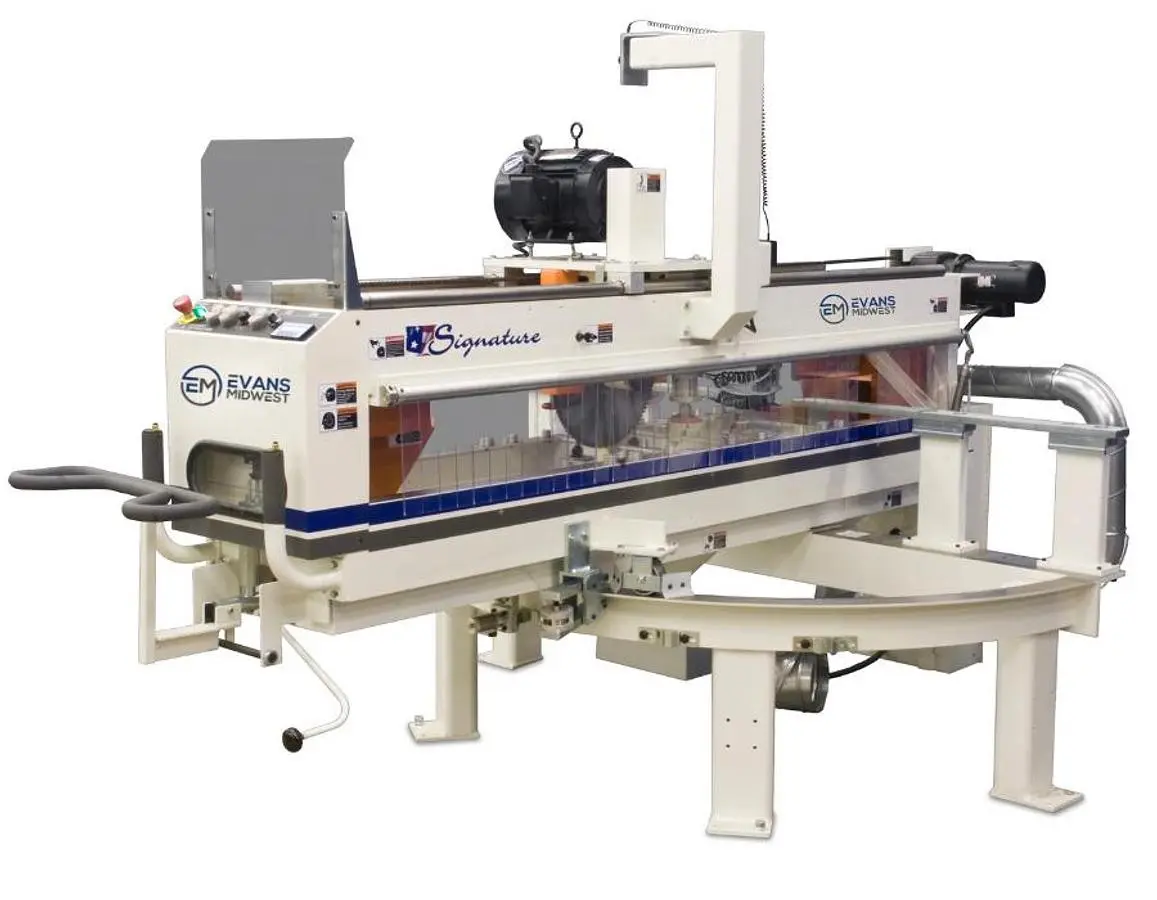

NEW EVANS CS-XL

The Evans Midwest  CS XL Cutting Station  is our most popular saw and is designed for fabricating a wide variety of kitchen countertop and vanity sizes. The CS XL has an overall cutting length of 53.5 inches (1360 mm) at 90° angle of cut, and 37.5 inches (950 mm) at 45° angle of cut. Maximum backsplash height is 4.875 inches (124 mm) from bottom of deck.

New Machine!

Built to order by Evans, typical lead time is 16 weeks.

Standard Features

Fixed stops at 22.5°, 45°, and 90° (RH & LH side) & pneumatic locking pin
5 HP saw motor with a heavy-duty arbor assembly
Variable speed forward/reverse drive
Router system includes four (4) router motors, guiding template, rotating template pin with ball bearing
Two (2) pneumatic hold down clamps per side
Heavy-duty rear fence
Three (3) dust collection hookups
Sixteen (16) inch (406 mm) saw blade and four (4) router bits
