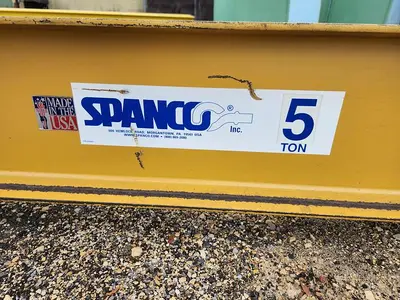

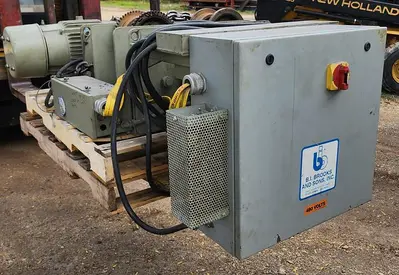

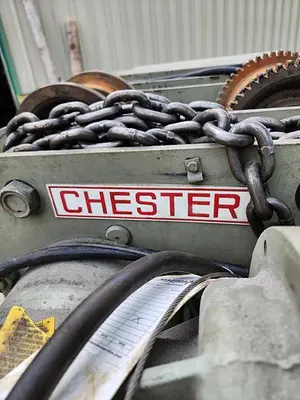

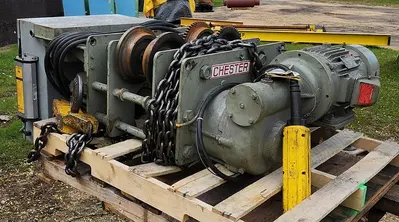

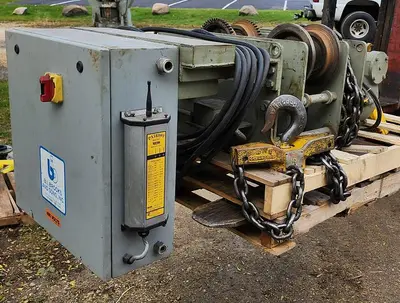

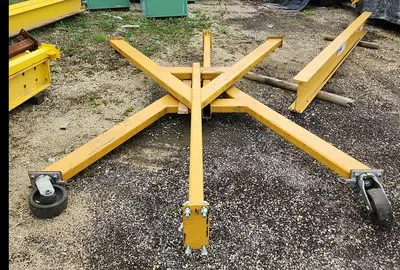

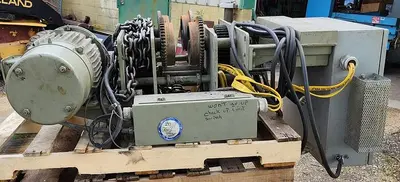

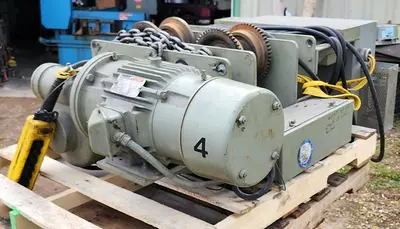

2015 Spanco 5-Ton Mobile Gantry & Chester Low-Headroom Electric HoistThis high-capacity, turnkey lifting solution pairs the legendary structural integrity of a Spanco Series F Steel Gantry with the precision and power of a Chester Electric Chain Hoist. Manufactured in 2015, this setup offers a massive 10,000 lb lifting capacity and is engineered for high-duty cycle environments where vertical clearance is at a premium.By utilizing a Chester low-headroom hoist design, this system maximizes the effective lift stroke under the 11' beam, providing significantly more working room than standard hoist configurations.Gantry Features (Spanco 5F1211.08B)12' Span & 11' Clearance: Fixed-height design provides maximum stability for heavy-load maneuvering.Heavy-Duty Steel Construction: High-strength mechanical steel tubing ensures rigid performance under full 5-ton capacity.Professional Mobility: Equipped with 8" polyurethane swivel casters featuring 4-position locks for easy tracking and secure stationary operation.Industry-Leading Durability: The 2015 build quality represents Spanco’s commitment to "made in the USA" industrial standards.Hoist Features (Chester Electric Chain)Low-Headroom Engineering: Optimized to provide the shortest possible distance between the beam and the load hook.Smooth Worm-Gear Drive: Offers superior load spotting control and quiet operation compared to standard spur-gear hoists.Robust Braking System: Designed for reliable load-holding and safety during high-frequency lifts.NEMA Rated Controls: Ergonomic pendant station designed for durability in rigorous shop environments.Technical SpecificationsSystem Capacity: 5 Tons (10,000 lbs)Year of Manufacture: 2015Serial Number: 112936-001-AGantry Span: 12' 0"Under-Beam Height: 11' 0"Power Requirement: 230/460V, 3-PhaseHoist Duty Rating: H4 (Heavy Duty)Caster Type: 8" Poly-on-Metal Swivel w/ Locks
Capacity: 5 Ton
Under Beam Height: 11'
Bridge Span: 12'
A Frame Width: 7'

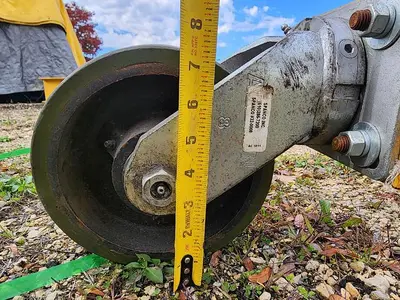

Castor Diameter: 8"
