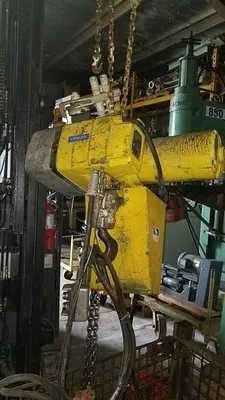

USED 1978 YALE KEL2-10H15/3.75S2

Yale 2-Ton KEL-Series Heavy-Duty Electric HoistModel: KEL2-10H15/3.75S2 | Capacity: 4,000 lbs | Duty: H4Technical SpecificationsManufacturer: Yale (Eaton Corp / CMCO)Model Number: KEL2-10H15/3.75S2Lifting Capacity: 2 Tons (4,000 lbs / 1,814 kg)Power Requirements: 460V / 3-Phase / 60HzMotor: 2.5 HP High-Torque Industrial MotorDuty Rating: H4 (Rated for heavy industrial, high-frequency lifting)Gear Train: Totally enclosed, oil-bath lubricated for life-long durabilitySerial Number: K-142580DBraking System: Heavy-duty AC spring-set motor brake for precise load holdingYear: 1978Frame: Rugged aluminum alloy housing for superior heat dissipationLift Height: 10'Performance & Engineering AdvantagesHigh-Torque 2.5 HP Motor: Unlike lighter-duty 2-ton hoists, the KEL2 utilizes a massive 2.5 HP motor, allowing for consistent lifting power without the overheating issues common in smaller units.H4 Duty Cycle: Built for the "tough jobs," this hoist is rated for high-frequency operation, ensuring it remains cool and responsive even during continuous production shifts.Superior Load Control: The automatic load brake and precision-machined gears provide smooth, stable vertical travel, giving the operator total control over expensive or delicate workpieces.Rebuildable Industrial Design: The Yale KEL-Series is prized by maintenance managers because it is fully serviceable. With its oil-bath lubrication and accessible electrical contactors, this hoist is designed to be maintained for decades rather than replaced.This Yale KEL-Series 2-Ton (4,000 lbs) electric chain hoist is a true industrial-grade workhorse, engineered for high-cycle environments and heavy manufacturing applications. The KEL-Series is legendary for its "over-built" structural design and high-torque performance, making it a preferred choice for tool and die shops, steel fabrication, and heavy assembly lines where reliability is paramount.

Lifting method: Electric
* Lift Height: 10'
