NEW 2025 Allwins Packaging Machine CW UV-05

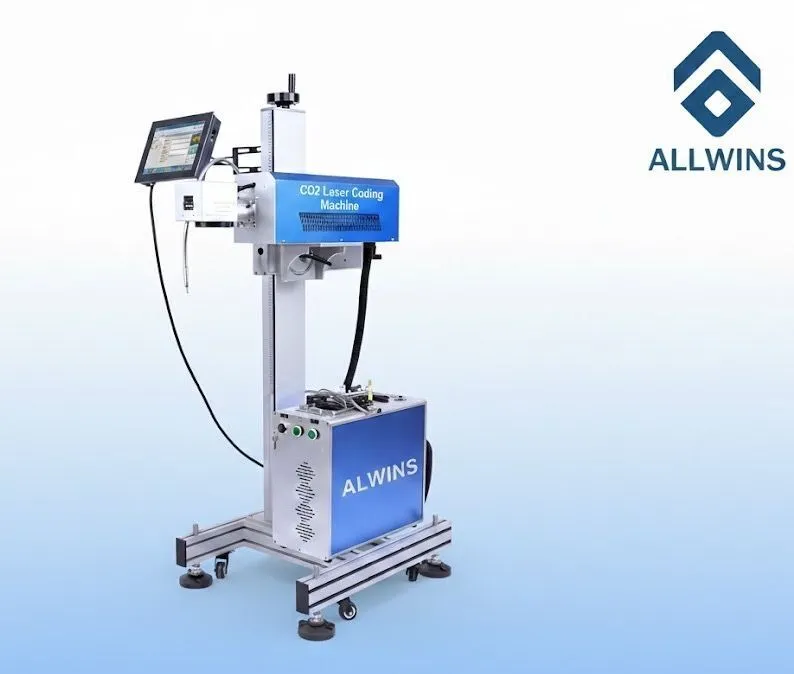

ALLWINS CO2 Integrated Laser Coding Machine – A Compact Powerhouse for Permanent, High-Quality Marking

The ALLWINS CO2 Integrated Laser Coding Machine is an advanced, all-in-one industrial solution designed for clean, permanent, and high-speed marking on a wide variety of materials. Utilizing proven CO2 laser technology, this machine creates precise, smudge-proof codes without any consumables like ink or solvents, drastically reducing your operational costs and environmental footprint.

Ideal for production lines in the food & beverage, pharmaceutical, cosmetic, and electronics industries, it seamlessly prints text, serial numbers, dynamic dates, barcodes (Code 128, EAN-13), QR codes, and even complex graphics. The system features an intuitive 10-inch touchscreen interface running a dedicated Linux OS, making operation and integration straightforward. With its compact, air-cooled design and 360° rotatable scanning head, it offers exceptional flexibility for installation in diverse factory environments. This machine is your key to achieving reliable, high-contrast coding that enhances traceability and brand presentation.

ALLWINS CO2 Integrated Laser Coding Machine - Technical Specifications

Category Specification Details / Value
Laser & Core Laser Type Sealed CO2 Laser
Output Power 40W
Wavelength 10.6μm / 10.2μm / 9.3μm
Cooling System Standard Air Cooling (No external chiller required)
Performance Marking Speed Up to 7000 mm/s
Minimum Line Width 0.03mm
Repeat Accuracy ±0.01mm
Red Light Positioning Yes (for precise marking alignment)
Compatibility Supported Materials PET, Acrylic, Glass, Leather, Plastic, Fabric, Paperboard, Rubber
Marking Content Text, Numbers, Dates, Serial Counters, Barcodes, QR Codes, Graphics, Logos
File Format PLT Vector File Input/Output
Controls & Interface Operating System Industrial-grade Linux (Embedded)
Control Panel 10-inch Industrial Touchscreen
Data Interfaces USB 2.0, SD Card Slot
Communication Standard I/O for PLC/sensor integration
Electrical & Environment Power Supply AC 220V ±10%, 50/60 Hz
Max. Power Consumption 120W
Operating Temperature -10°C to 45°C (Non-freezing)
Operating Humidity 10% to 85% RH (Non-condensing)
Storage Temperature -10°C to 45°C (Non-freezing)
Physical & Safety Scanning Head Rotation 360° adjustable
Focusing Method Dual Red-Light Focusing
Data Protection Built-in protection against data loss during power failure
Pollution Level None (No process chemicals emitted)
Safety Standards Complies with industrial laser safety regulations (Class specification to be confirmed)
