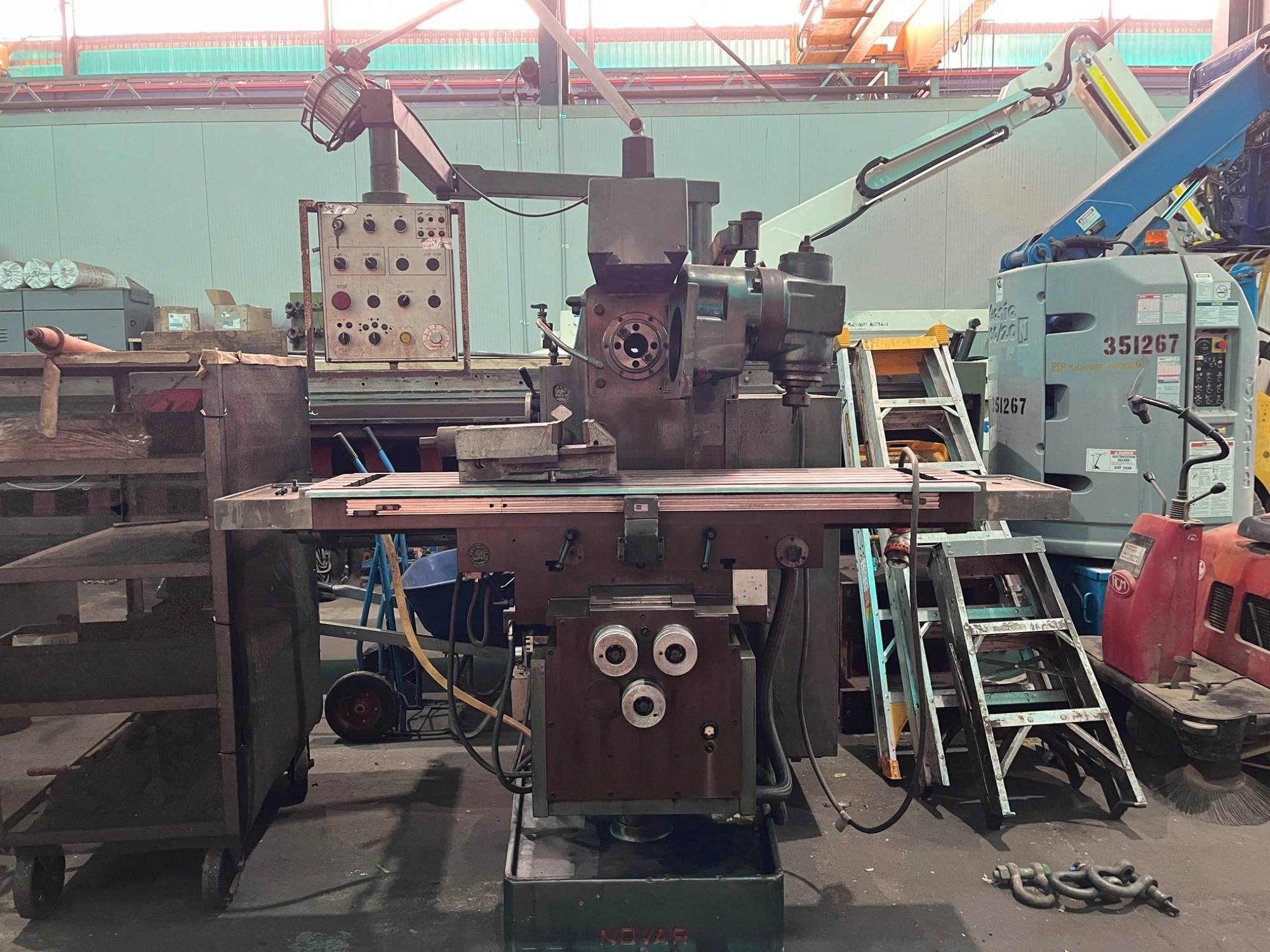

USED NOVAR 1500-K

ISO50 Taper.
Length of the working table: 1500mm
Width of the working table: 360mm
Main motor: 10 Hp.
Number of speeds of the vertical spindle: 12 steps
Vertical spindle speeds: 36 to 1500 rpm
Maximum distance of the spindle to the table: 485mm.
Travel length X-axis: 1180mm.
Travel length Y-axis: 320mm.
Travel length Z-axis: 465mm.
Machine height: 2400mm
Machine length: 2100mm
Machine width: 1850mm
Machine weight: 3500 Kgs

Novar 1500-K Universal Milling Machine – Specification Sheet

General
Model: Novar 1500-K (1500 KTO)
Machine Type: Universal Knee Type Milling Machine
Spindle Orientation: Vertical and Horizontal

Table & Travels
Table Size: 350 × 1520 mm
X-Axis Travel (Longitudinal): 1100 mm
Y-Axis Travel (Cross): 320 mm
Z-Axis Travel (Vertical): 480 mm
Spindle (Quill) Travel: 120 mm
Head Travel: 570 mm

Spindle
Spindle Speed: Up to 1500 RPM
Spindle Taper: ISO 50

Power
Main Motor Power: Approx. 7.5 kW (≈10 HP)

Features
• Universal head for vertical and horizontal milling
• Heavy-duty knee type construction
• Suitable for general machining and toolroom work
