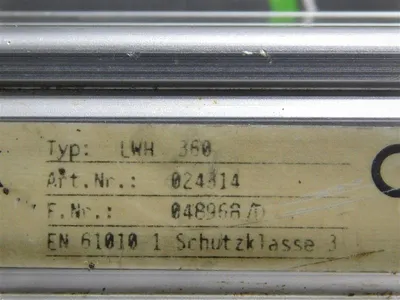

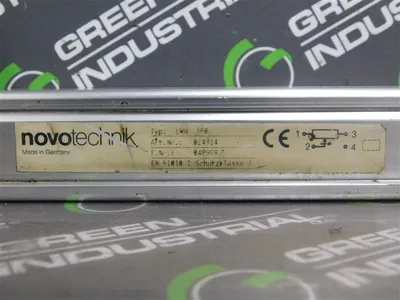

Novotechnik LWH 360 Position Transducer Art.024314 F.Nr.048968/D Used

USD $100.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

Overview
Manufacturer:
NOVOTECHNIK
Stock #:
B05727
Description

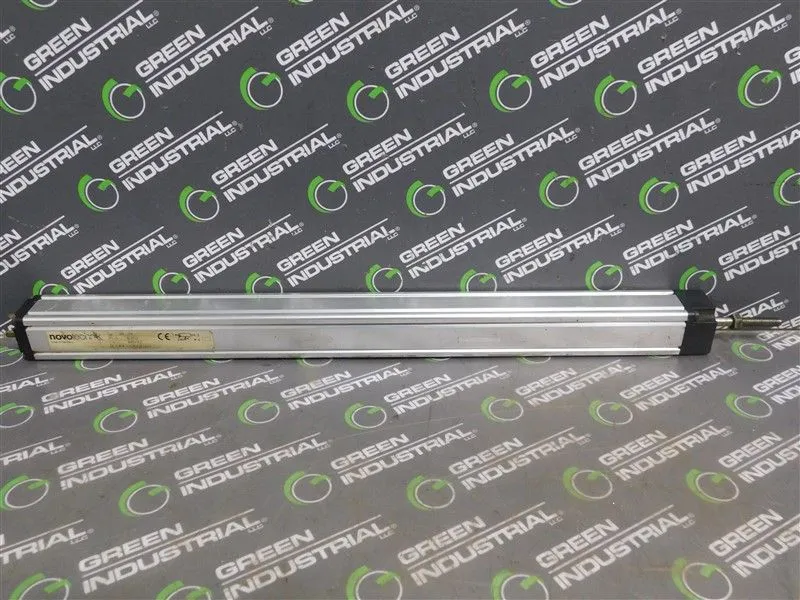

Novotechnik Position Transducer

Specifications

This is a used Novotechnik Position Transducer. Save thousands and buy used from Green Industrial today!
Manufacturer: Novotechnik
Part Number: LWH 360

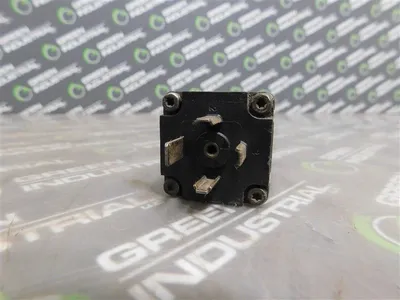

Connection: 4 Pin Connector
Electr. Measuring Range: 366 mm
Defined Electrical Range: 360 mm
Output Signal: Voltage Divider
Resistance Value: 5 Ohms
Resistance Tolerance: +/- 20%
Independent Linearity: 0.05 +/- %FS
Repeatability: ≤ ±0.01 mm
Recommended operating wiper current: ≤ 1 μA
Max. wiper current in case of malfunction: 10 mA
Max. permissible supply voltage Ub: 42 VDC
effective temp. coefficient of the output-to-applied voltage ratio: typ. 5 ppm/K
Insulation resistance (500 VDC): ≥ 10 MΩ
Dielectric strength (500 VAC, 50 Hz): ≤ 100 μA
