Conveyor Components Co. Compact Motion Switch
Conveyor Components Co. Compact Motion Switch
Model: CMS-1X
Max. RPM: 1000
DPDT Relay Contacts Rated: 3 A 120VAC, 3A 30VDC, 1/10HP 120VAC, 1/10HP 240VAC
Temp. Range: -10°C to 55°C
Line Voltage: 105 - 135 VAC 50/60 Hz
Current Rating: 28 mA

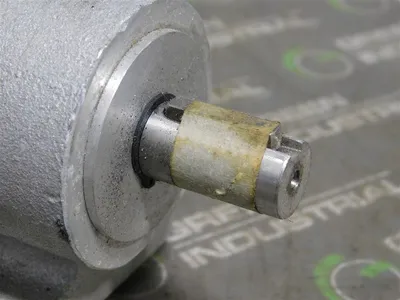

Shaft Diameter: 0.630 in
Shaft Length: 1.375 in
Keyway Width: 0.125 in
Keyway Length: 1 in
