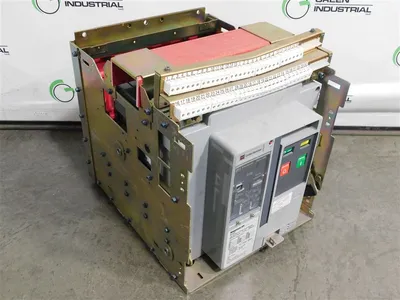

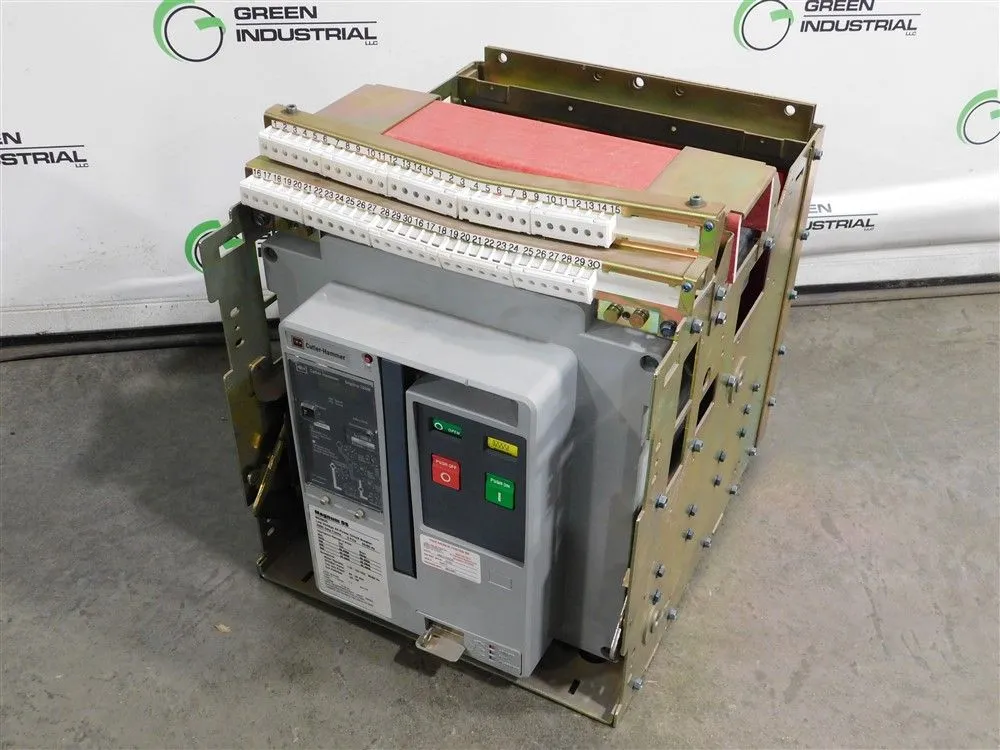

Cutler Hammer Magnum DS Low Voltage AC Power Circuit Breaker
Cutler Hammer Magnum DS Low Voltage AC Power Circuit Breaker

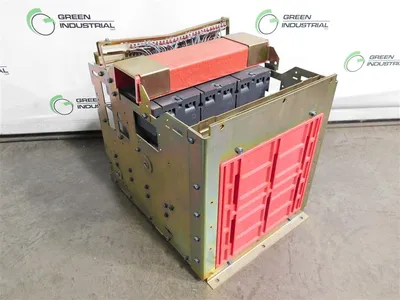

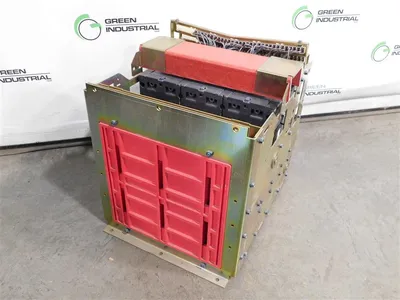

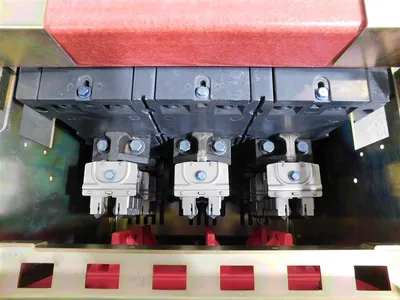

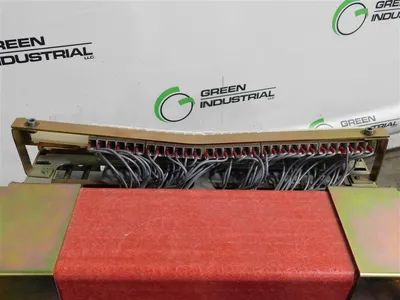

The cradle this breaker comes with does not include any copper for external connections, and the terminal bar on the top is bent downwards. Please see the pictures for more information.

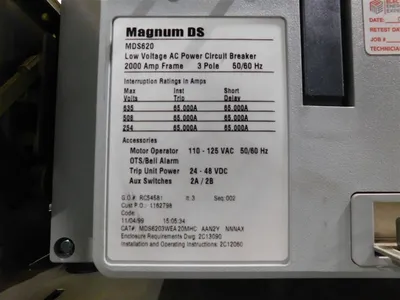

Model: MDS620
Frame Amperage: 2000 A
Poles: 3
Frequency: 50/60 Hz
Interruption Rating: 254/508/635 V Inst. Trip. 65kA Short Delay 65kA
Motor Operator: 110-125 VAC 50/60 Hz
Trip Unit Power: 24 - 48 VDC
Aux Switches: 2A / 2B
G.O.#: RC54581
It: 3
Seq: 002
Cat#: MDS6203WEA 20MHC AAN2Y NNNAX
Enclosure Requirements Dwg: 2C13090
Installation and Operating Instructions: 2C12060

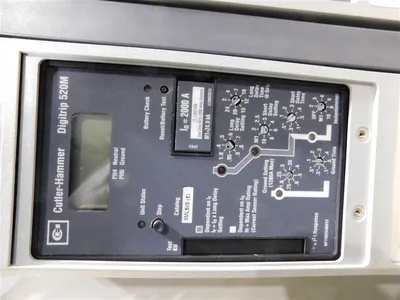

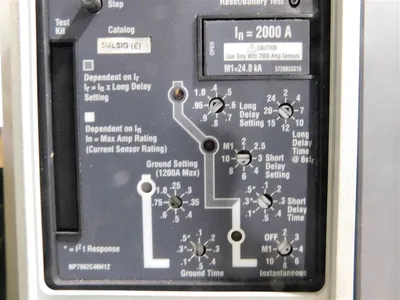

Trip Unit: Digitrip 520M
Trip Catalog No.: 5MLSIG (E)
Interrupting Speed: Long Time, Short Time, Instantaneous, Ground Fault

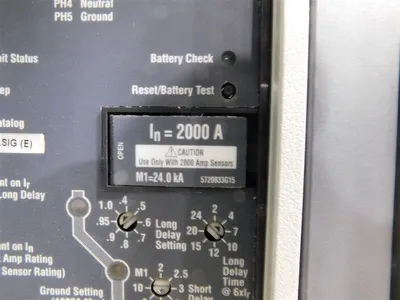

Rating Plug Amperage: 2000 A
M1=24.0 kA
