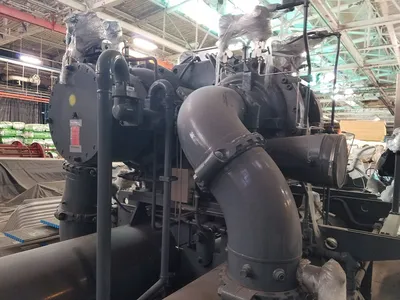

4000 HP Air Compressor 6000 SCFM 300 PSI Atlas Copco HM5 HM15000 Centrifugal Multi Stage Compressor Soot Blower

4000 HP Air Compressor 6000 SCFM 300 PSI Atlas Copco HM5 HM15000 Centrifugal Multi Stage Compressor Soot Blower

USD $49,995.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Air Compressors (Misc)
Manufacturer:
ATLAS COPCO
Stock #:
JH10609-A
Description

4000 HP Air Compressor 6000 SCFM 300 PSI Atlas Copco HM5 HM15000 Centrifugal Multi Stage Compressor Soot Blower New

Specifications

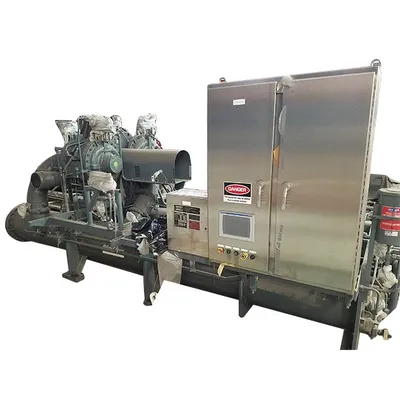

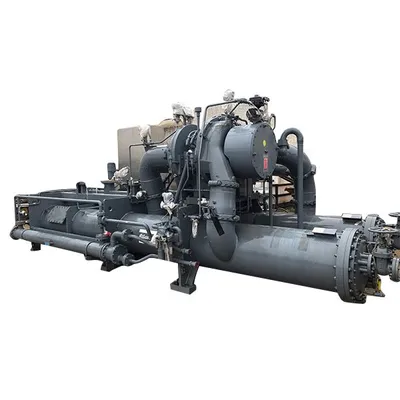

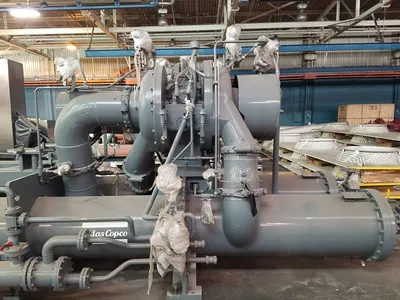

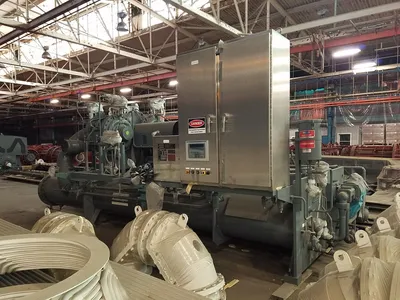

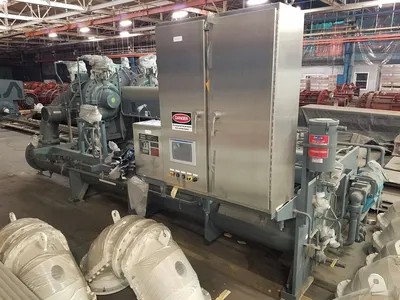

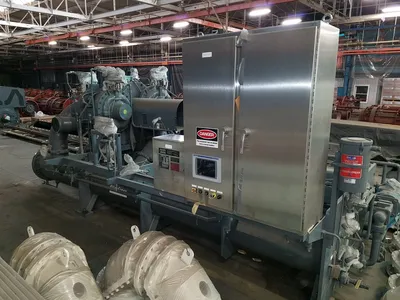

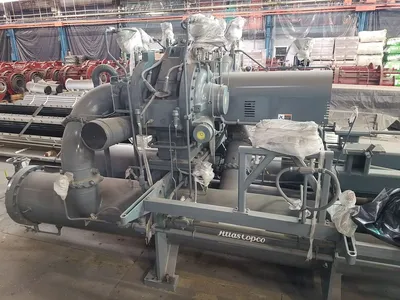

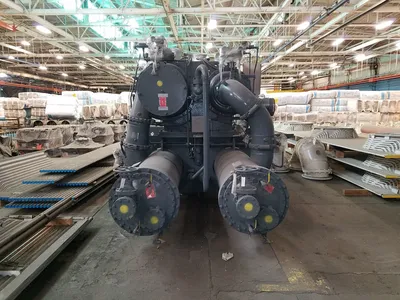

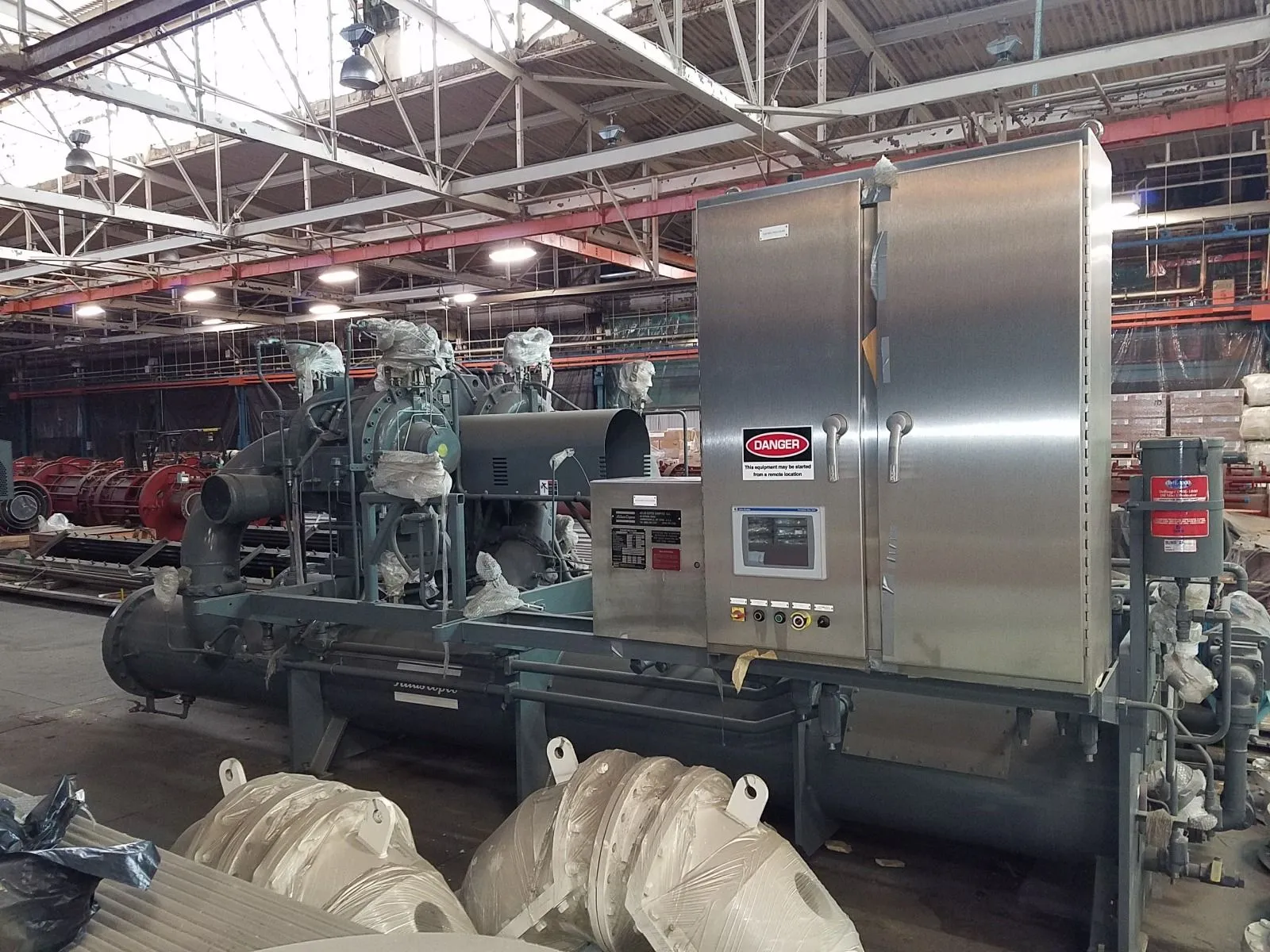

This is a NEW SURPLUS, never energized 4,000 HP Atlas Copco Centrifugal Soot Blower Air Compressor For Sale. It is being stored in climate controlled storage, with regular shaft rotation on the motor.

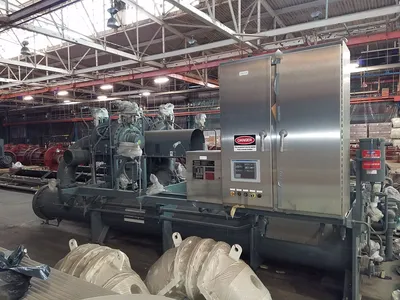

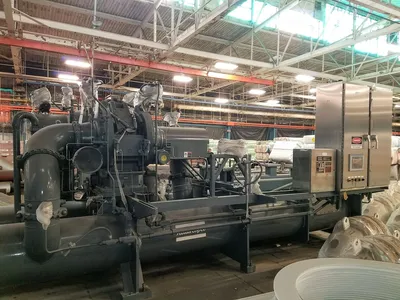

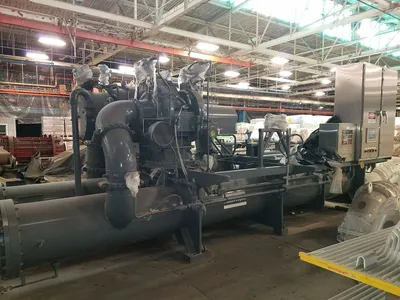

Green Industrial purchased this new from a power-plant that never was built.  It has been stored in a climate controlled warehouse since then.
This compressor was designed to operate the soot blowing operation for a large coal fired power plant.  It can be repurposed for other operations.
Save thousands and buy New from Green Industrial today!
FOB: Milwaukee, Wisconsin 53209 USACondition: New Surplus, Ready to ship.

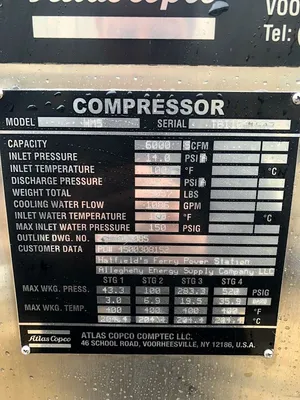

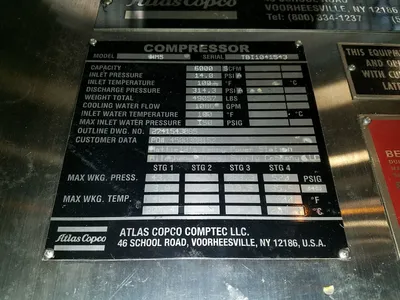

Main Package Information
Atlas Copco
Turbo Compressor
Model HM5
Serial Number : TBI1041543
Inlet Pressure : 14.0 PSI
Inlet Temp : 100 Deg F
SCFM: 6000
Discharge Pressure : 314.3 PSI
Cooling Water Flow : 1086 Gallons Per Minute
Inlet Water Temp : 100 Deg F
Max Inlet Water Pressure : 150 PSIG
Weight Total : 49,057

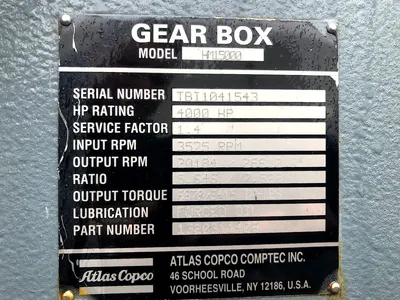

Gearbox Information
Manufacture : Atlas Copco Comptec Inc.
Model : HM15000
Serial Number : TBI1041543
HP Rating : 4000
Service Factor : 1.4
Input RPM : 3575 RPM
Output RPM : 20184/26912 RPM
Ratio : 5.646/7.528
Output Torque : 6678/3415 Inch Pounds
Lubrication : Forced Oil
Part Number : 1320311406

Electrical Components:
Driver : 4160V, 4000 HP, 3 Phase
Lubricating Oil Pump Motor : 460V, 10HP, 3 Phase
Oil Heater : Qty 2, 460 Volt, 12.07 HP, 3 Phase
Control Cabinet : 120V, 1phase
Cooling Water Supply:
Consumption, Complete : 1086 GPM
Inlet Pressure : min 70 psig
Inlet Pressure : max 150 psig
Inlet Temperature : min 45 deg f
Inlet Temperature : max 105 deg f

Oil Filling:
Quality : ISO VG 32
Quantity : 282 gallons

Electric Motor Specifications:
Brand:  Siemens
Serial Number:  3003214432-10
Type:  CAZ (TEAAC)  Totally Enclosed Air to Air Cooled
Frame:  6813
H.P.:  4000
RPM:  3600
Volts:  4160
Amps:  476
Service Factor : 1.15
Duty:  Cont
Hertz:  60
Phase:  3
Insul Class : F-VPI
Rotation: CCWA-T
Facing: B-T
Date of Manufacture : 9/2011
Shipping Information : Freight Only, FOB, Milwaukee, WI 53209
GIBUYS #:  JH10609-A
