Allen Bradley MPL-8540K-MJ24AA AC Rotary Servo Motor 4000RPM 5.4kW Series A Used

Allen Bradley MPL-8540K-MJ24AA AC Rotary Servo Motor 4000RPM 5.4kW Series A Used

USD $2,550.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Servo Motors
Manufacturer:
ALLEN BRADLEY
Stock #:
B05774
Description

Allen Bradley AC Servo Motor

Specifications

This is a used Allen Bradley AC Servo Motor. Save thousands and buy used from Green Industrial today!

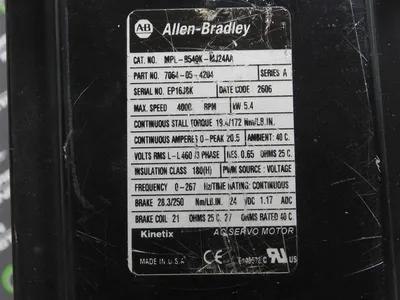

Manufacturer: Allen Bradley
Cat. No.: MPL-8540K-MJ24AA
Part No.: 7064-05-4204
Series: A
Date Code: 2606
Max. Speed.: 4000 RPM
kW: 5.4
Cont. Stall Torque: 19.4/172 Nm/LB.IN.
Continuous Amperes: 0-Peak 20.5
Ambient: 40 C
Volts RMS: L - L 460 /3 Phase
Res.: 0.65
Ohms: 25 C
Insulation Class: 180(H)
PWM Source: Voltage
Frequency: 0 - 267 Hz
Time Rating: Continuous
Brake: 28.3/250 Nm/LB.IN. 24 VDC 1.17 ADC
Brake Coil: 21 Ohms 25 C. 27 Ohms Rated 40 C
Shaft Diameter: 1.1040 in
Shaft Length: 2.750 in
Keyway Width: 0.3085 in
Keyway Length: 1.875 in
