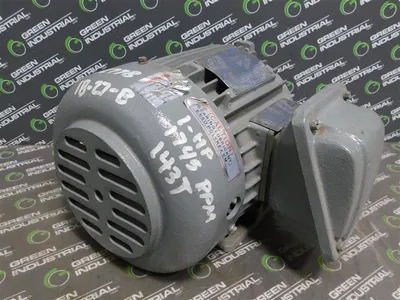

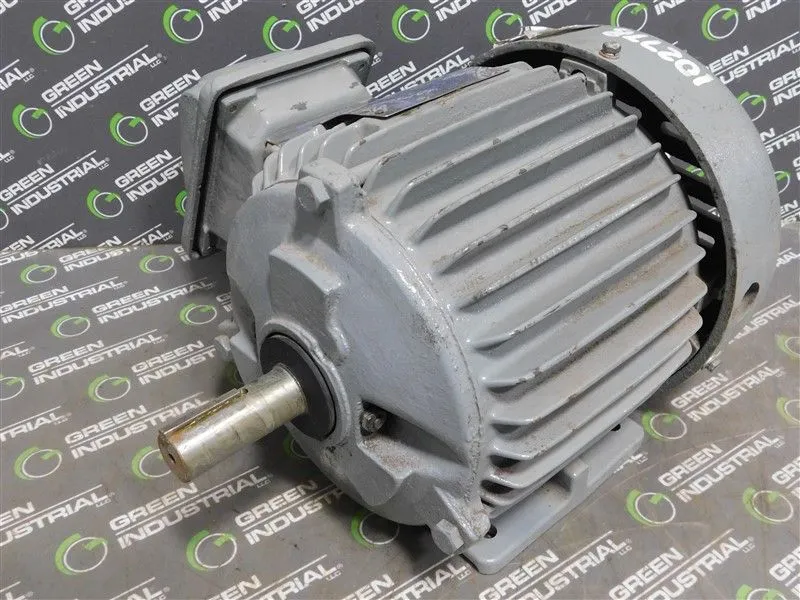

Westinghouse AEHH8N Inverter Duty Motor EP0014 1HP 1800-3600RPM Chp 460V Used

Westinghouse AEHH8N Inverter Duty Motor EP0014 1HP 1800-3600RPM Chp 460V Used

USD $200.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Motors (misc)
Manufacturer:
WESTINGHOUSE
Stock #:
B02703
Description

TECO Westinghouse Premium Efficiency Inverter Duty Motor

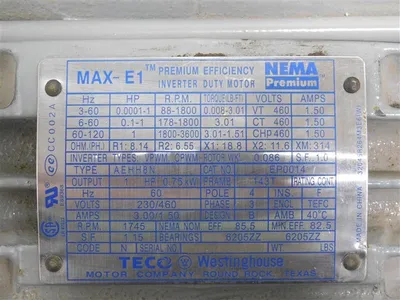

Specifications

This is a used TECO Westinghouse Premium Efficiency Inverter Duty Motor. Save thousands and buy used from Green Industrial today!
Type: AEHH8N
Cat. No.: EP0014
3-60 Hz Rating: 0.0001-1 HP, 88 - 1800 RPM, 0.008-3.01 Lb-Ft Torque, VT 460V, 1.50 Amps
6-60 Hz Rating: 0.1-1 HP, 178-1800 RPM, 3.01 Lb-Ft Torque, CT 460V, 1.50 Amps
60-120 Hz Rating: 1 HP, 1800-3600 RPM, 3.01 - 1.51 Lb-Ft Torque, CHp 460V, 1.50 Amps
Ohm. (Ph.): R1: 8.14, R2: 6.55, X1: 18.8, X2: 11.6, XM 314
Inverter Types:CPWM, CPWM,
Rotor WK: 0.086
Service Factor: 1.0
Output: 1 HP, 0.75kW
Frame: 143T
Hz: 60
Pole: 4  Ins.: F
Volts: 230/460
Phase: 3
Enclosure: TEFC
Amps: 3.00 / 1.50
Design: B
Amb.: 40°C
RPM: 1745
NEMA Nom. Eff.: 85.5
Min. Eff.: 82.5
Service Factor: 1.15
Bearings: 6205ZZ, 6205ZZ
Code: N
Shaft Diameter: 22.25 mm
Shaft Length: 1-3/8 in
Keyway Width: 5 mm
Keyway Length: 35.45 mm
