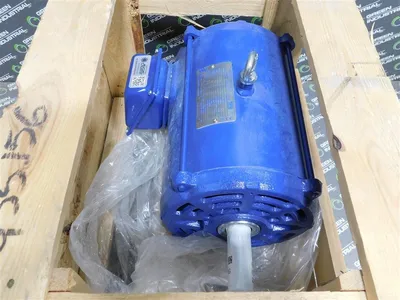

TECO Westinghouse DTP0054G Motor Frame 184T 60Hz 230/460V 50Hz 190/380V New

TECO Westinghouse DTP0054G Motor Frame 184T 60Hz 230/460V 50Hz 190/380V New

USD $925.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Motors (misc)
Manufacturer:
WESTINGHOUSE
Stock #:
B01647
Description

TECO Westinghouse Premium Efficiency Induction Motor

Specifications

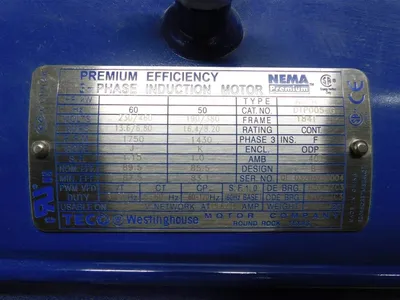

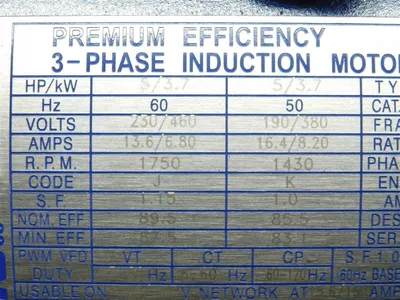

TECO Westinghouse Premium Efficiency Induction Motor
Type: ASGH
Cat. No.: DTP0054G
Frame: 184T
Rating: Cont.
Phase: 3
Ins.: F
Encl.: ODP
Amb.: 40°
Design: B
Output: 5 HP, 3.7kW
Hz: 60
Volts: 230/460
Amps: 13.6/6.80
RPM: 1750
Code: J
S.F.: 1.15
Nom. Eff.: 89.5
Min. Eff.: 87.5
PWN VFD DUTY: VT 3-60Hz, CT 6-60Hz, CP 60-120Hz
Service Factor: 1.0 (60Hz Base)
Usable on 200/208V Network at 15.6/15.0 Amp.
Weight: 77 lb
Shaft Diameter: 1.1315 in
Shaft Length: 1.7500 in
Keyway Width: 0.2500 in
Keyway Length: 1.7750 in
