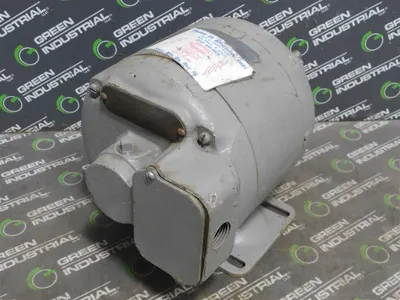

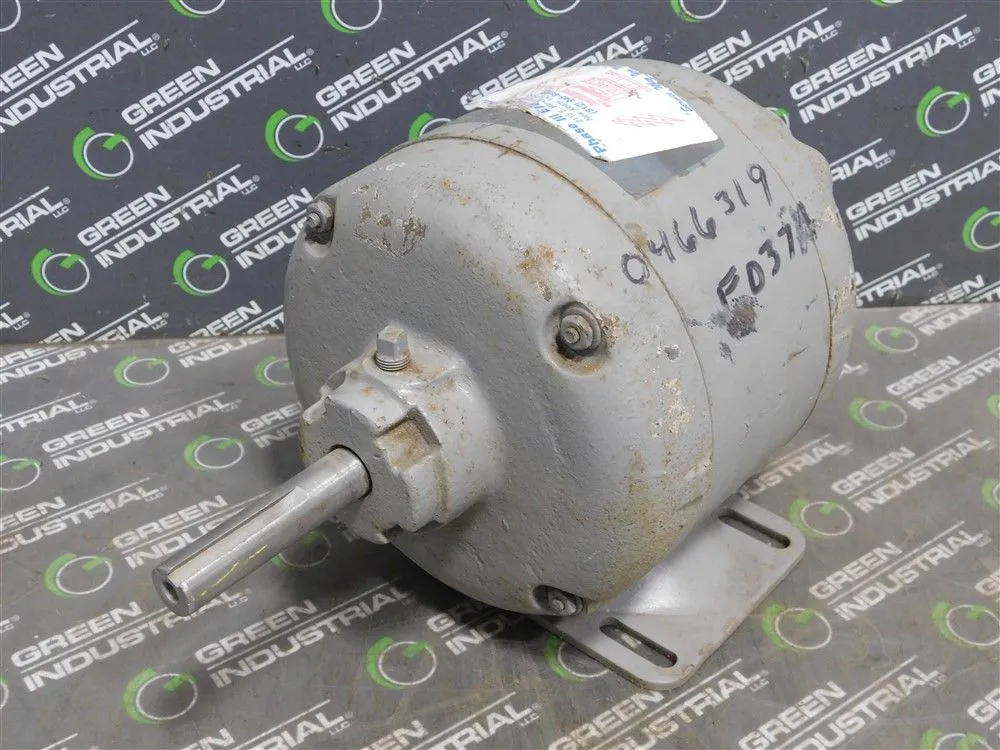

General Electric AC Motor with Thermal Protection
General Electric AC Motor with Thermal Protection

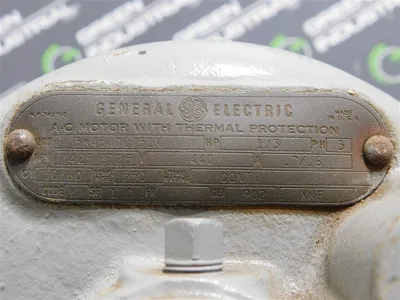

Model: 5K45AC2731X
HP: 1/3
Phase: 3
RPM: 1425/1725
Voltage: 440
Amperage: 0.7/0.6
Cycle: 50/60 Hz
Temp. Rise: 55°C
Time Rating: CONT.
Code: K
Service Factor: 1.0
GEI: 902
XNF
Shaft Diameter: 0.627"
Shaft Length: 2.625"
Keyway Width: 0.19"
Keyway Length: 1.65"
