North American Electric Inc. H3610 Induction Motor 10HP 3535RPM 230/460V Used

North American Electric Inc. H3610 Induction Motor 10HP 3535RPM 230/460V Used

USD $450.00
1 available

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Motors (misc)
Manufacturer:
NORTH AMERICAN ELECTRIC INC.
Stock #:
54539W
Description

North American Electric Inc. Electric Motor

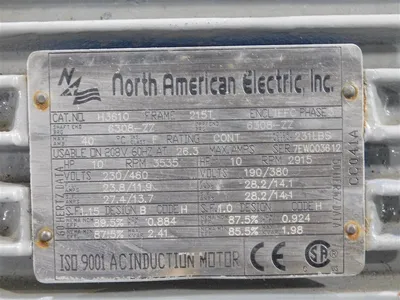

Specifications

North American Electric Inc. Electric Motor
Cat. No.: H3610
Frame: 215T
Enclosure: TEFC
Phase: 3
Shaft End. Bearing: 6308-ZZ
Opp End. Bearing: 6308-ZZ
Max. Amb.: 40°C
Ins. Class: F
Rating: CONT
Motor Weight: 231 lbs
Usable on 208V 60Hz at 26.3 Max. Amps
60 Hz Ratings
HP: 10
RPM: 3535
Volts: 230/460
F.L.Amps: 23.8/11.9
S.F. Amps: 27.4/13.7
Service Factor: 1.15
Design Letter: B
Code: H
NEMA Nom. Eff.: 89.5%
NEMA Min. Eff.: 87.5%
Nom. P.F.: 0.884
Max. kVar: 2.41
50 Ratings
HP: 10
RPM: 2915
Volts: 190/380
F.L. Amps: 28.2/14.1
S.F. Amps: 28.2/14.1
Service Factor: 1.0
Code: H
NEMA Nom. Eff.: 87.5%
NEMA Min. Eff.: 85.5%
Nom. P.F.: 0.924
Max. kVar: 1.98

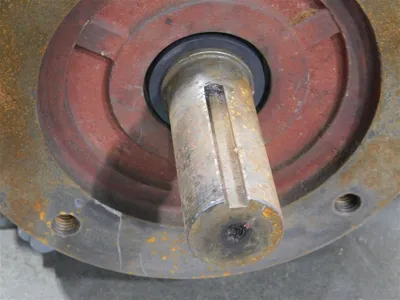

Shaft Length: 3.5 in
Shaft Diameter: 1.3775 in
Keyway Width: 0.30 in
Keyway Length: 2.5 in
