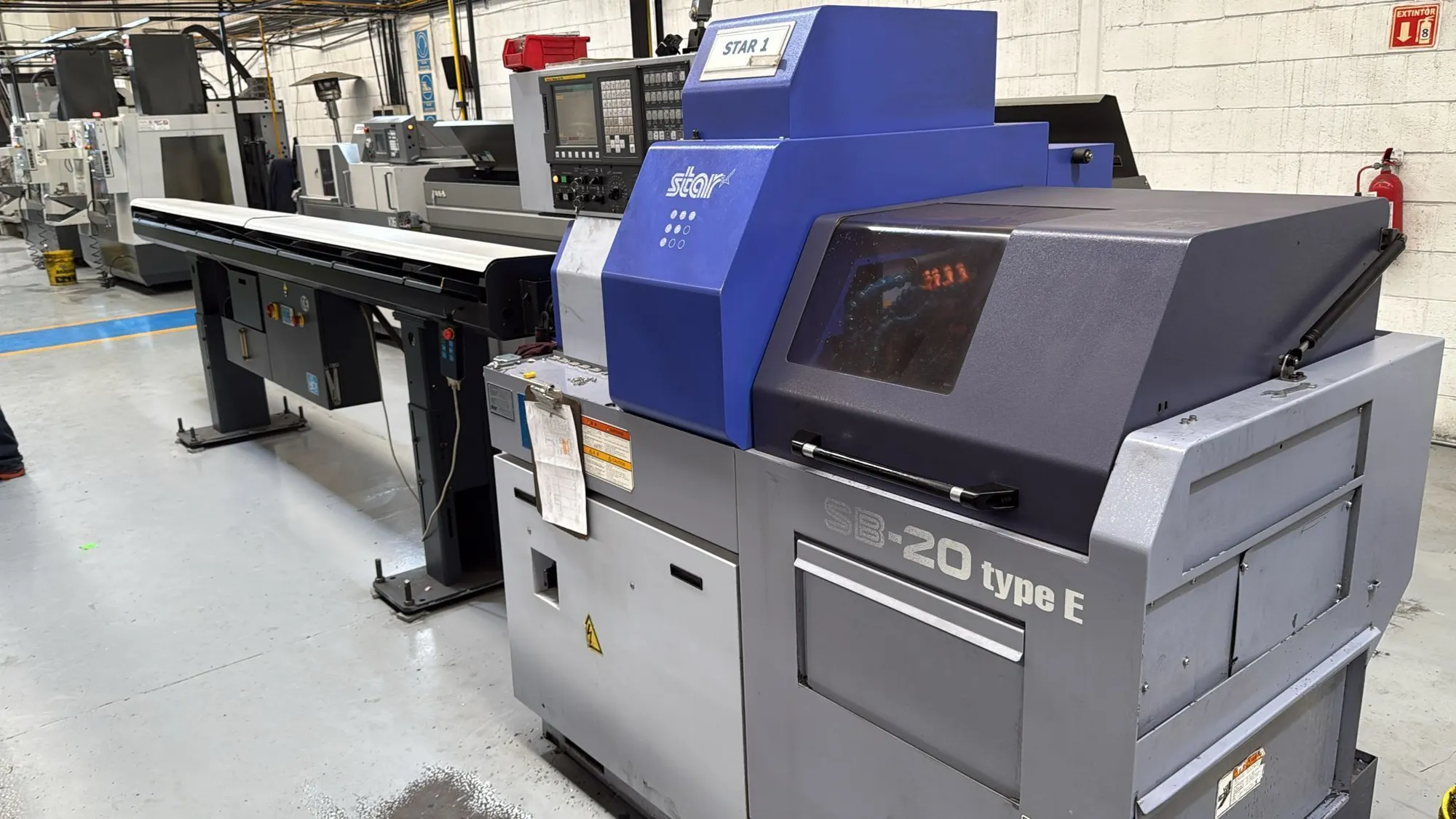

2012 STAR SB-20R TYPE E CNC Swiss Lathe for sale. Features 20 mm capacity, 3.7 kW power, and 10,000 RPM. Equipped with full C spindle indexing. Includes 6 tools weighing 1,700 kg. Compact design: 1,895mm x 1,133mm x 1,750mm. Ideal for precision work.
| Capacity | 20 mm | 0.7874" |
| Power | 3.7 kW | 5 hp |
| RPM | 10,000 RPM | 10,000 RPM |
| Main Spindle Indexing | Full C | Full C |
MAX. HEADSTOCK 183MM
STROKE REVOLVING GB 155MM
MAX. DRILLING CAPABILITY 10MM
RAPID FEED RATE 35M/MIN (X,Y.Z.XB.ZB)
MAX. TAPPING CAPABILITY M8XP7 .25
TOOL 6 TOOLS (□12MM)
WEIGHT 1,700 KG
DIMENSIONS WXDXH 1,895MM X 1,133MM X 1,750MM
