Overview
Type:
Transformers
Manufacturer:
JEFFERSON ELECTRIC
Stock #:
JH-423-9231-000
Description

NEW IN STOCK 75 KVA STEP UP DRY TYPE TRANSFORMER

Specifications

This is a FACTORY NEW Jefferson Electric dry type (STEP UP) transformer for sale.  We are a Wisconsin based authorized Jefferson dealer with many transformers IN STOCK and ready to ship.  We can also custom order any voltage in nearly any size, just ask!  We are here to help!   All of our Jefferson transformers come standard with a NEMA 3R, Rainproof outdoor enclosure allowing them to be installed both indoor or outdoor.  All units come with a 10 year limited factory warranty.
This transformer is specially designed to step up your three phase 208 Volt to 480Y/277 Volt, with a supplied 4th wire neutral.
Save thousands and buy NEW from Green Industrial today!

Factory New Dry Type Energy Efficient Transformer
10 YEAR LIMITED WARRANTY

Manufacturer : Jefferson Electric
Catalog Number : 423-9231-000
KVA : 75
Phase : 3
Primary Voltage / High Side : 208 Delta
Secondary Voltage / Low Side : 480Y/277, 4 Wire
Max Temp Rise : 150 Deg C
Impedance : 4.6 %
Lugs Included : YES
Efficiency : Meets DOE-2016 Efficiency Standards
Enclosure Type : NEMA 3R (Indoor AND Outdoor Rated)
Winding Material : AL / AL
 Primary Side Taps : 218, 213, 208, 203, 198, 192, 187
Secondary Connections : 480 Volt - Line-Line (&) 277 Volt - Line-Neutral
Condition : Factory New
Warranty : 10 Year Limited Warranty

Actual Transformer Weight : 605 Pounds

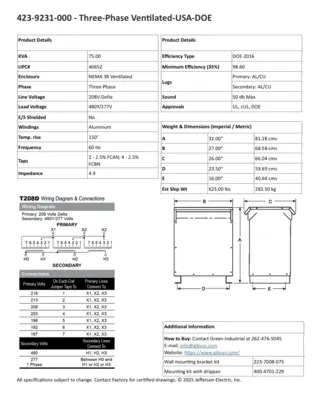

Actual Transformer Dimensions : 27 Inches Wide x 26 Inches Deep (Including the rain shield) 21 Inches Deep at the base (no rain shield included in that measurement) x 32 Inches Tall (Also See Attached Drawing in photos Section)
Shipping Weight and Dims : 680 Pounds, 48x48x60
Ships From : Belgium, WI 53004

Gibuys Item Number : JH-423-9231-000
