75 kva dry type transformer 240 delta to 208y/120 FACTORY NEW, 10 YEAR WARRANTY 423-9232-000

75 kva, 240 delta to 208y/120

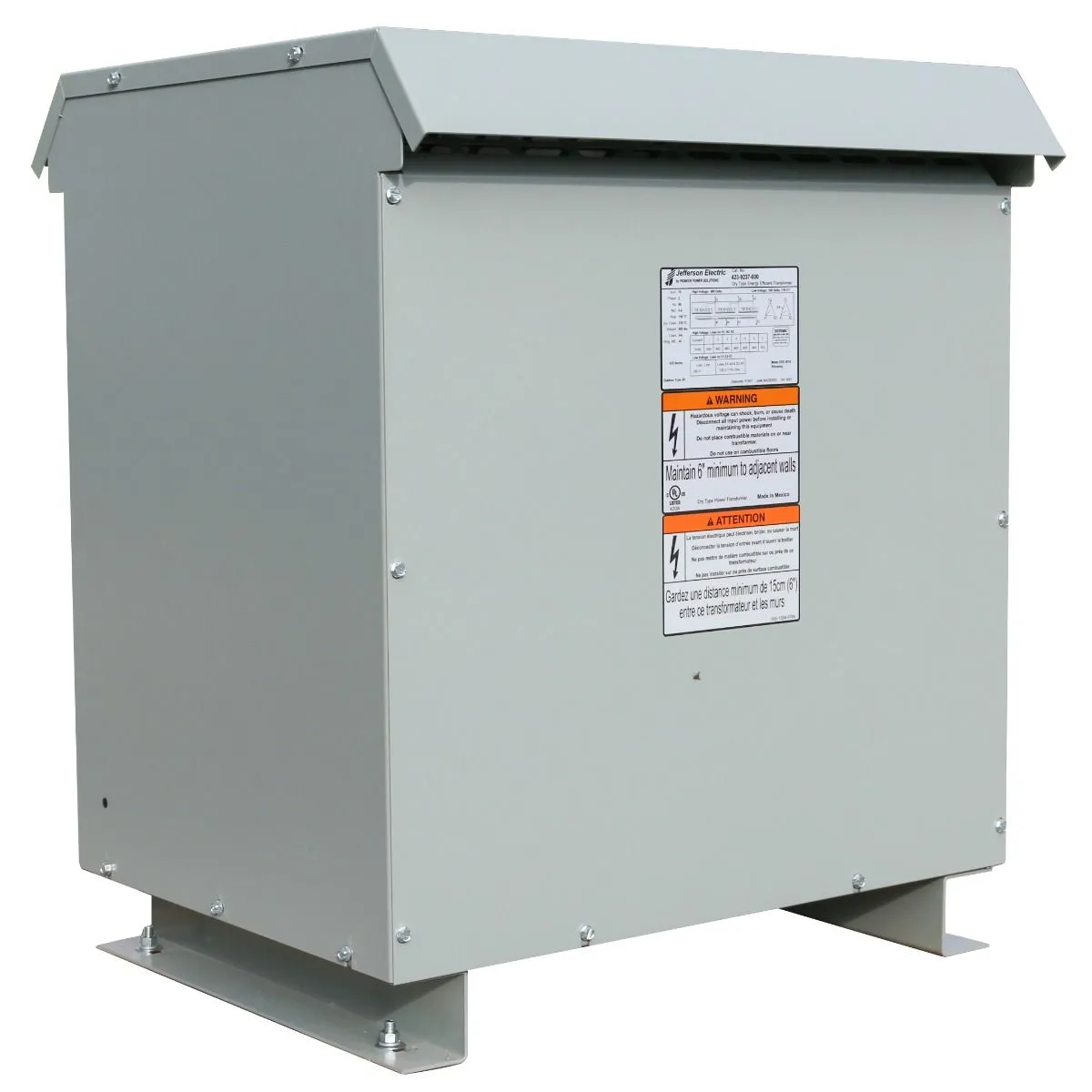

This is a FACTORY NEW STEP DOWN Jefferson Electric Dry Type Transformer.  It will bring your 240 Volt Three Phase Delta (3 wire) down to 208Y/120 (4 wire).

10 YEAR LIMITED WARRANTY
FREE SHIPPING...see notes below

Manufacturer : Jefferson Electric
Catalog Number : 423-9232-000
KVA : 75
Phase : 3
PRIMARY VOLTAGE / INPUT / LINE SIDE : 240 Delta, 3 Wire (3 Phase)
Primary Feed INPUT Amps / Line Side : 180 Amps of 240 volt, 3 phase, 3 Wire
SECONDARY VOLTAGE / OUTPUT / LOAD SIDE : 208Y/120, 4 Wire (3 Phase)
Secondary Output Amps / Load Side : 208 Amps of 208Y/120, 3 phase,  4 Wire
This means that you feed this transformer 180 Amps of 240 Delta, 3 Phase, 3 Wire and you will receive 208 amps of 208Y/120, 3 phase, 4 wire.
Max Temp Rise : 150 Deg C
Lugs Included : YES
Efficiency : Meets DOE-2016 Efficiency Standards
Enclosure Type : NEMA 3R (Indoor AND Outdoor Rated)
Winding Material : AL / AL
 Primary Side Taps : YES!
Condition : Factory New
Warranty : 10 Year Limited Warranty

*FREE Freight shipping is only available for standard commercial loading dock and non-residential address' that do not require extra fees for lift gate services.  No exceptions to this rule apply. If the shipping vendor states the address needs LIFT GATE, a $150 fee will be added.  The address listed as your ship to address upon sale is the address that will be used to acquire this information.  Please ensure that your "SHIP TO" address is accurate before purchasing.  Furthermore, FREE FREIGHT shipping is only available to the continental USA. (No Canada, No MX, No Islands, No Residential) Thank you, team GIBUYS!

Gibuys Item Number : JH-423-9232-000
