Rexnord ZNT8220712 Self-Aligning Take-Up Roller Bearing Assembly 2-7-16" Used
Description
Rexnord Bearing Assembly
Specifications

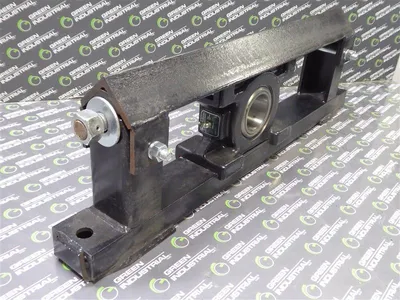

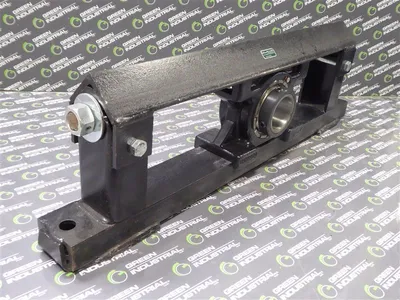

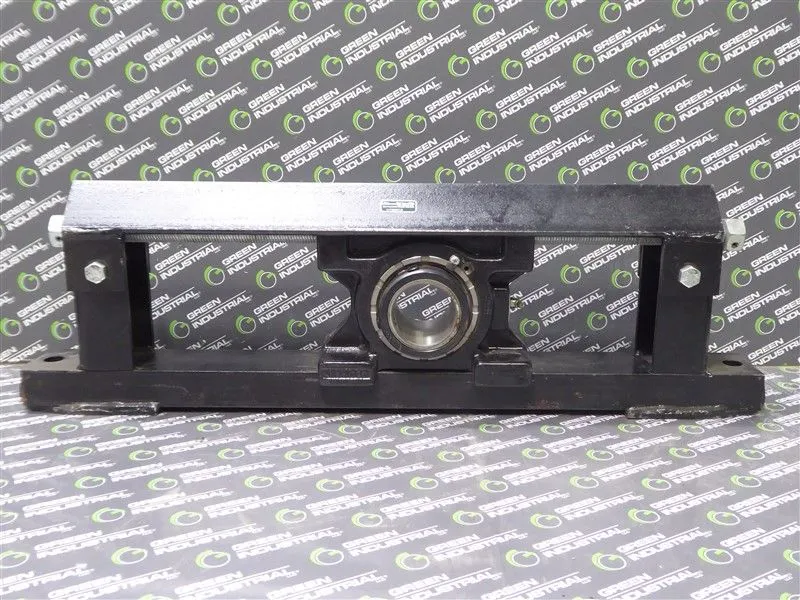

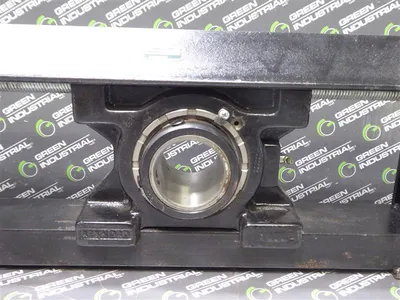

This is a used Rexnord Self-Aligning Take-up Bearing Assembly. Save thousands and buy used from Green Industrial today!

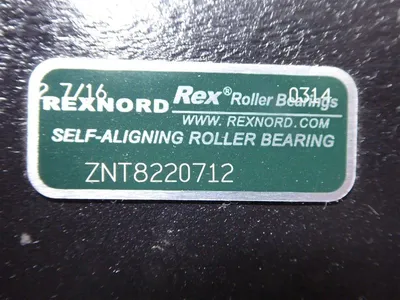

Assembly Part#: ZNT8220712
Base to Centerline Height: 4-3/8 in
Frame Bolt Hole Spacing: 28-1/2 in
Frame Length: 30-1/2 in
Length Through Bore: 3-1/2 in
Mounting Pad Width: 3-1/2 in
Mounting Bolt Size: 3/4 in
Mounting Pad Height: 1-3/4 in
Channel Width: 3 in
Distance from Frame Bolt Hole Center to Bearing Centerline: 8-1/4 in
Overall Frame Height: 9-1/8 in
Frame Centerline to Inner Ring Short Hub Face: 1-5/16 in
Overall Rod Length: 27-3/4 in
Adjusting Screw Thread Size: 7/8-9 NC
Housing Width: 3-15/16 in
Frame Material: Welded Steel
Frame Type: Protected Screw Take-up Assembly
Grease Fitting Size: 1/8 in NPT
Maximum Speed: 3300 rpm
Maximum Temperature (°F (°C)): 225 (107)

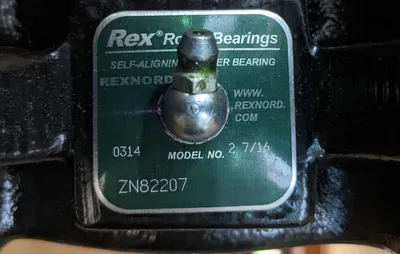

Take-up Bearing: ZN82207
Bearing Bore: 2-7/16 in
