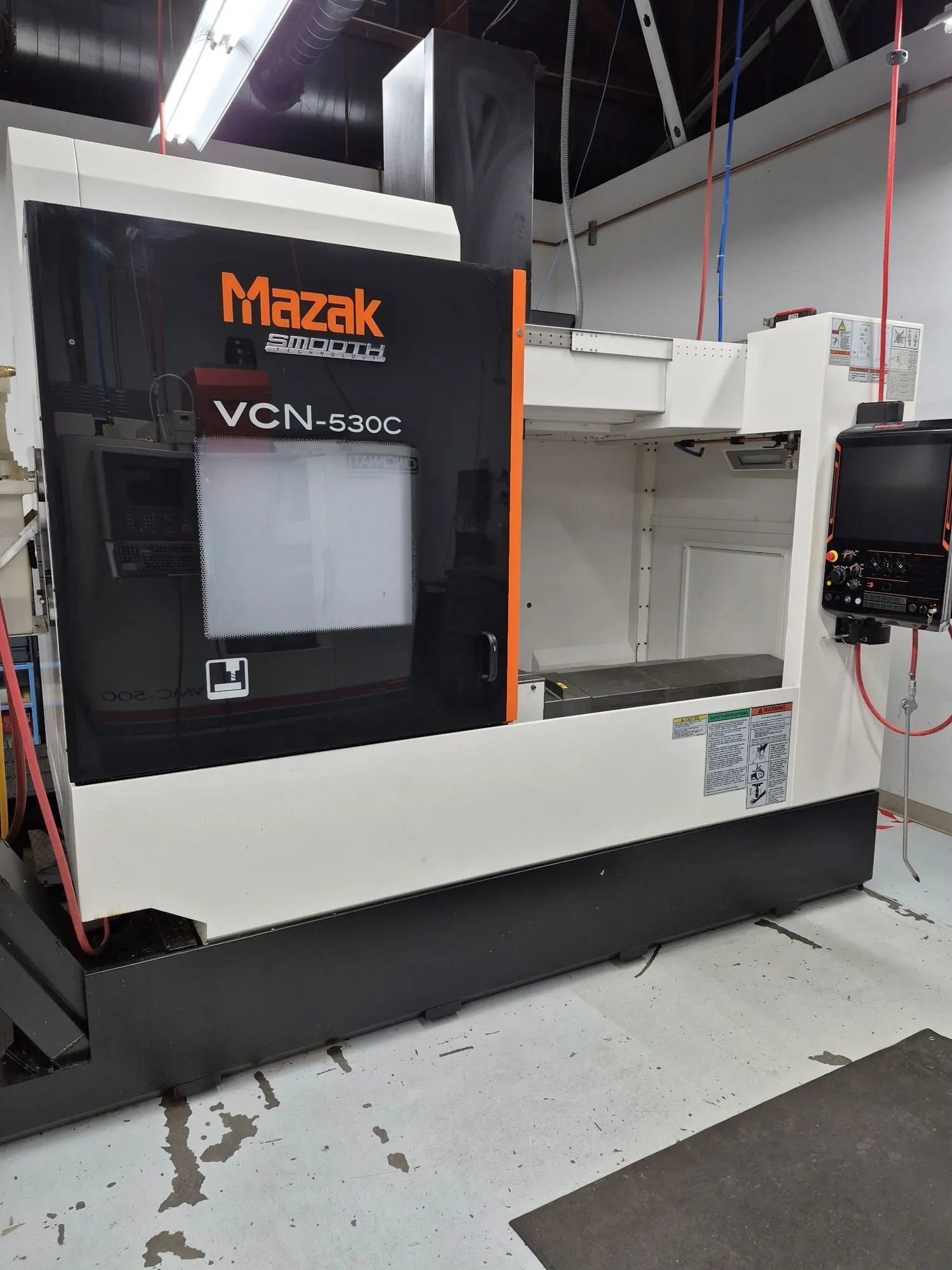

2018 Mazak VCN 530C Vertical Machining Center with Smooth G Control, offers precision with X/Y/Z travels of 41.31"/20.08"/20.08". Equipped with a 15 hp motor, 15000 rpm, 30-tool capacity, and BT 40 spindle. Includes 4-axis table rotation and chip conveyor.
| X Travel | 41.31" | 1,049.3 mm |
| Y Travel | 20.08" | 510.03 mm |
| Z Travel | 20.08" | 510.03 mm |
| Spindle Speed | 15000 rpm | 15,000 RPM |
| Tool Capacity (ATC) | 30 | 30 |
| Table Size (W) | 51.1" | 1,297.9 mm |
| Table Size (L) | 21.65" | 549.91 mm |
| Main Spindle Motor | 15 hp | |
| Spindle Taper | BT 40 | BT 40 |
| Spindle Nose To Table Top | 5.9" TO 25.98" | 5.9" TO 25.98" |
| 4 Axis Table Rotation | Full Contouring .001 360000 Degrees | Full Contouring .001 360000 Degrees |
| Coolant Thru High Pressure | No | No |
| Tool Probe/Auto Tool Length Measurement | Yes | Yes |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 1417, 1417, 1417 IPM | 1417, 1417, 1417 IPM |
| Chip Conveyor | YES | YES |
| Control | CNC (MAZATROL SMOOTH G) | CNC (MAZATROL SMOOTH G) |
| Weight | 15,600 LBS | 15,600 LBS |
