NEW 2025 DOALL DCDS-600S

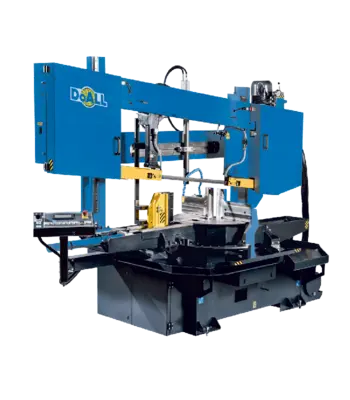

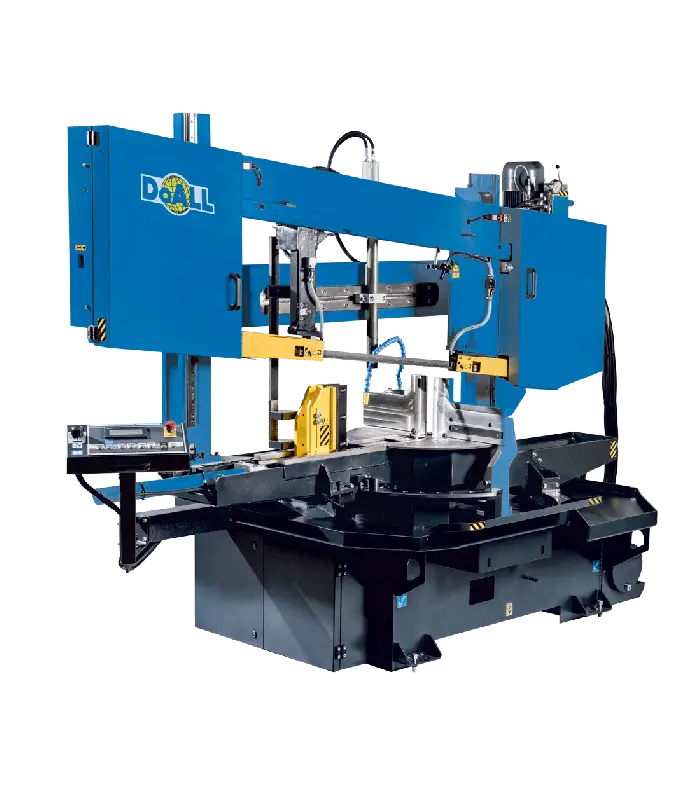

DOALL Horizontal Mitering Band Saw Model DCDS-600SA-A, Machine Capacity: w 24” x h 17" (600mm x 440mm); Round Tube: 18.5" (470mm); Solid Tube: 8" (205mm)
A wide variety of materials can be easily turned into parts, including, but not limited to, structural materials, stainless and tool steel. The DoALL DCDS-600SA band saw has a Mitsubishi touch screen display controller for easy operation. The operator is isolated from the sawing operations, which reduces the likelihood of injury on the job.

This hydraulically controlled dual column, semi-automatic metal cutting band saw has a double-swivel head that is able to miter/angle cut at 60° both left and right. The saw blade is set at 7° cantilever, allowing for more efficient cutting. The DCDS-600SA is the ideal machine for a fabricator cutting multiple angles in the same work piece. The DCDS-600SA offers high loading capacity and a variety of optional accessories to configure the machine to meet nearly any application.
About Us
DoALL was founded in 1927 by Leighton A. Wilkie. Wilkie invented and manufactured the first metal cutting band saw in 1933.
With over 90 years of manufacturing history in the Minneapolis, MN area, the DoALL brand has been known for innovation from day one. With the most complete line of band saws, band saw blades, and coolant products in the industry, DoALL offers industrial sawing machines for high production, general-purpose, miter cutting, vertical contour, and custom engineered sawing solutions.

It's our goal to improve cutting methods by creating top-of-the-line metal-cutting technologies that act as solutions for manufacturers, engineers and designers of all industries.

Machine Specs:
Saw Blade: Width x Length - 1-1/4" x 238"
Band Drive: Motor HP - 5 HP
Band Speed - 65-328 fpm
Band Tension - Hydraulic
Hydraulic System: Motor Hp - 3.8 Hp
Reservoir Size - 6 Gallon
Coolant System: Flood - Yes
Mist Lubricator – Yes
Motor Hp - 0.16 Hp
Reservoir Size - 8 Gallon
Indexer:
Length per Stroke - N/A
Maximum Index Strokes Length - N/A
Remnant Length - N/A
Floor Space Dimensions: W x L X H - 115" x 70" x 85"
Material Pass Height - 31.5"
Machine Weight - 3,715 lbs.
Electrical:
Voltage Requirement - 460V-60Hz-3ph, Wye configuration
Total Amp Draw (FLA) 11 Amps
Warranty
One-year parts and service subject to the terms and conditions.
Optional 10-year warranty available (Doall Cut Above 10 Year Warranty Annual Investment).

Standard Features: Front and Rear Vise Nesting, Mist-Style Band Lubrication, Mitsubishi Digital Controls
Hydraulic dual swivel head to 60 left to 60 degrees right
Semi-automatic cycle
Movable console with Mitsubishi controls
Rapid head down approach
Carbide faced saw guide inserts
Programmable material height sensor
Full stroke hydraulic vise
Driven band cleaning brushes
Infinite band speed controlled by variable frequency drive
Automatic movable guide arm setting
Cast Steel band wheels
Feed Rate/Feed Force
Vertical hold down
Laser line generator
Hydraulic band tension
Recirculating coolant system
Mist band lubricator system
Digitally displayed angle position with hydraulic lock
Variable Vise Pressure
LED work light
7 degree cant design
Saw blade guards
Band door interlocks
Operation and parts manuals on USB stick
Recommended band speed chart
One (1) complimentary DoALL Bi-Metal saw blade
Complimentary DoALL Cutting Fluids package
