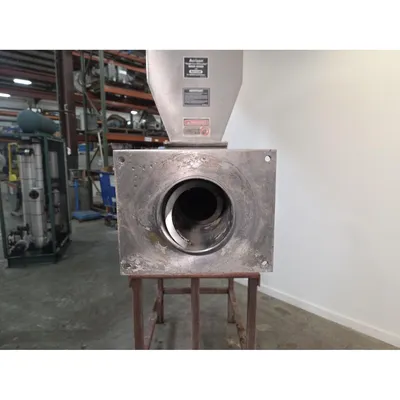

USED ACRISON INC. 402B-4500-250-450-105Z-M/2

Model 402B-4500-250-450-105Z-M

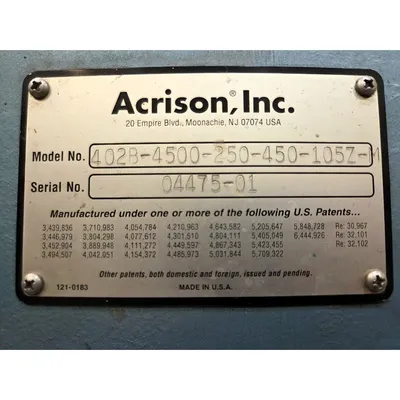

Serial No: 04475-01

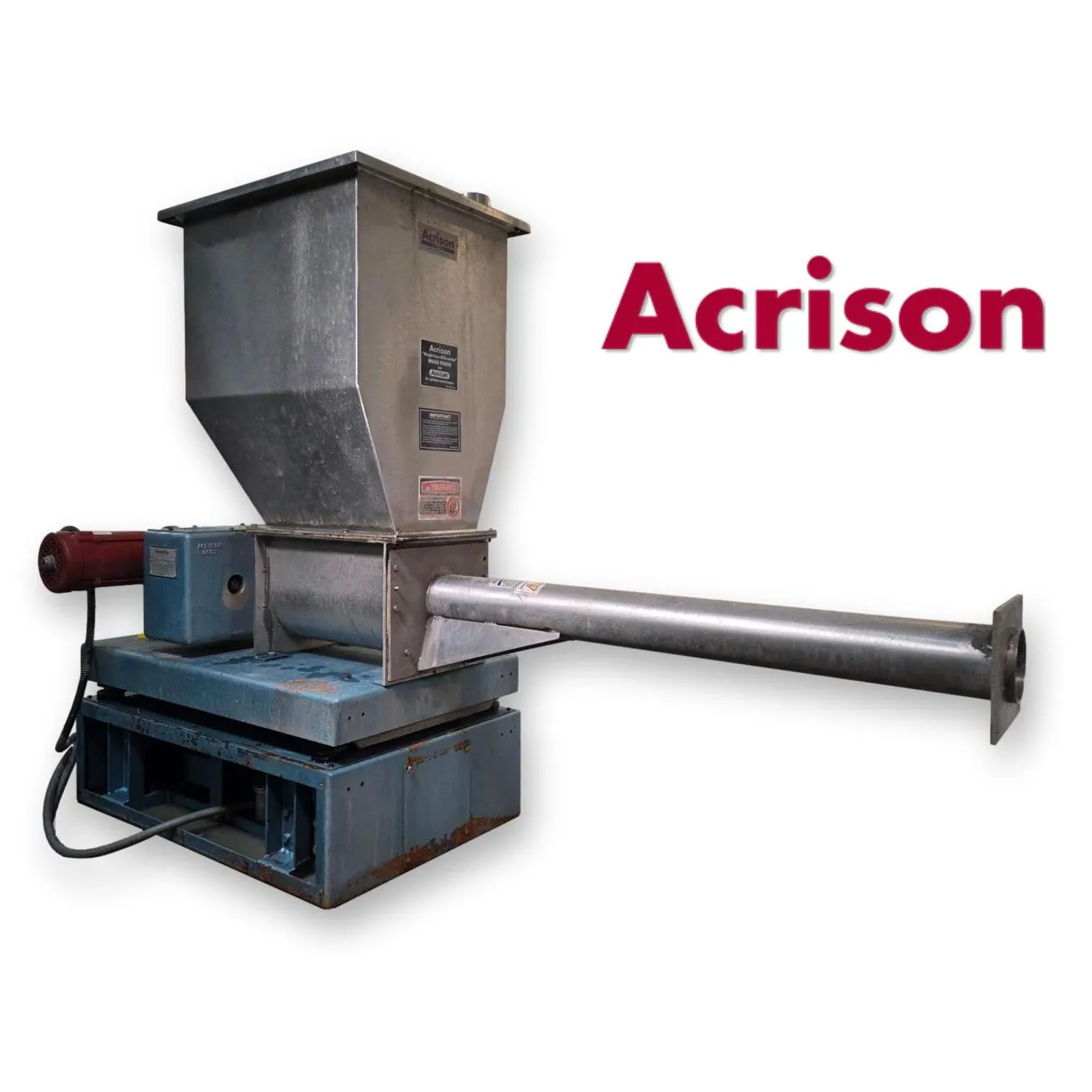

For batch weigh or continuous feeding for dry solid materials.
Six cubic foot product loading hopper with 8"Ø inlet & 4" vent port.

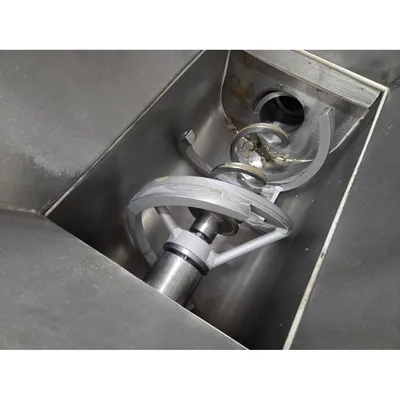

4"Ø metering screw with hopper overwrap helical bars.
4.5" O.D. auger extension tube, 44.5" long, missing downspout.

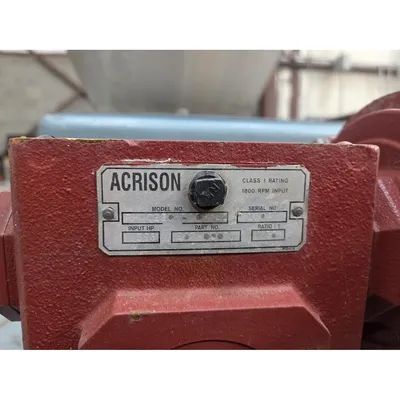

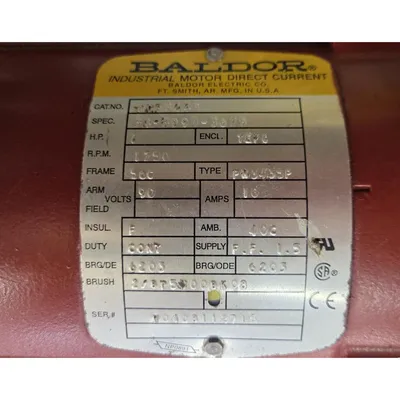

Auger is powered by a 1HP variable speed D.C. gearmotor (30:1 ratio).

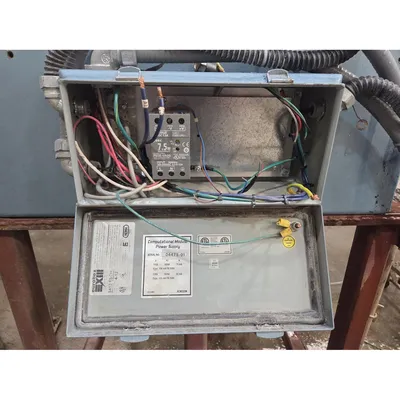

Electrical Supply: 115V, 60Hz, 1PH at 15 AMPS

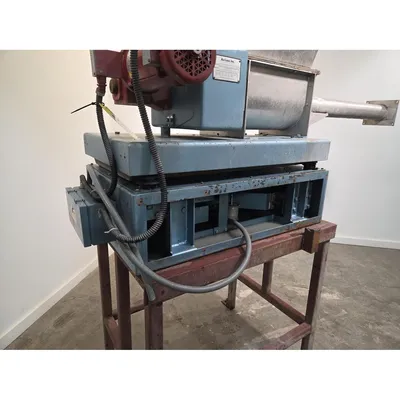

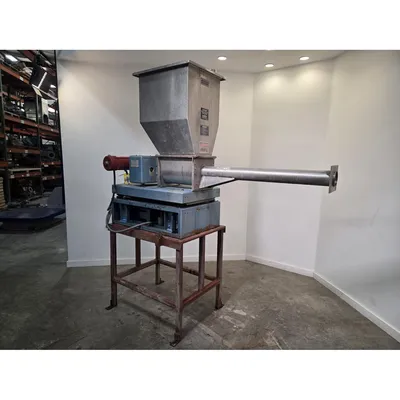

Bolted to a 38" tall mild steel support stand.
Hard copy operator manuals with drawings & schematics on file.
Feeder is missing a required BC-702 Batch Controller for operation.
Overall dimensions w/ stand: 35" x 93" L x 98" H.
Weight = 1,395 LBS.

FOB: Millwood, WV 25262

Item: 21530      Model :   402B-4500-250-450-105Z-M/2
 MFG: Acrison Inc.
 Diameter (inches): 4
