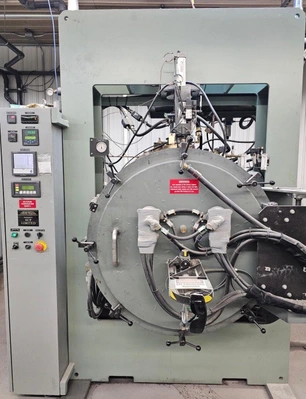

USED 2018 SCP LIMITED 50 TON

Maximum Temperature:
• 2000°C
• Power: 480VAC 3-Phase / 267FLA
Hot Zone:
• 19” Wide x 21” Deep x 14” Tall
• Ram Window: 10.4”-16.0” (Down – Up)
• 2” Graphite Insulation Board

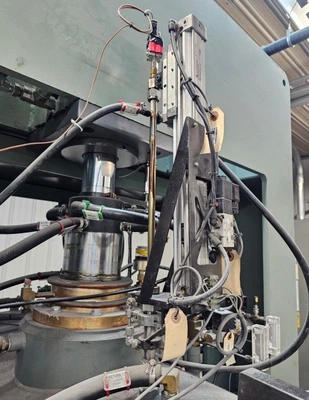

• 5” Diameter Iso-pressed graphite rams
• Four elements / Four sided heating
Vessel Atmosphere Control Modes:
• Roughing Vacuum Operation
• Partial Pressure Operation
• Atmosphere (positive pressure) up to approximately 0.5 PSI with maximum flow rate of 1 LPM.

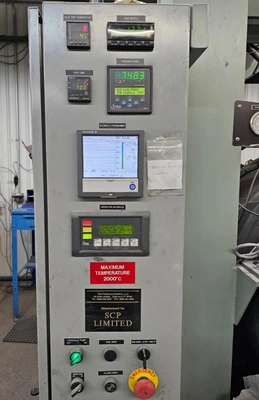

Controls:
• Yokogawa GX10 Program Controller and Datalogger
o Network enabled
• Fluke Endurance Series Pyrometer
o Thermal Operation above 1300C
• Type C Thermocouple
o Control and Over-temp
o Automatic retraction
• MKS PDR900 Vacuum Controller
o MKS 910 DualTrans Transducer
• Digital Ram Movement Encoder
o Accuracy to nearest .001”
• VPN Modem for remote diagnostics with furnace manufacturer
Features:
• Exhaust check valve
• Exhaust bubbler
• 0-9 Automatic pump down and backfill cycles prior to program start.
• Automatic leak check prior to program start.
• Stokes 149 Piston pump
• Edwards EH250 Roots Blower
• Ultimate pump down can reach below 100mTorr
• Cold Trap w/ Filters for vacuum and exhaust operation.
o Liquid Nitrogen can be used
• 120KW Power Supply
