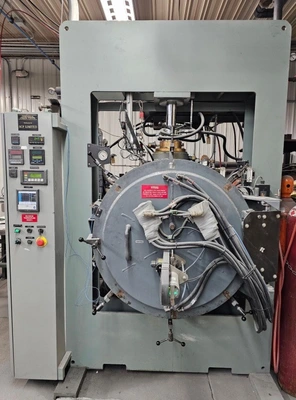

USED 2016 SCP LIMITED 50 TON

Maximum Temperature:
2000°C
Power: 480VAC 3‑Phase / 264 FLA

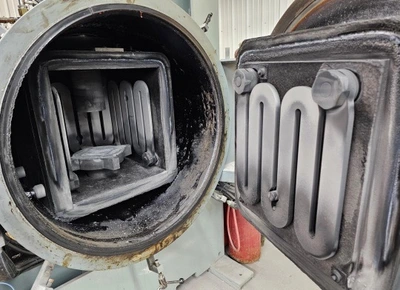

Hot Zone:
14″ wide x 16″ deep x 14″ tall
Ram window: 9.75″–15.75″ (top ram down–up)
2″ graphite insulation board
5″ diameter iso‑pressed graphite rams
Four elements / four‑sided heating
Vessel Atmosphere Control Modes:
Roughing vacuum operation
Partial pressure operation
Atmosphere (positive pressure) up to approximately 0.5 PSI with maximum flow rate of 1 LPM

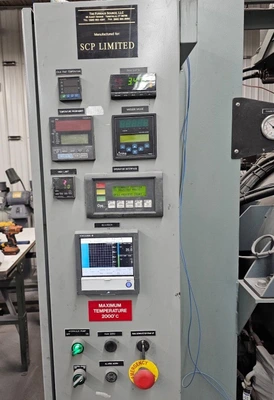

Controls:
Yokogawa GX10 program controller and datalogger (network enabled)

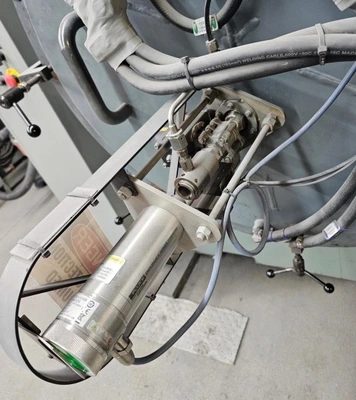

Fluke Endurance Series pyrometer (thermal operation above 1300°C)
Type C thermocouple (control and over‑temp, automatic retraction)
MKS PDR900 vacuum controller with MKS 910 DualTrans transducer

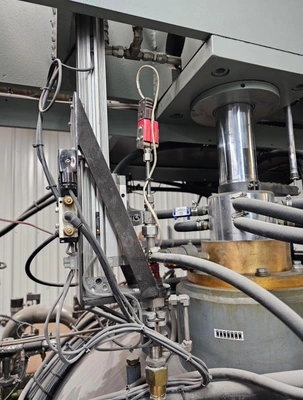

Digital ram movement encoder, accuracy to nearest 0.001″
VPN modem for remote diagnostics with furnace manufacturer
Features:
Exhaust check valve
Exhaust bubbler
0–9 automatic pump down and backfill cycles prior to program start
Automatic leak check prior to program start
Stokes 148 piston pump
Edwards EH250 roots blower
Ultimate pump down can reach below 100 mTorr
Cold trap with filters for vacuum and exhaust operation (liquid nitrogen compatible)
120 kW power supply
