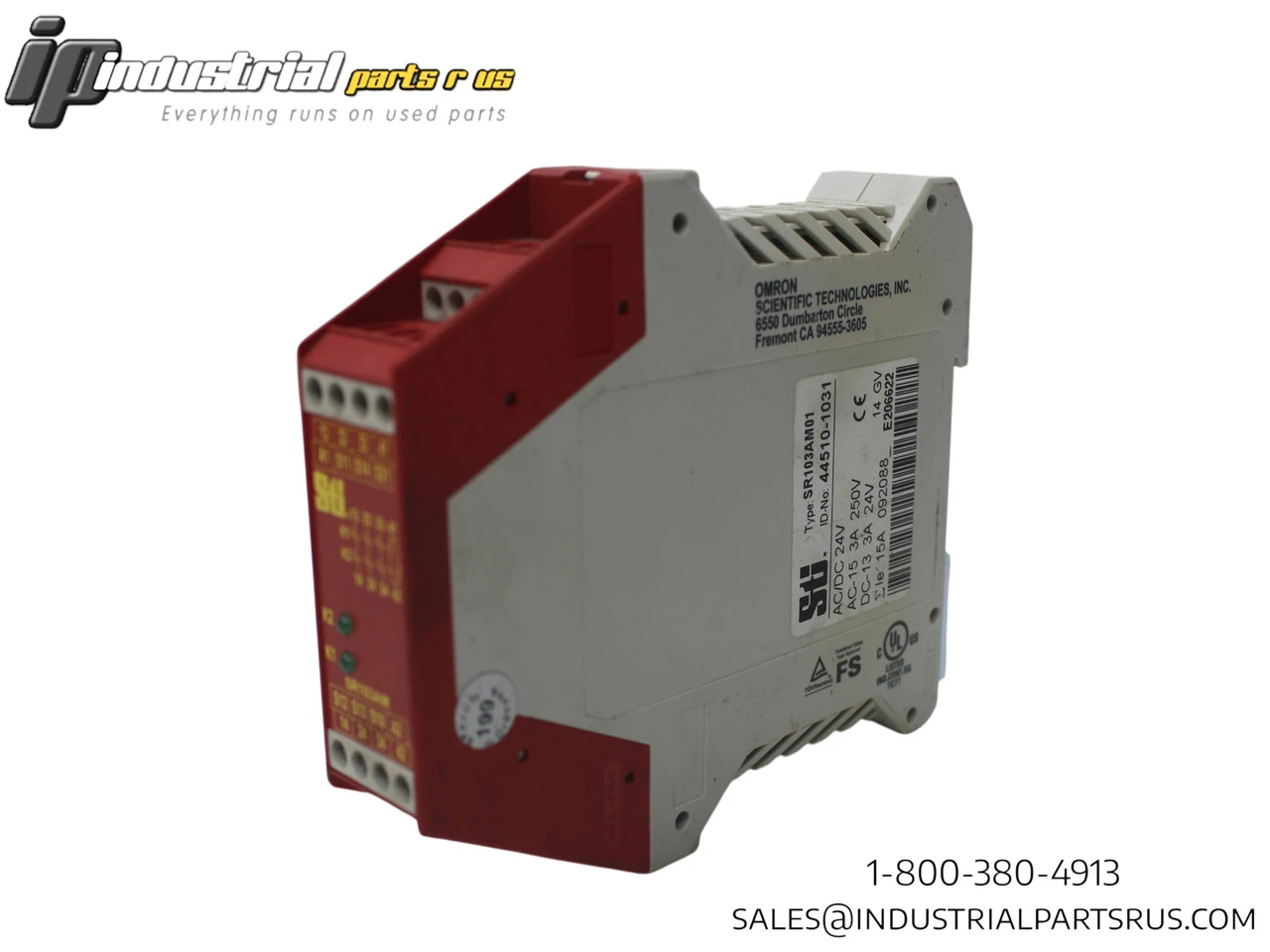

USED STI SR103AM01

The STI SR103AM01 is a dual-channel safety monitoring relay designed for industrial safety applications
.
This relay provides 3 N/O outputs to route power to the coils of power contactors, plus 1 N/C auxiliary output for signaling purposes, with External Device Monitoring (EDM) provided with a N/C loop
.
It features DIN rail mounting and operates at 24VAC/DC supply voltage
.
Specification
Value
Brand
STI
Model/Part Number
SR103AM01
Product Type
Safety Relay
Coil Voltage
24V AC/DC
Input Type
1 N/C or 2 N/C or 2 solid state
Safety Outputs
3 N/O
Auxiliary Output
1 N/C
Contact Rating AC
3A @ 230VAC (AC-15)
Contact Rating DC
2A @ 24VDC (DC-13)
Power Consumption
Approx. 1 VA
Max Input Resistance
800 Ohms per channel
Mounting Type
35mm DIN Rail
Enclosure Rating
IP20 / IP40 / NEMA 1
Operating Temperature
-15°C to +40°C
Reset Mode
Monitored manual or automatic/manual
Impulse Withstand Voltage
2500V
Weight
230g (8.1 oz)
Color
Red
Part Number (STI)
44510-1031
We warranty all items for 30 days from date of purchase.

SKU: AI0104
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 6.00
(in)
Height: 7.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: United States
Amperage: 3A
GTIN: 679523686161
Current Rating: 3A
Manufacturer: STI
Part Number: SR103AM01
Shelf: F-19 Tub 2
Model: SR103AM01
Coil Voltage: 24V AC/DC
MPN: SR103AM01
Type: Safety Relay
