14" Spindle Bore and Bar Capacity
(2) 31" Manual 4 Jaw Chucks from Front & Rear of Spindle
Chip Conveyor
Tailstock

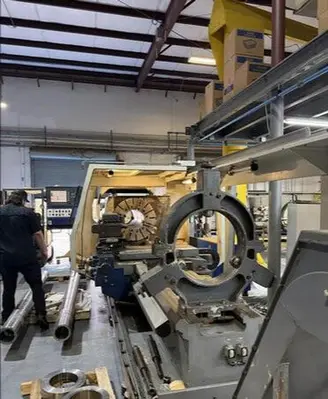

Steady Rest
Remote Jog Handle
Threading Cycle
4 Station Indexable

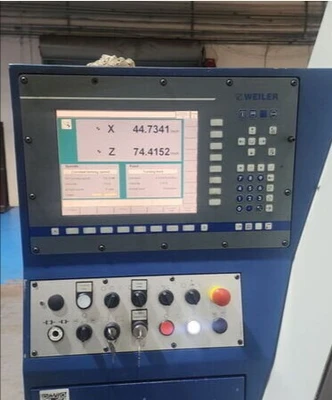

Machine Control: Weiler CNC Control (Siemens Type)

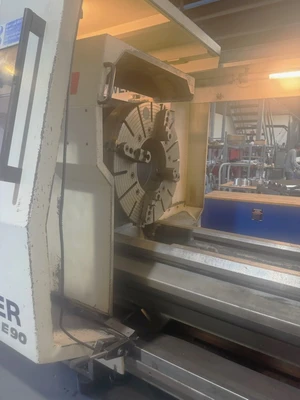

Chuck Size: 31" 4 Jaw Chuck / 31" 4 Jaw Rear
Swing over bed: 35.43"
Swing over cross slide: 20.87"
Distance between centers: 82"
Bed width: 23.62"
X axis travel: 23.23"
Z axis travel: 78.8"

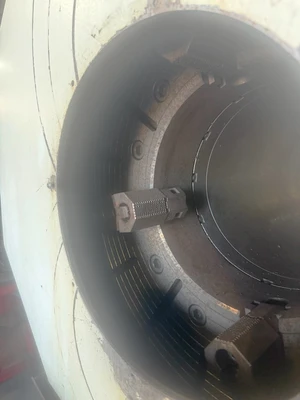

Spindle bore: 14"
Spindle Speeds: 500 RPM
Spindle Motor: 60 HP

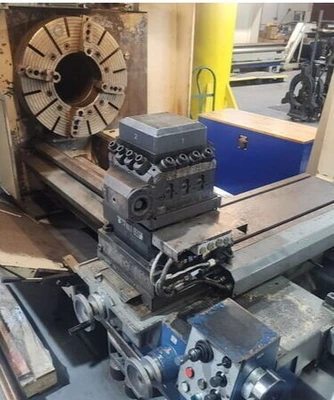

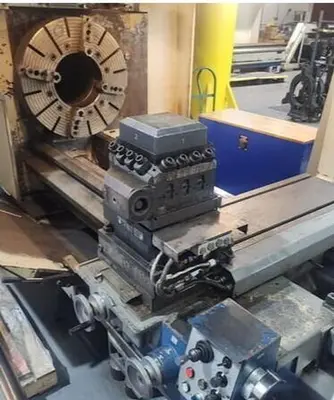

Turret type: 4 Position Tool Post
Tailstock quill diameter / stroke: 5.51" / 11.81"
Tailstock center: #6 MT
Machine dimensions: 205" x 102.36" x 91"
Machine weight: 21,250 lbs.
